Rear Door Glass Regulator: On-Vehicle Repair: Removal

1. Remove the rear door finisher. Refer to [DOOR FINISHER: REMOVAL AND INSTALLATION ]
2. Position aside the vapor barrier.
3. Remove the inside seal.
4. If equipped, temporarily reconnect the power window switch.
5. For power windows, operate the power window switch to raise/lower the door window until the glass bolts can be seen.

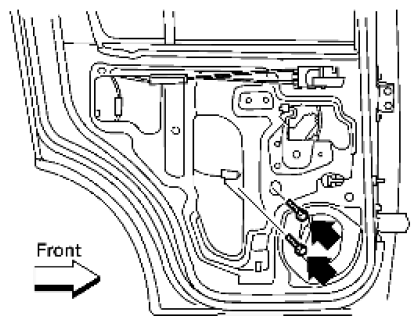

   Fig 1: Locating Rear Door Glass Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
6. For manual windows, temporarily reinstall the window crank handle and lower the window until the glass bolts can be seen.
7. Raise the rear door glass and hold it in place with suitable tool (A).

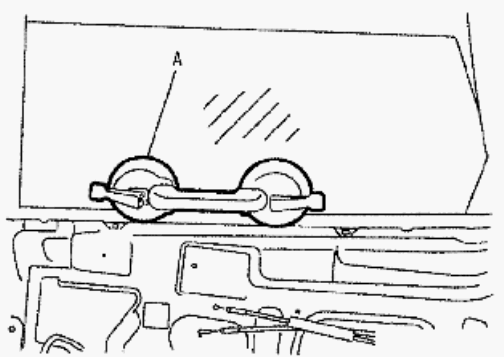

   Fig 2: Identifying Rear Door Glass & Suitable Tool (A)

   Courtesy of SUZUKI OF AMERICA CORP.
8. Remove the bolts and the regulator assembly.
   • If equipped, disconnect the connector from the regulator assembly.

SEC.823

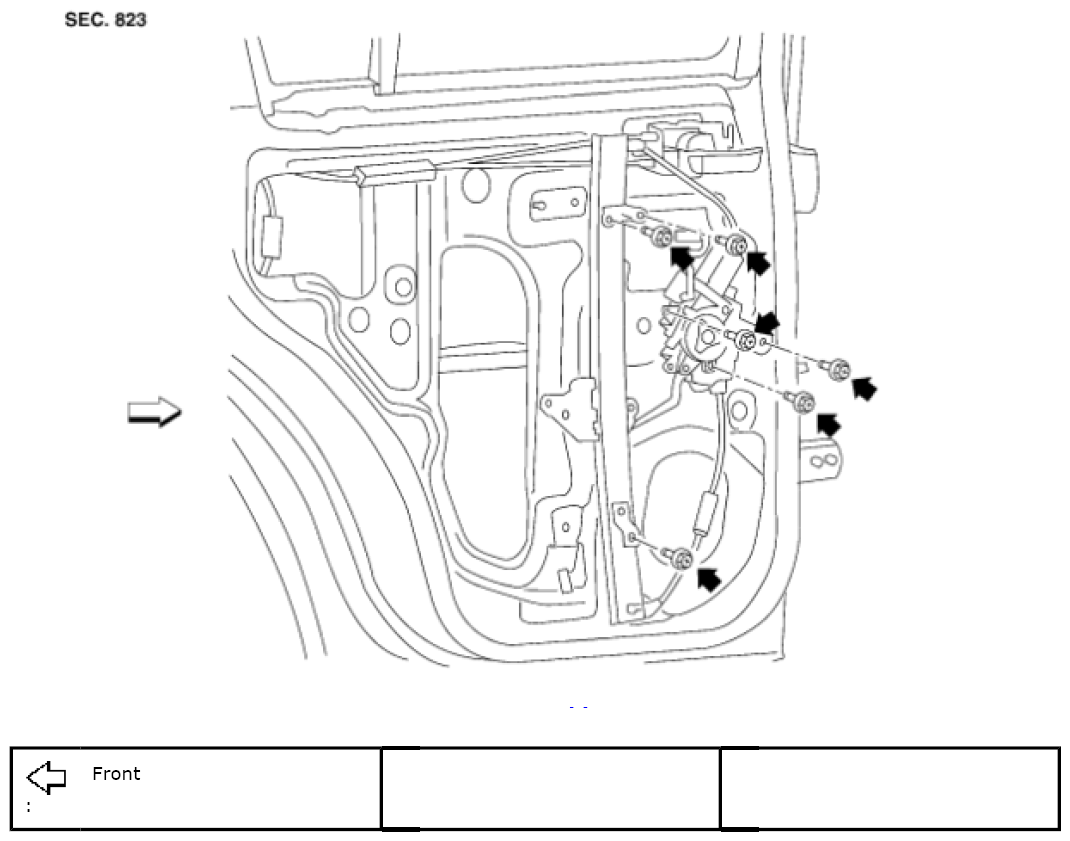

Fig 3: Locating Front Regulator Assembly Bolts

Courtesy of SUZUKI OF AMERICA CORP.
