Front Door Glass: On-Vehicle Repair: Removal

Remove the front door finisher. Refer to [DOOR FINISHER: REMOVAL AND INSTALLATION ]
Position the vapor barrier aside.
If equipped, temporarily reconnect the power window switch.
For power windows, operate the power window switch to raise/lower the door window until the glass bolts can be seen.

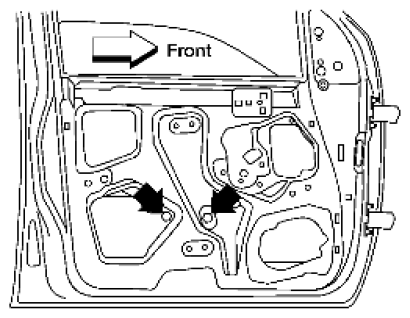

Fig 1: Locating Front Door Glass Bolts
Courtesy of SUZUKI OF AMERICA CORP.
For manual windows, temporarily reinstall the window crank handle and lower the window until the glass bolts can be seen.
Remove the glass bolts.
While holding the door window, raise it at the rear and pull the glass out of the sash toward the outside of the door.

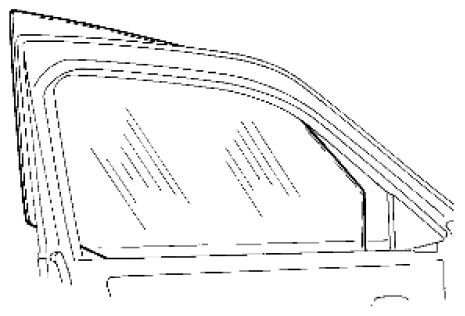

Fig 2: Pulling Glass Out Of Sash
Courtesy of SUZUKI OF AMERICA CORP.
