Diagnosis Procedure

Regarding Wiring Diagram information, refer to [POWER WINDOW SYSTEM: WIRING DIAGRAM [KING CAB] ], [POWER WINDOW SYSTEM: WIRING DIAGRAM [CREW CAB] ].

Step	Action	YES	NO

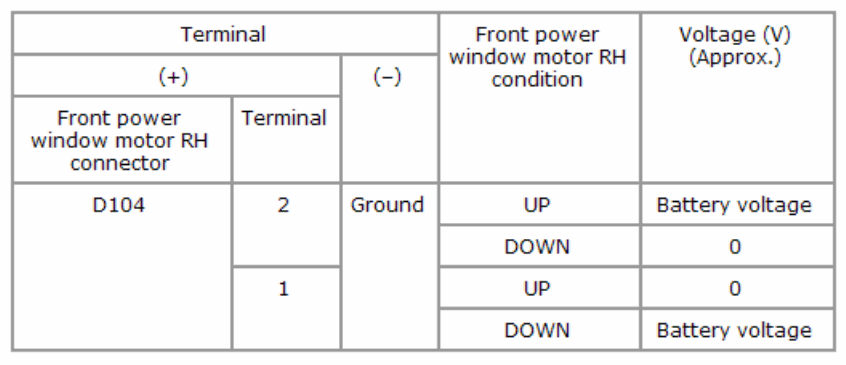

1	CHECK FRONT POWER WINDOW SWITCH RH OUTPUT SIGNAL  Disconnect front power window motor RH. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 2. Turn ignition switch ON. 3. Check voltage between front power window motor RH connector and ground. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. Is the measurement value within the specification?	GO TO 3	GO TO 2

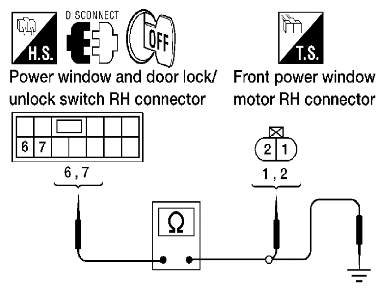

2	CHECK HARNESS CONTINUITY  Turn ignition switch OFF. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 2. Disconnect power window and door lock/unlock switch RH. 3. Check continuity between power window and door lock/unlock switch RH connector and front power window motor RH connector. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 4. Check continuity between power window and door lock/unlock switch RH connector and ground. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. Is the inspection result normal?	Replace power window and door lock/unlock switch RH. Refer to [FRONT POWER WINDOW SWITCH: REMOVAL AND INSTALLATION ].	Repair or replace harness.
3	CHECK FRONT POWER WINDOW MOTOR RH  Check front power window motor RH. Refer to [Component Inspection ]. Is the inspection result normal?	Check intermittent incident. Refer to [SERVICE INFORMATION FOR ELECTRICAL INCIDENT: INTERMITTENT INCIDENT ]	Replace front power window motor RH. Refer to [FRONT DOOR GLASS REGULATOR: ON-VEHICLE REPAIR ].
