Immobilizer System Antenna Amp.: Removal and Installation: Removal

  1. Disconnect the battery negative terminal. Refer to [BATTERY: REMOVAL AND INSTALLATION ]
  2. Remove the lower instrument panel LH. Refer to [BODY SIDE TRIM: REMOVAL AND INSTALLATION ].
  3. Remove the immobilizer system antenna amp bolt (A).

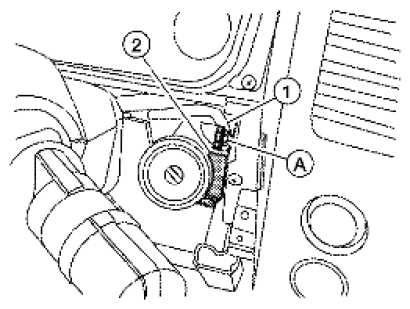

    Fig 1: Identifying Immobilizer System Antenna Amp, Electrical Connector And Bolt
    G06446751Courtesy of SUZUKI OF AMERICA CORP.
  4. Disconnect the electrical connector (1) and remove the immobilizer system antenna amp (2).
