2011
>>
Equator Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio Visual/Navigation
>>
Premium Audio (Crew cab)
>>
Schematic and Routing Diagram
>>
Audio System: System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Audio System: System Diagram

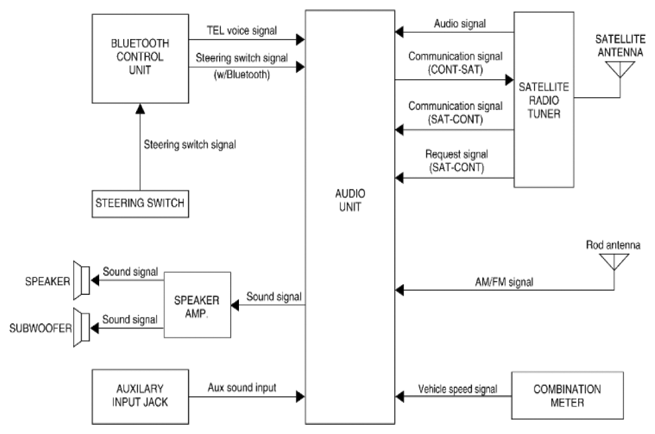

Fig 1: Audio System - System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
