Audio System: Component Parts Location

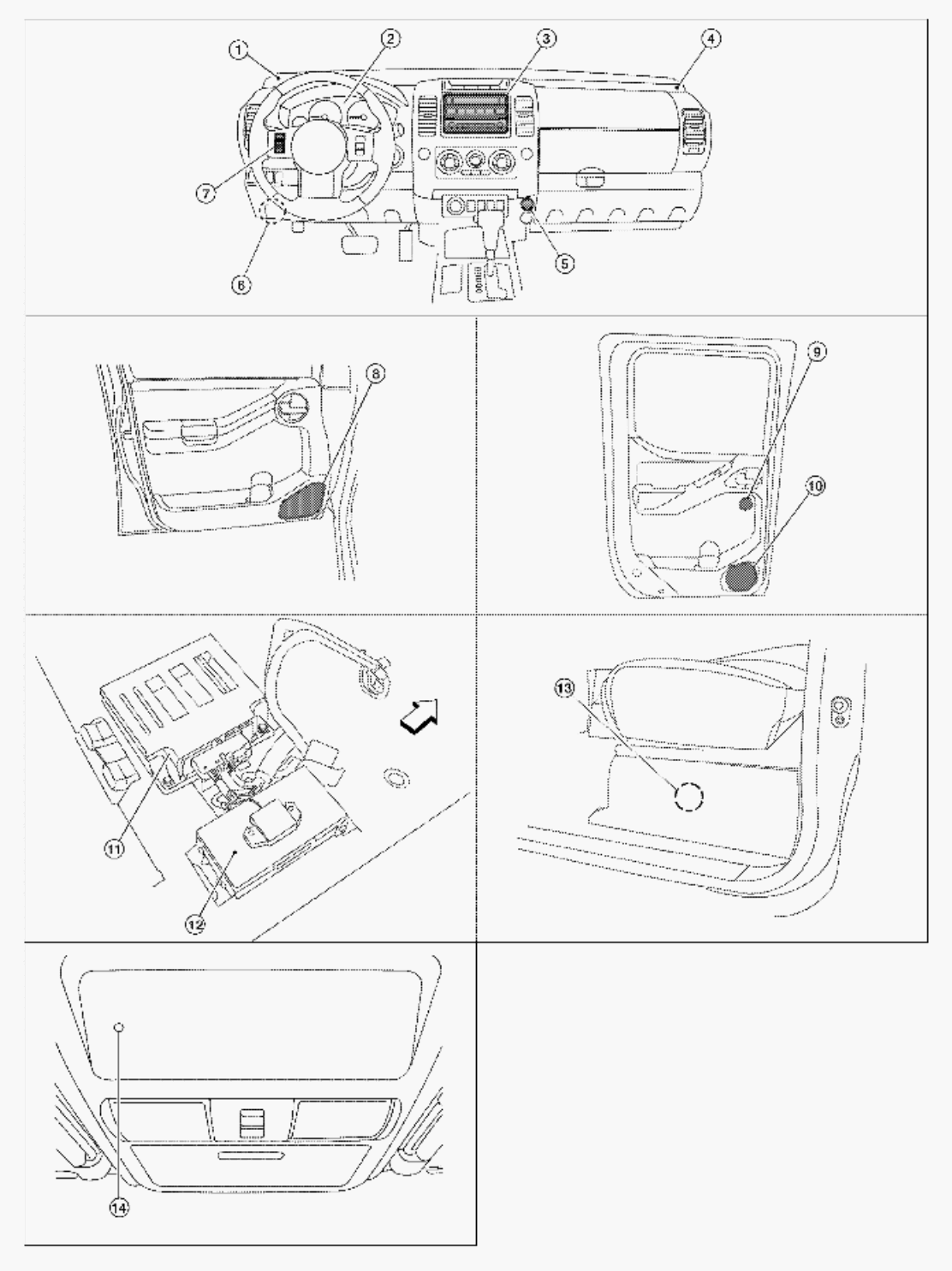

Fig 1: Identifying Audio System Component Parts Location (Premium Audio) (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.

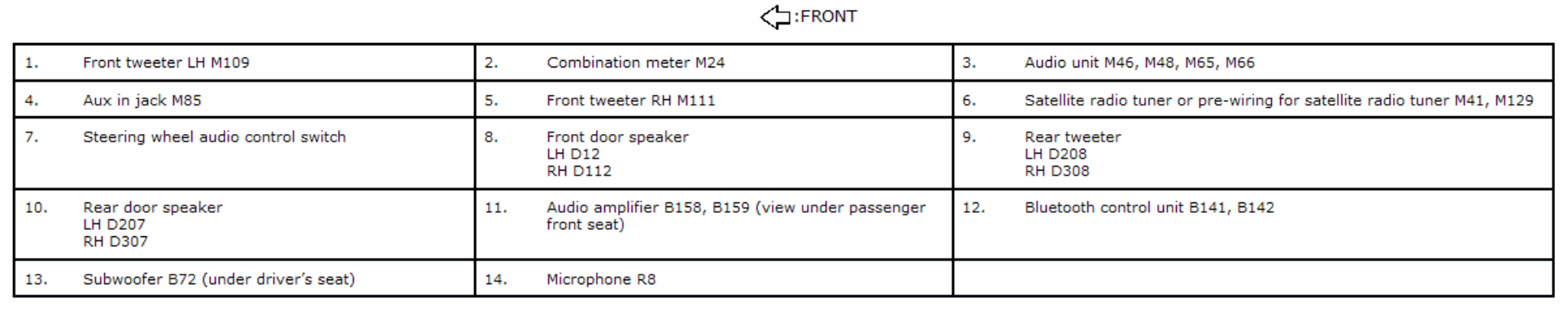

Fig 2: Identifying Audio System Component Parts Location (Premium Audio) (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
