Audio System: Component Parts Location

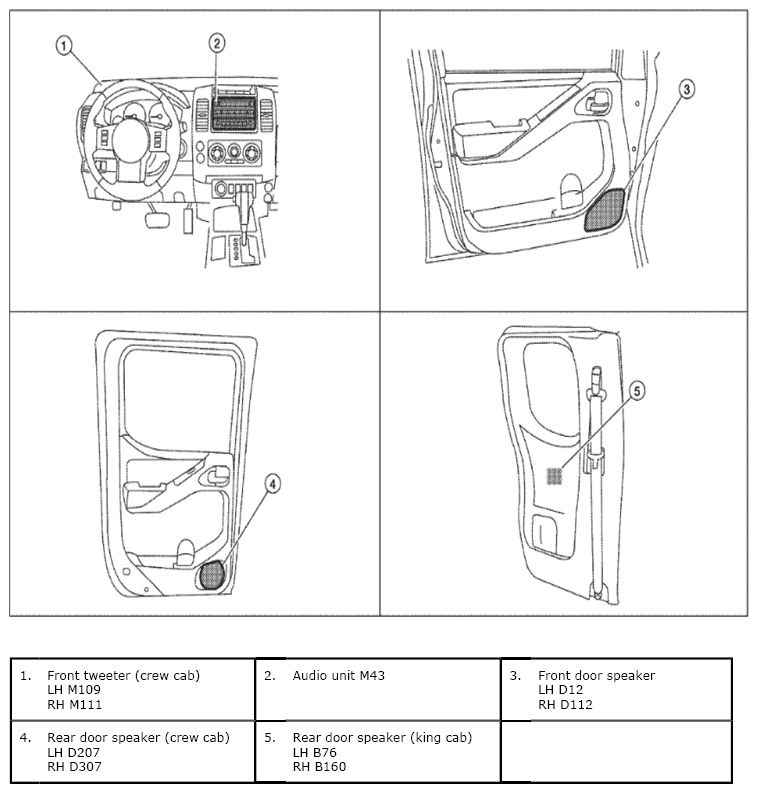

Fig 1: Identifying Audio System Component Parts Location
G06445404Courtesy of SUZUKI OF AMERICA CORP.
