DIAG On CAN: System Diagram

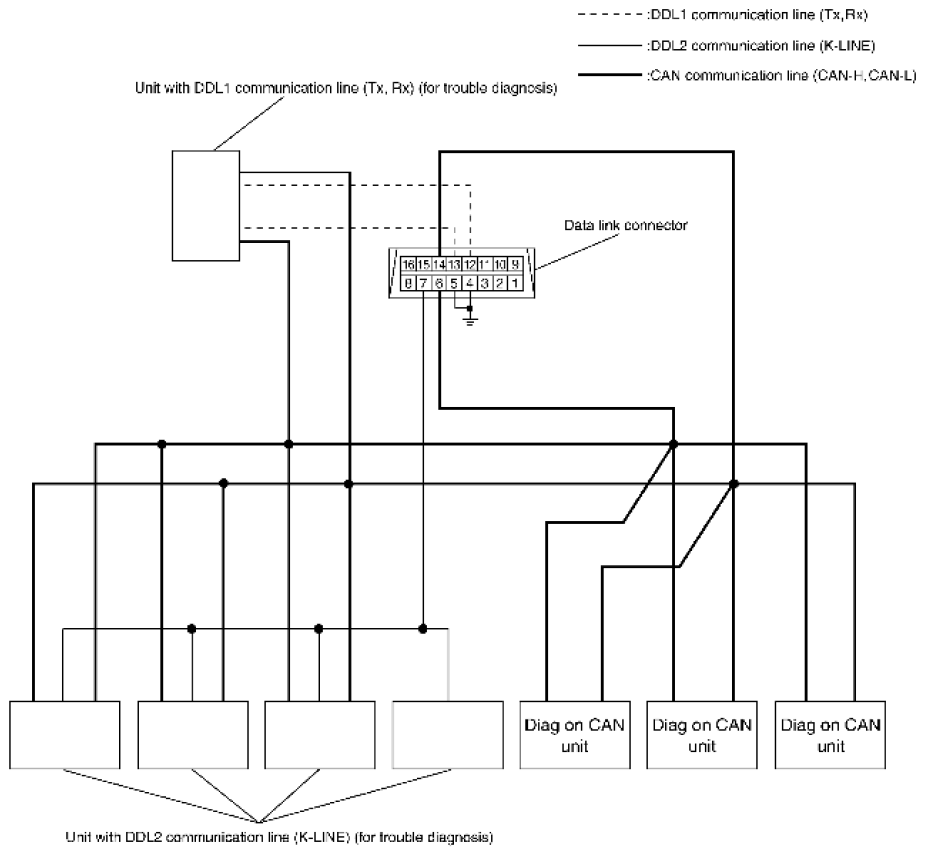

Fig 1: DIAG On CAN - System Diagram

Courtesy of SUZUKI OF AMERICA CORP.

HARNESS DESCRIPTION

Name	Harness	Description
DDL1	Tx Rx	It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling)
DDL2	K-LINE	It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling)
Diag on CAN	CAN-H CAN-L	It is used for trouble diagnosis and control.
