Vehicle Equipment Identification Information

NOTE: Check CAN system type from the vehicle shape and equipment.

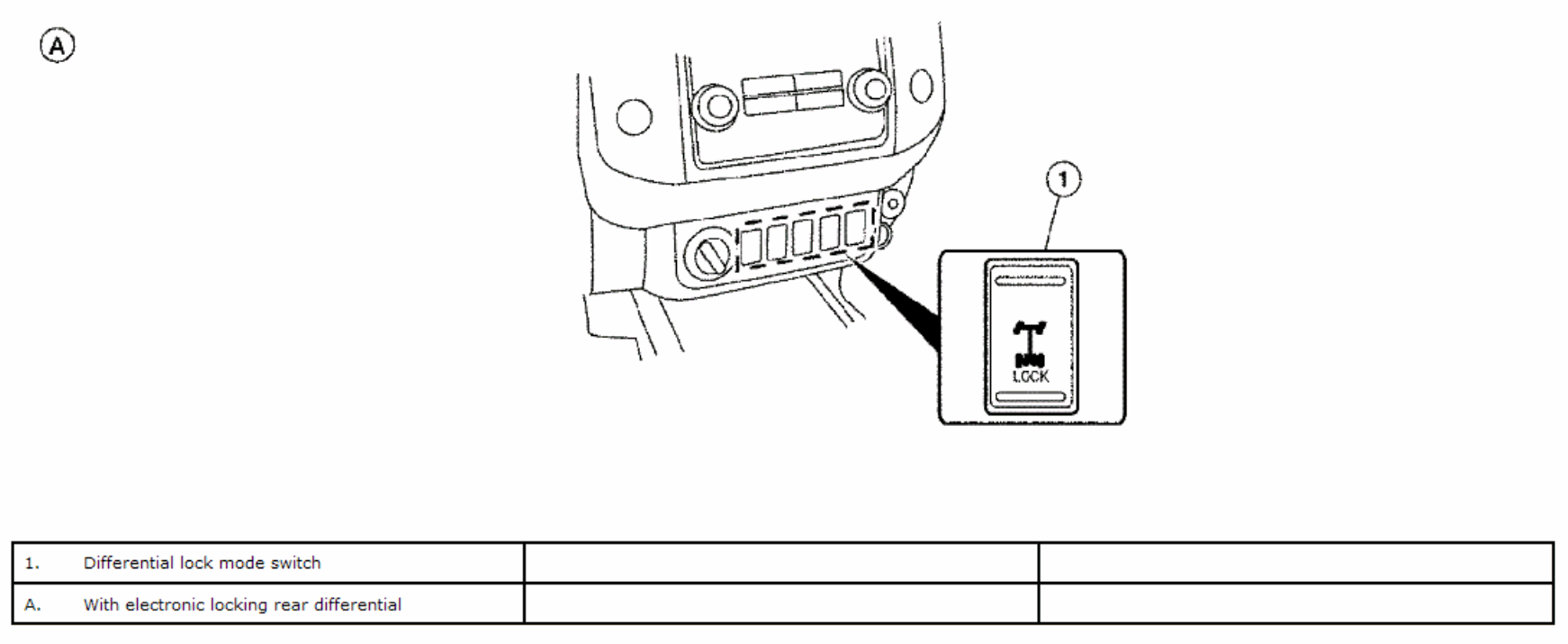

Fig 1: Identifying Differential Lock Mode Switch
G00518869Courtesy of SUZUKI OF AMERICA CORP.
