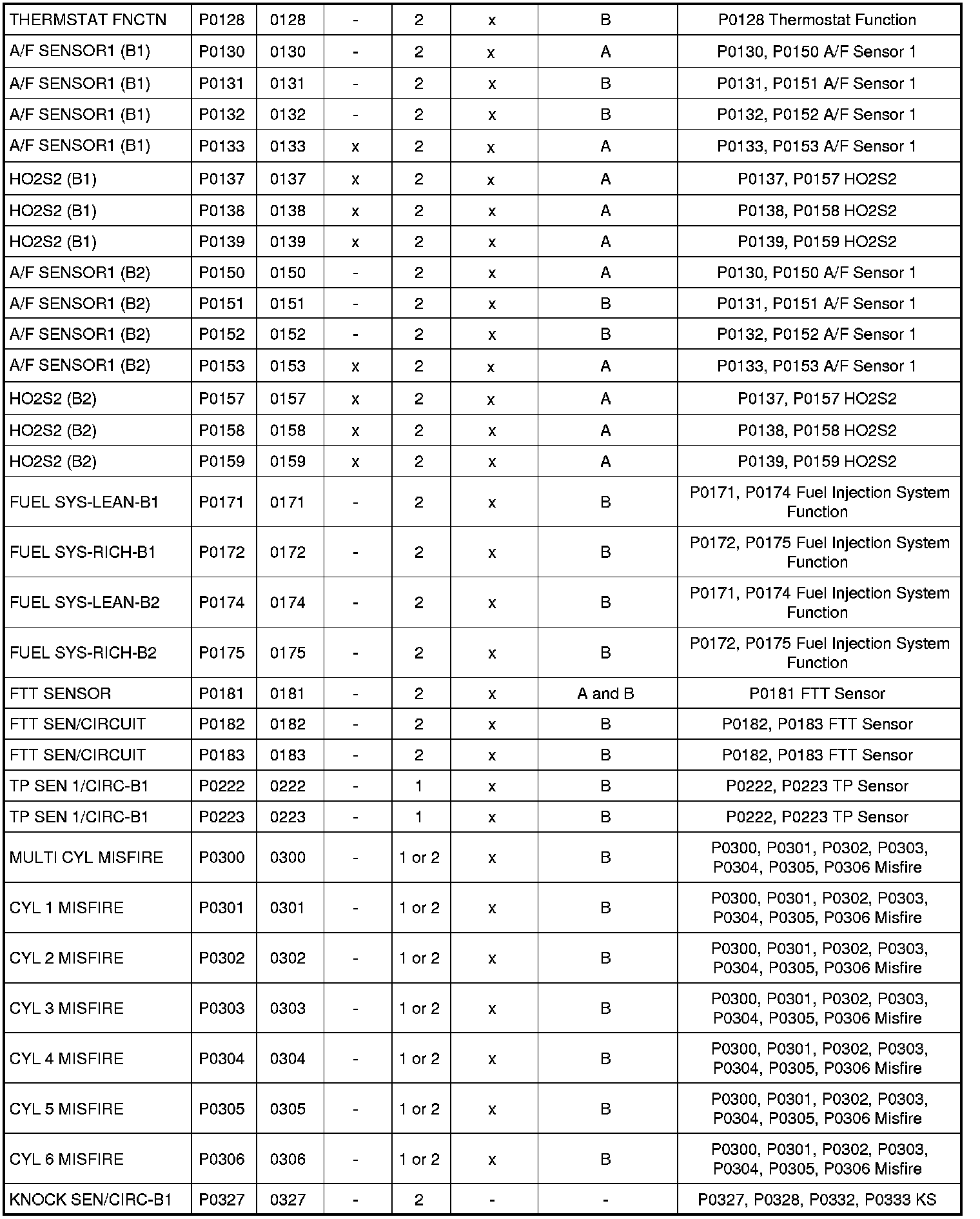

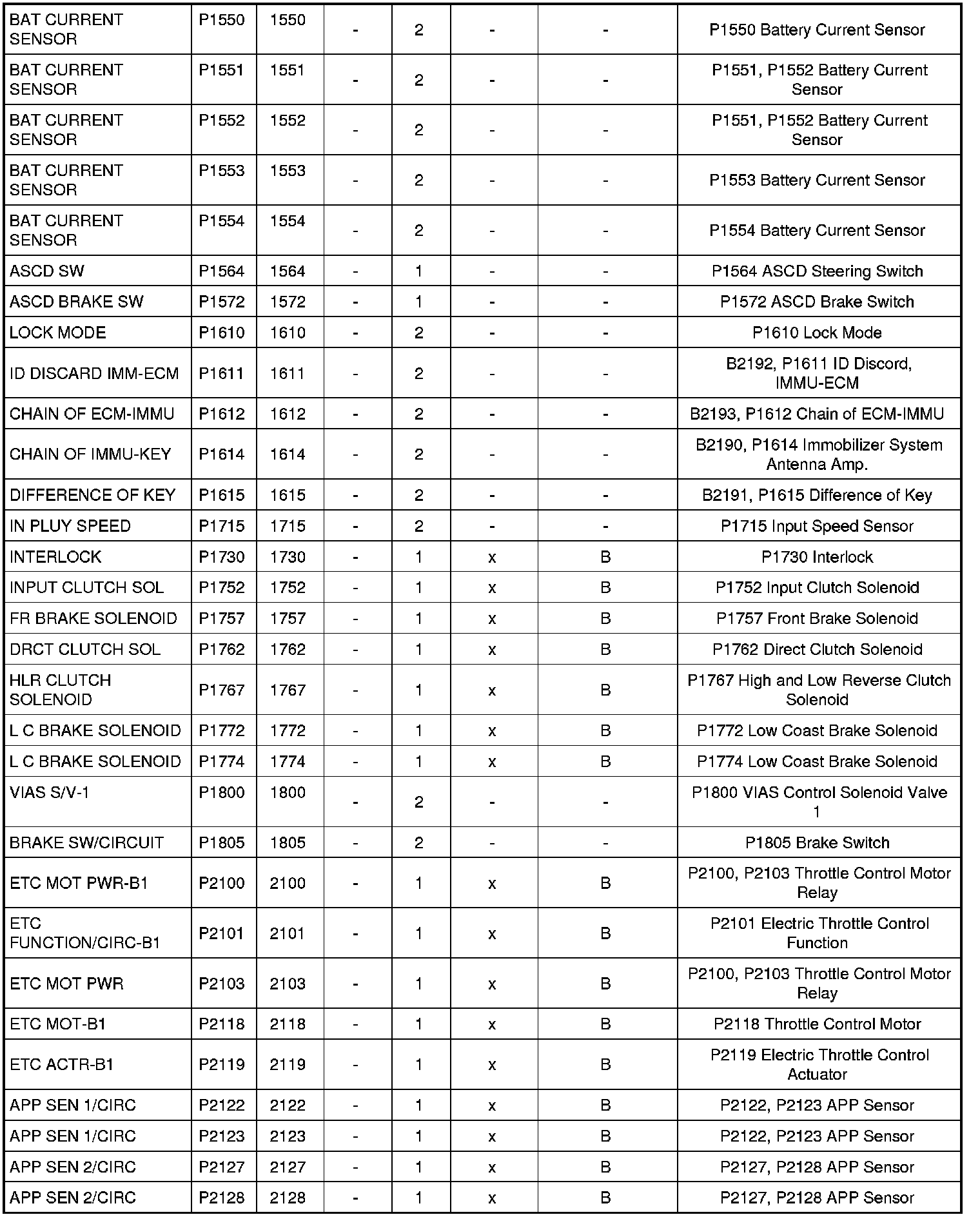

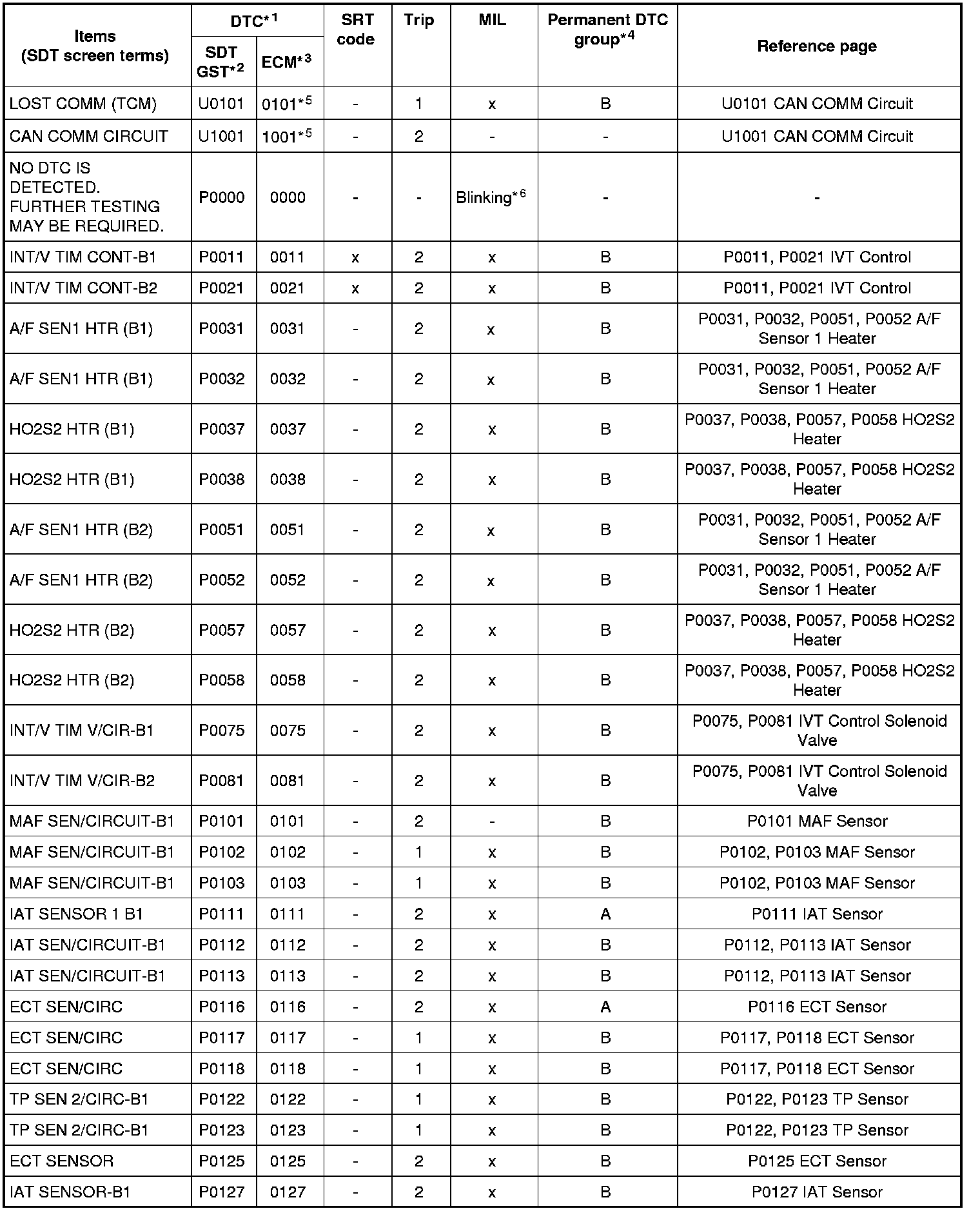

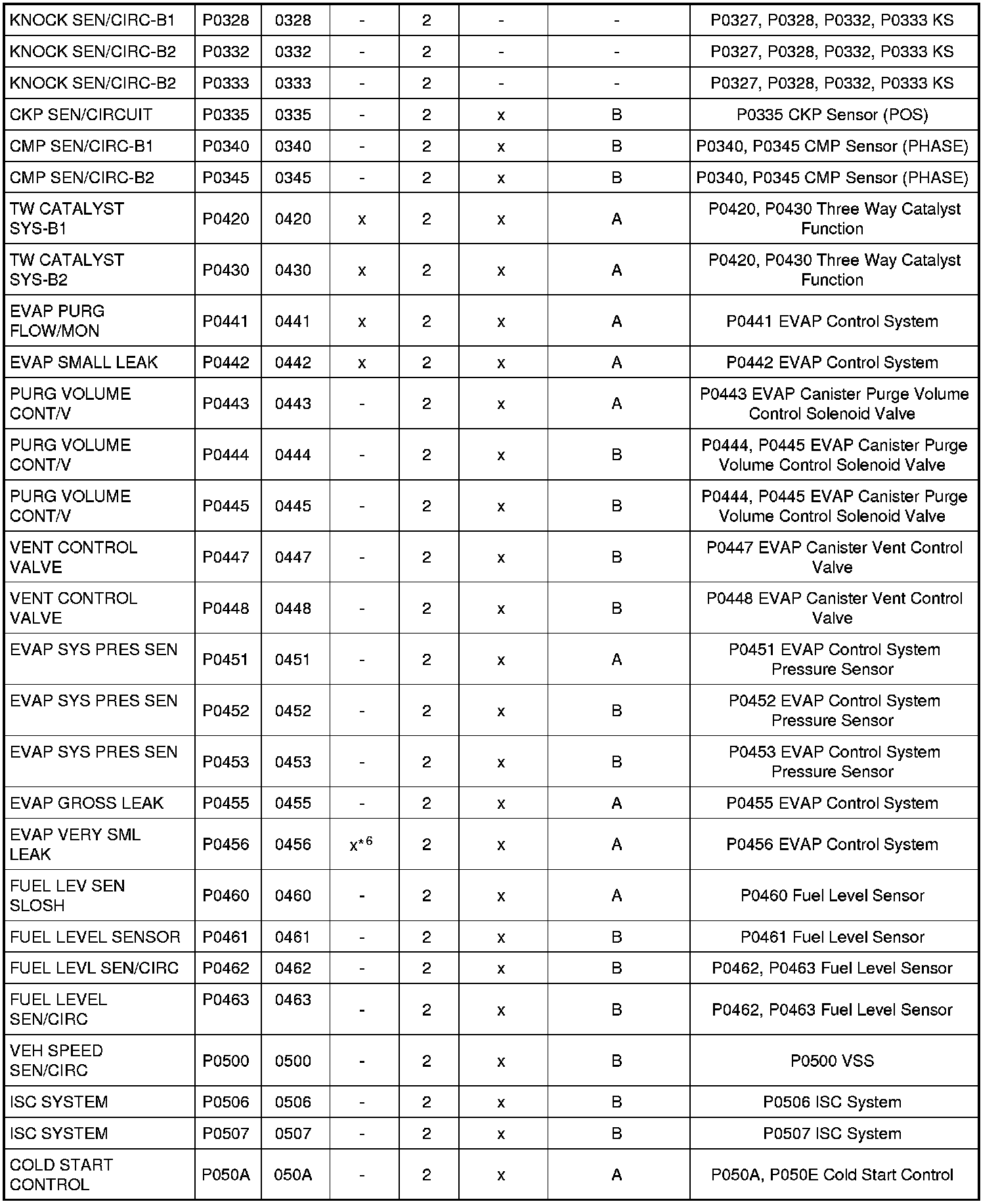

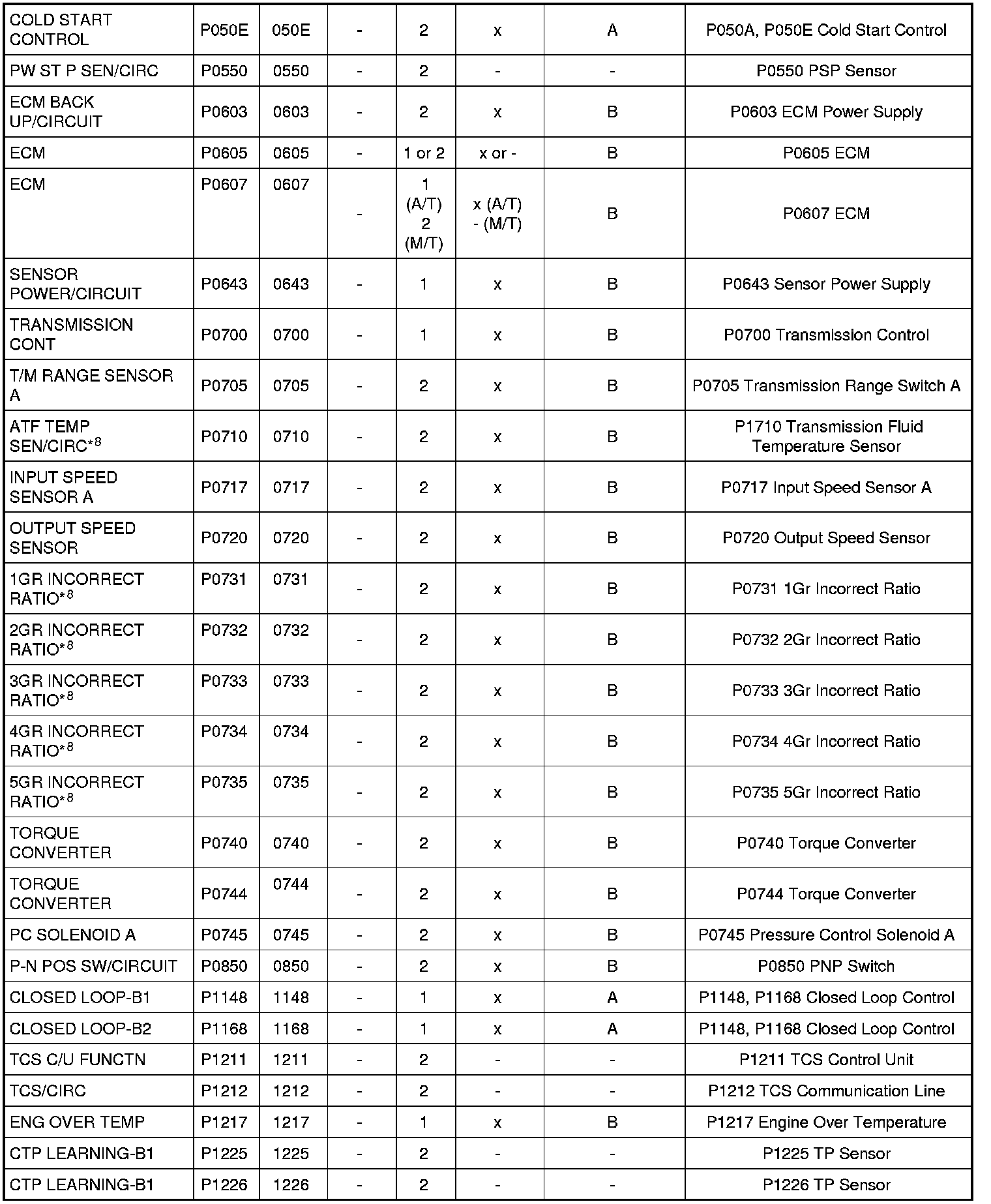

DTC Index ECM

DTC Index: ECM

Emission-Related Diagnostic Information Items

x: Applicable -: Not applicable


























*1: 1st trip DTC No. is the same as DTC No.

*2: This number is prescribed by SAE J2012/ISO 15031-6.

*3: In Diagnostic Test Mode II (DTC check).

*4:Refer to [How to Erase Permanent DTC] How to Erase Permanent DTC , "PERMANENT DIAGNOSTIC TROUBLE CODE (PERMANENT DTC)".

*5: The troubleshooting for this DTC need SDT.

*6: When the ECM is in the mode of displays readiness test, MIL may blink. For the details, refer to "How to Display Readiness Test".

*7: SRT code will not be set if the self-diagnostic result is NG.

*8: When erasing this DTC, always use SDT or GST.
