Tightening Torque of Standard Bolts

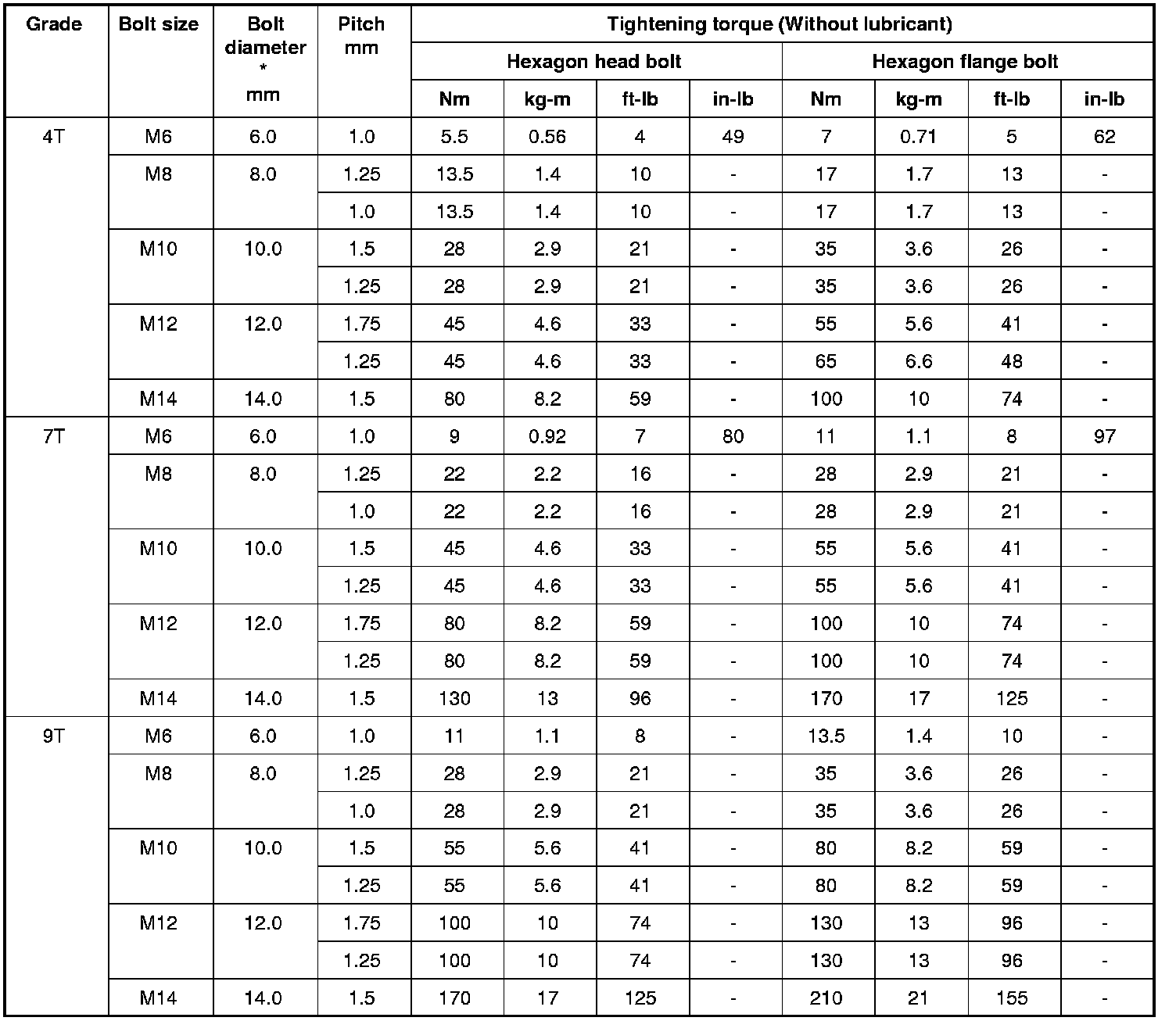

Tightening Torque of Standard Bolts: Tightening Torque Table
*: Nominal diameter
1 Special parts are excluded.
2 This standard is applicable to bolts having the following marks embossed on the bolt head.
Tightening Torque of Standard Bolts: Tightening Torque Table
*: Nominal diameter
1 Special parts are excluded.
2 This standard is applicable to bolts having the following marks embossed on the bolt head.
