DTC Check (with SDT)




DTC Check (with SDT)

Function

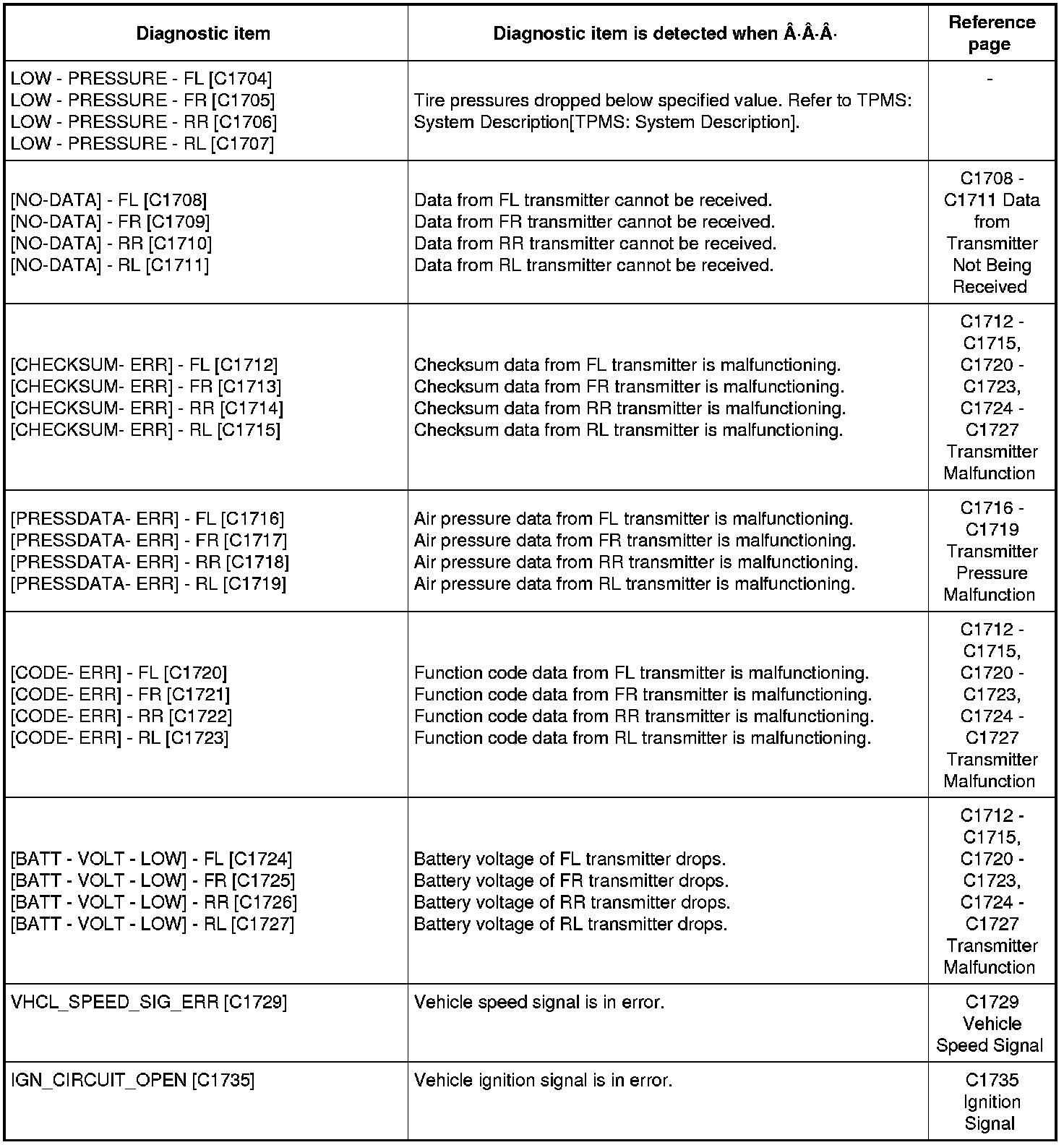

DTC Check Mode





NOTE:

Before performing "DTC check", be sure to register the ID or else the actual malfunction location may be different from that displayed on SDT.
