Pinout Values and Diagnostic Parameters

ECU Diagnosis Information: BCM

Reference Value

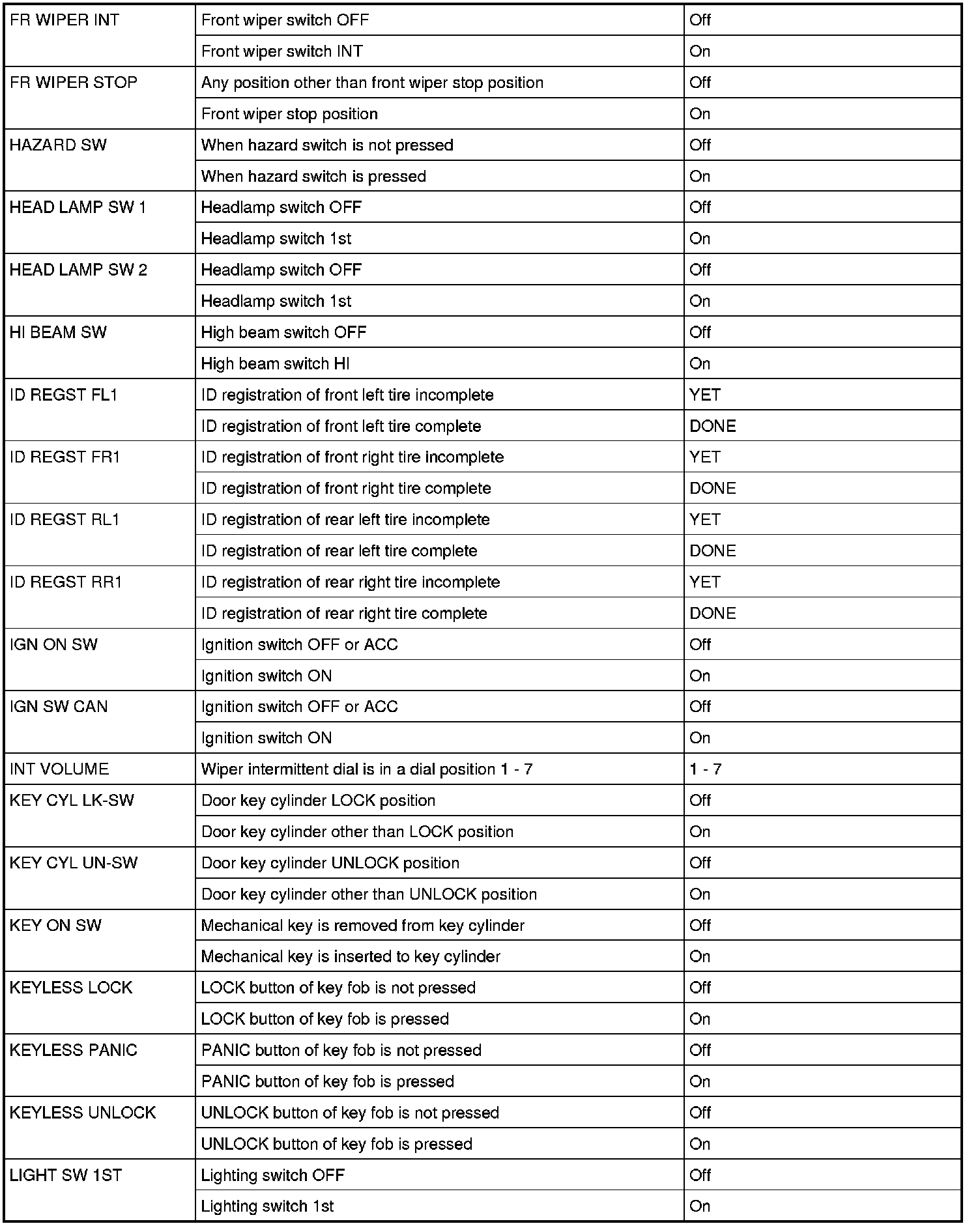

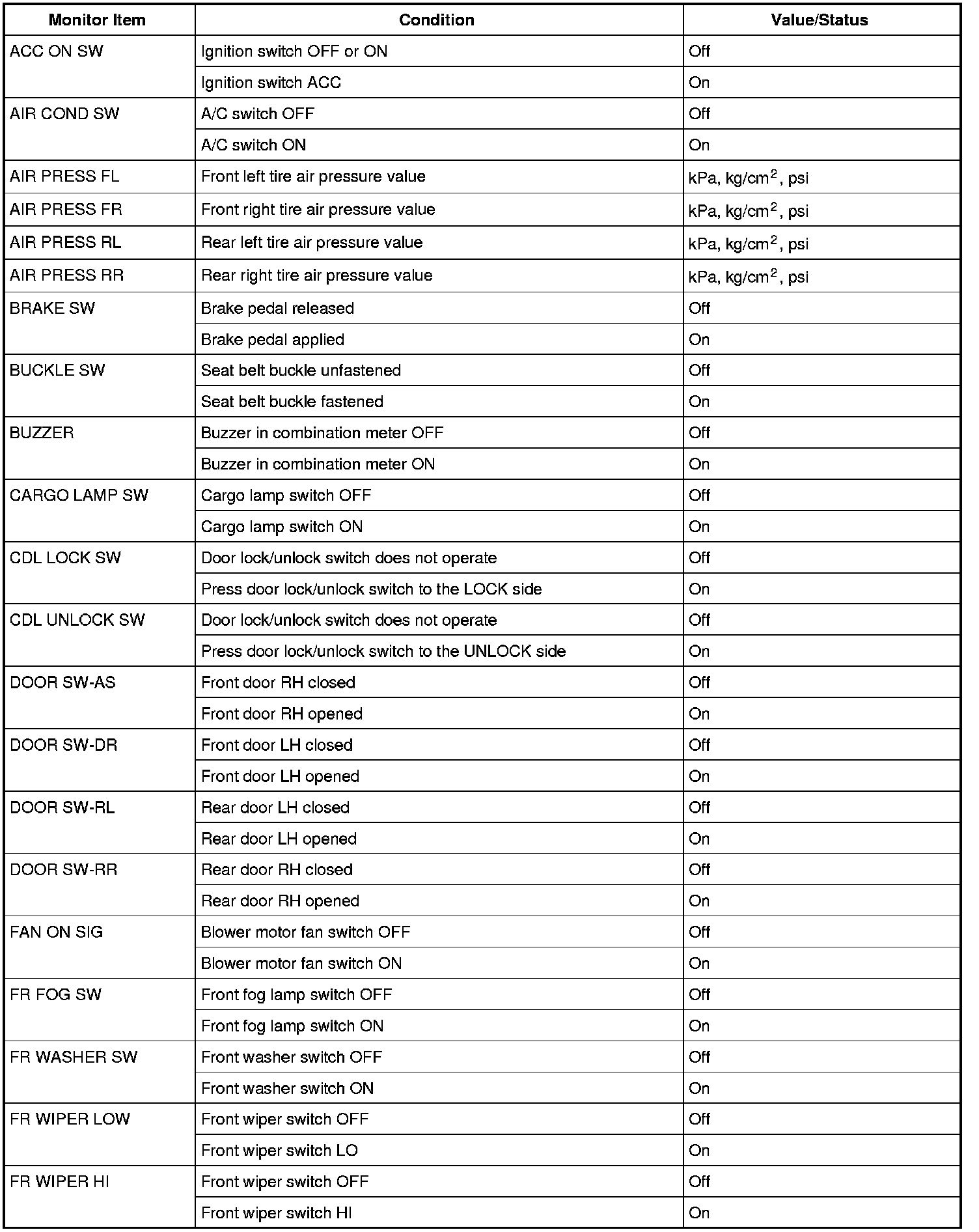

Values On the Diagnosis Tool

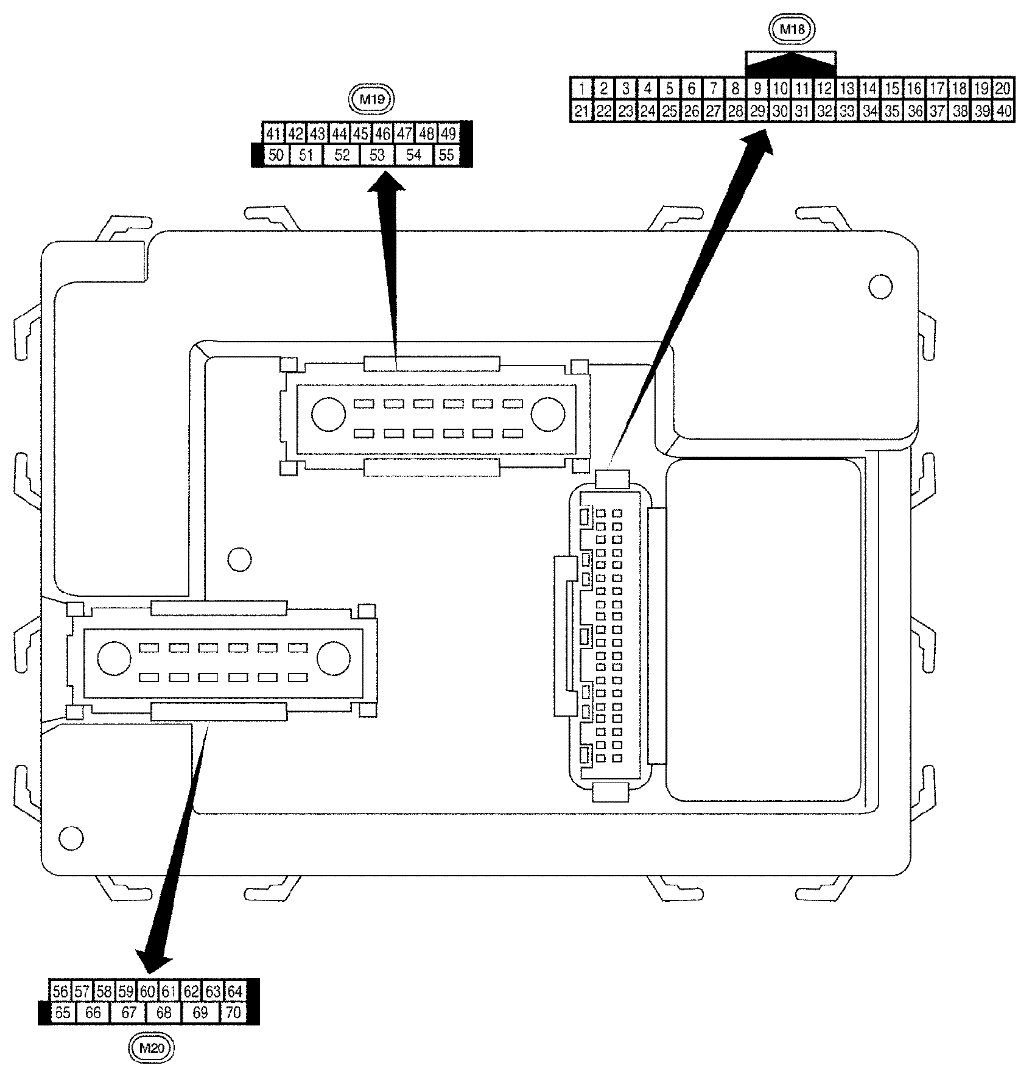

Terminal Layout

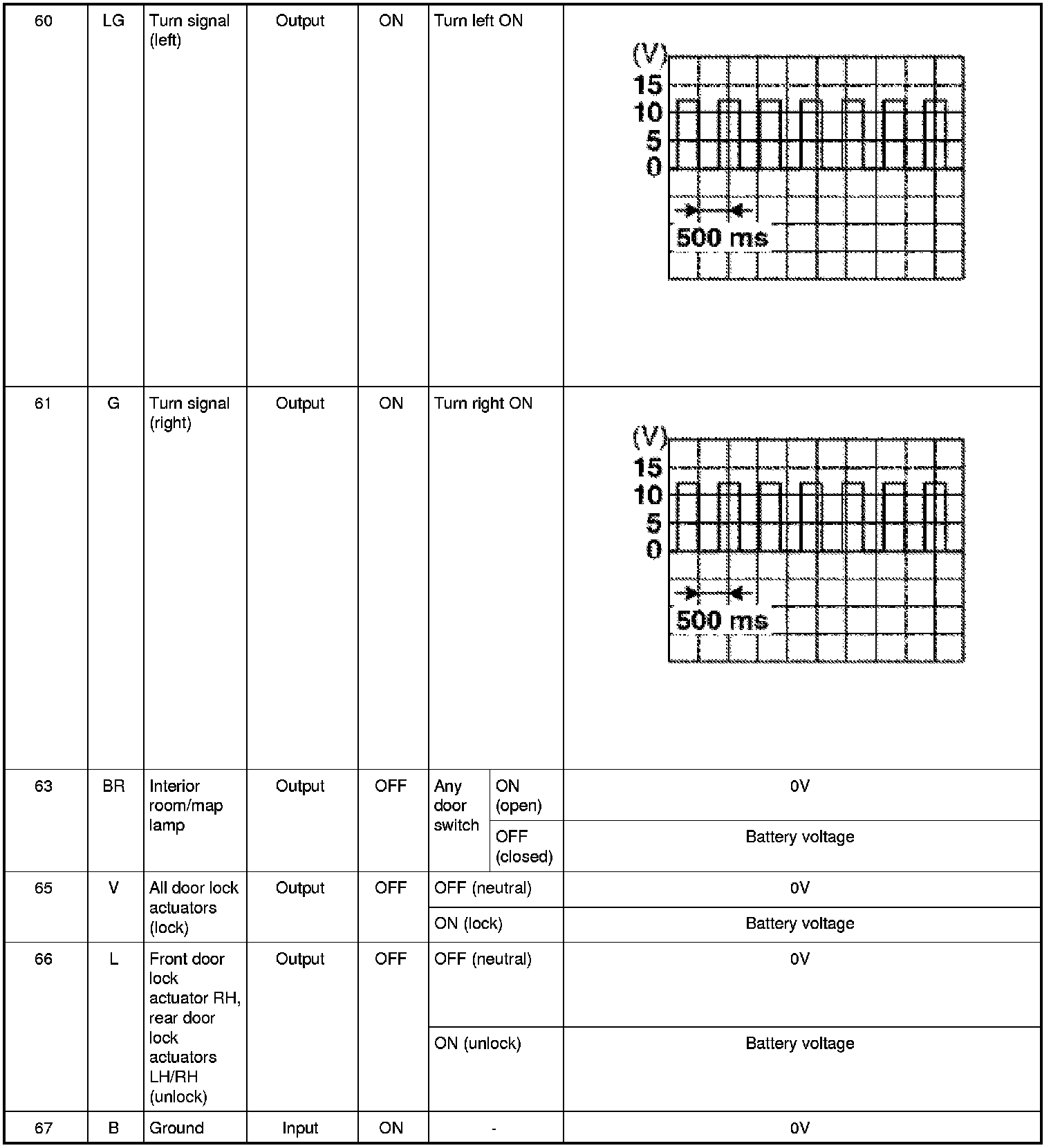

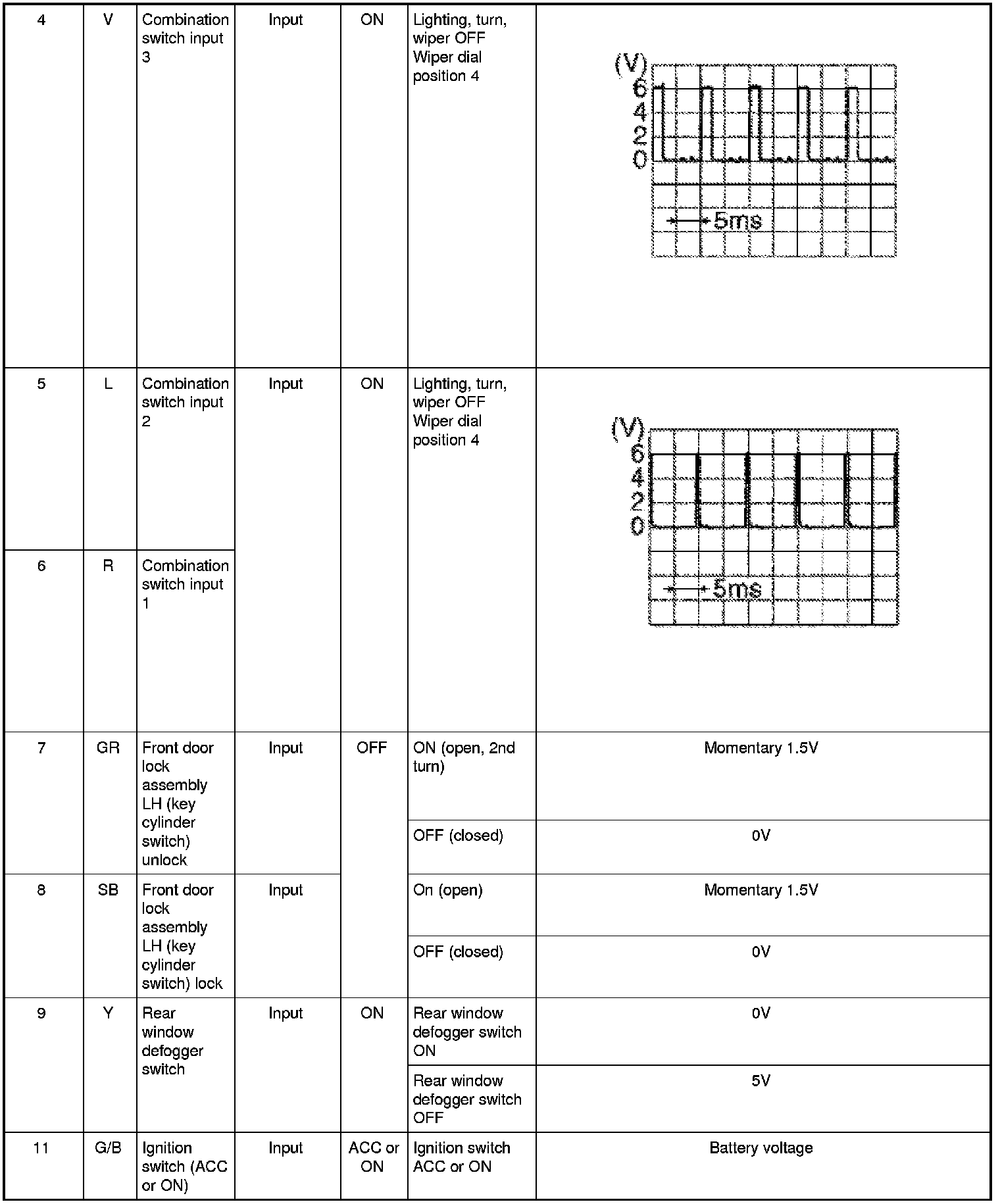

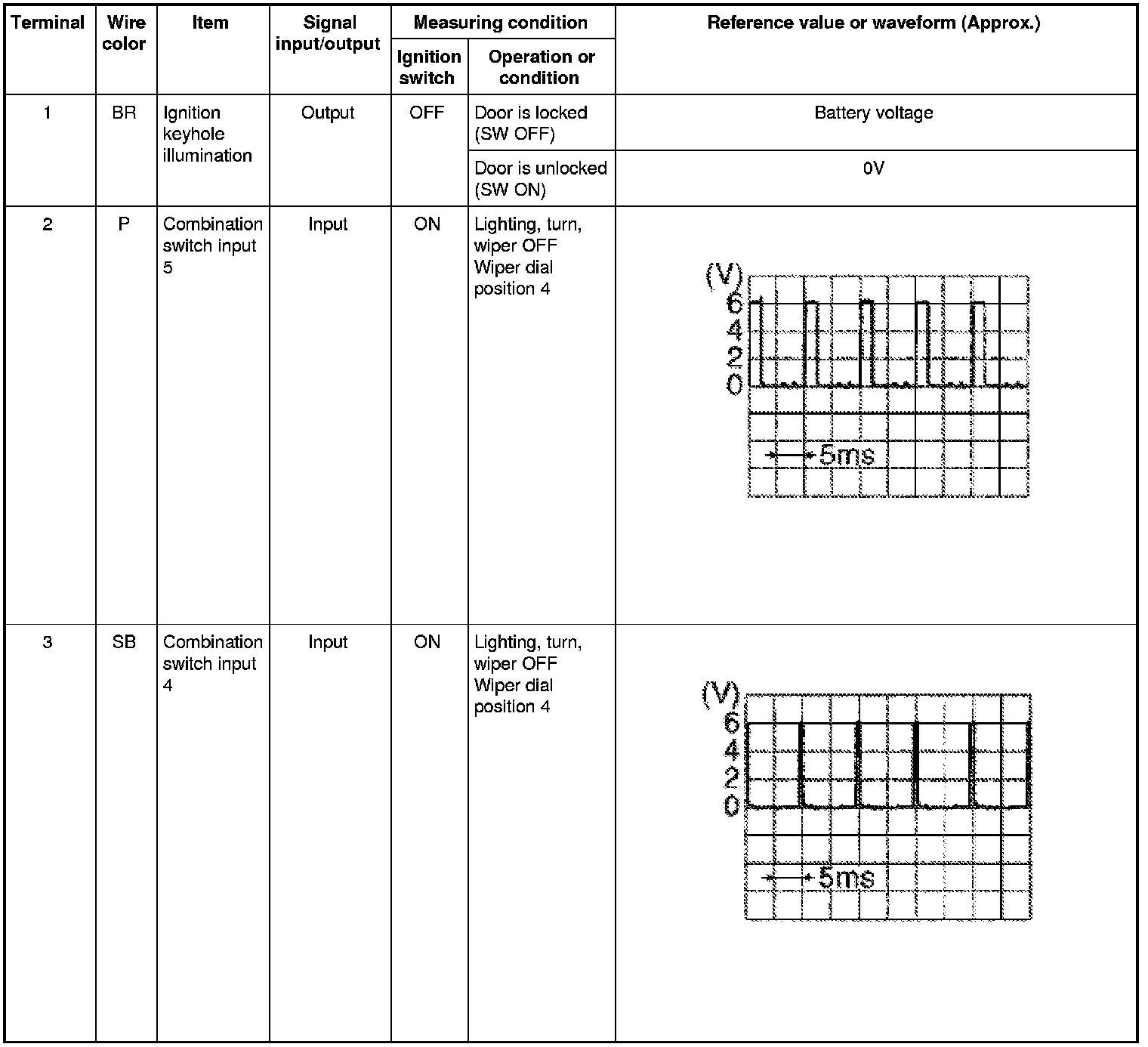

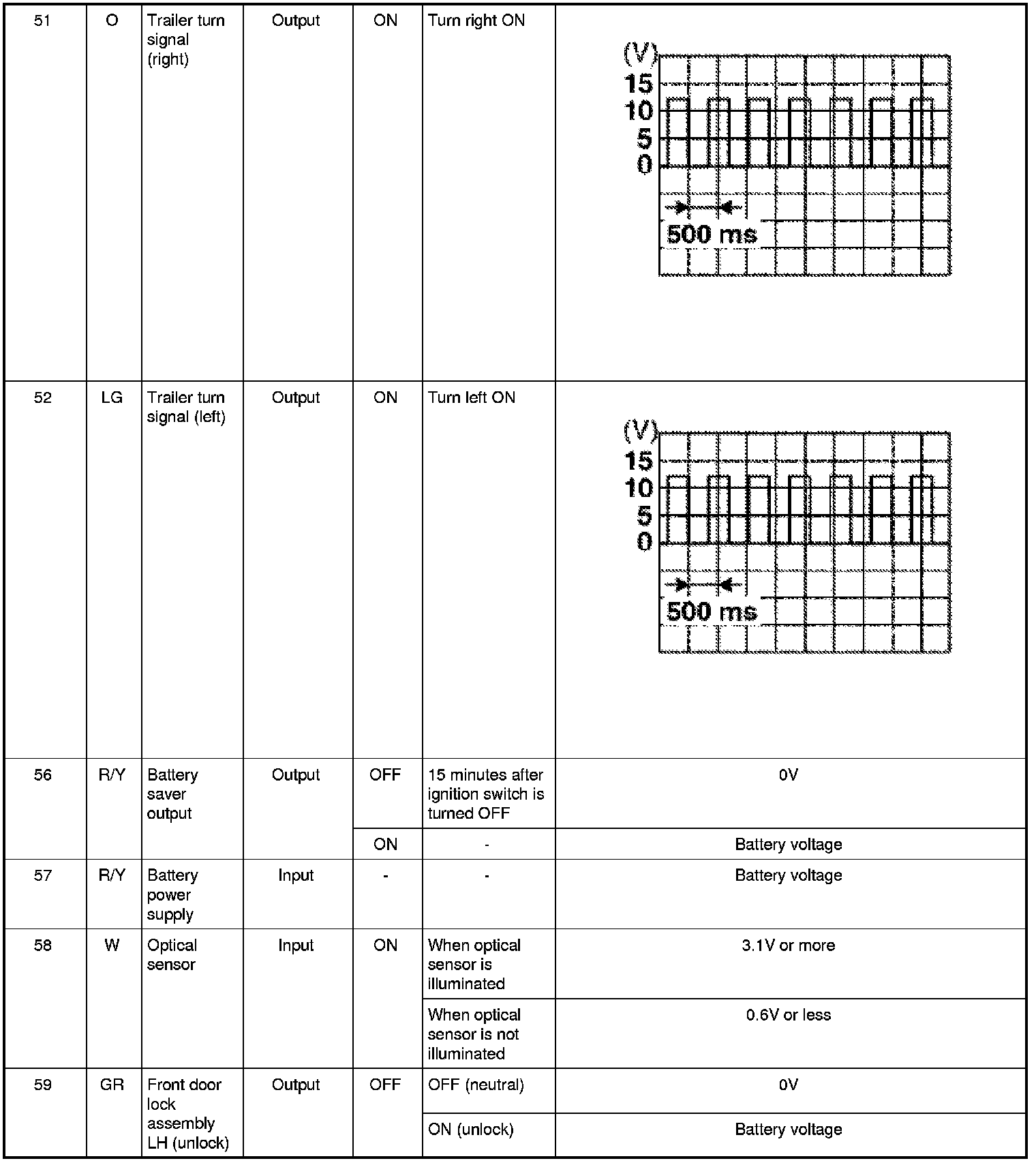

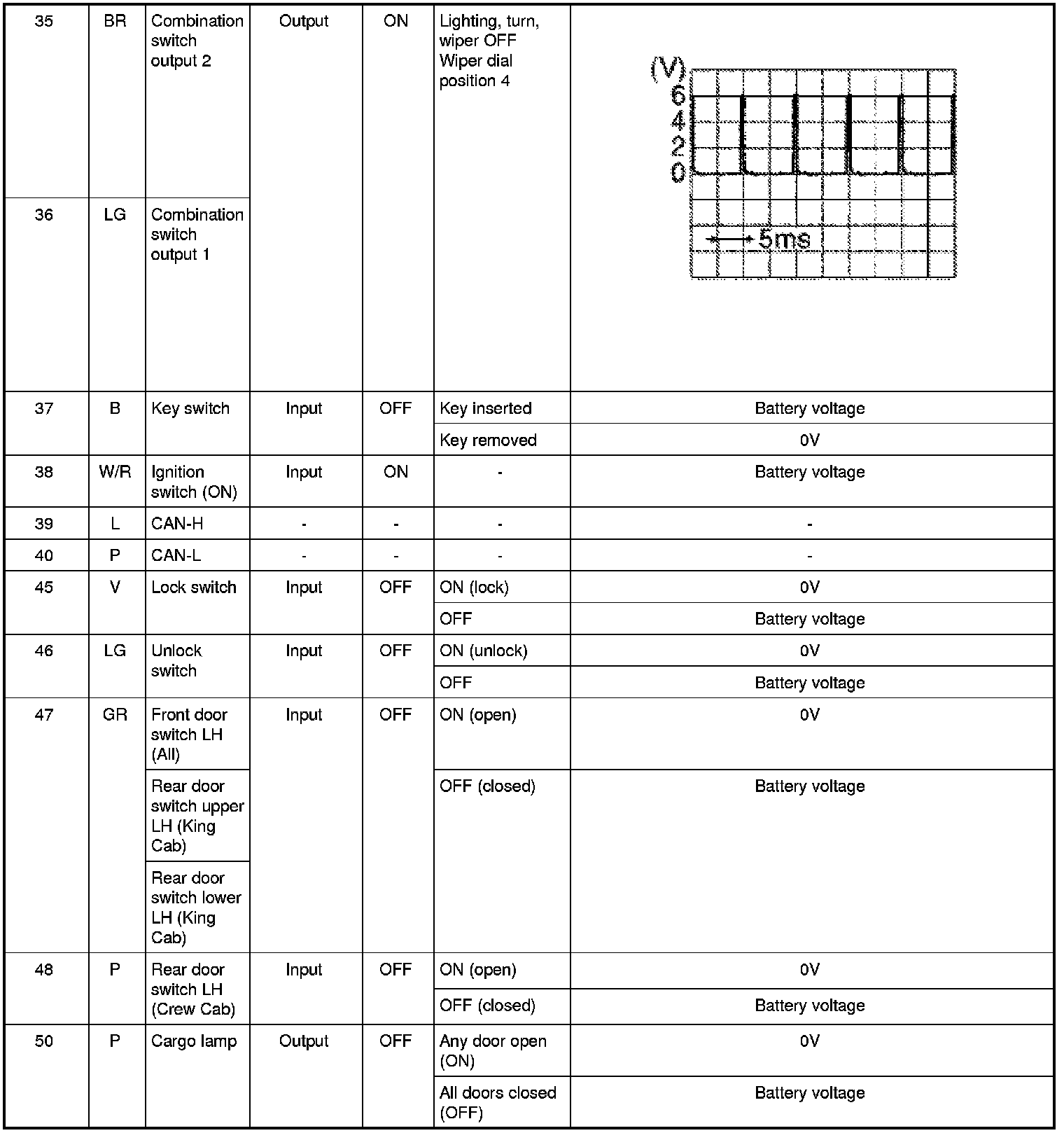

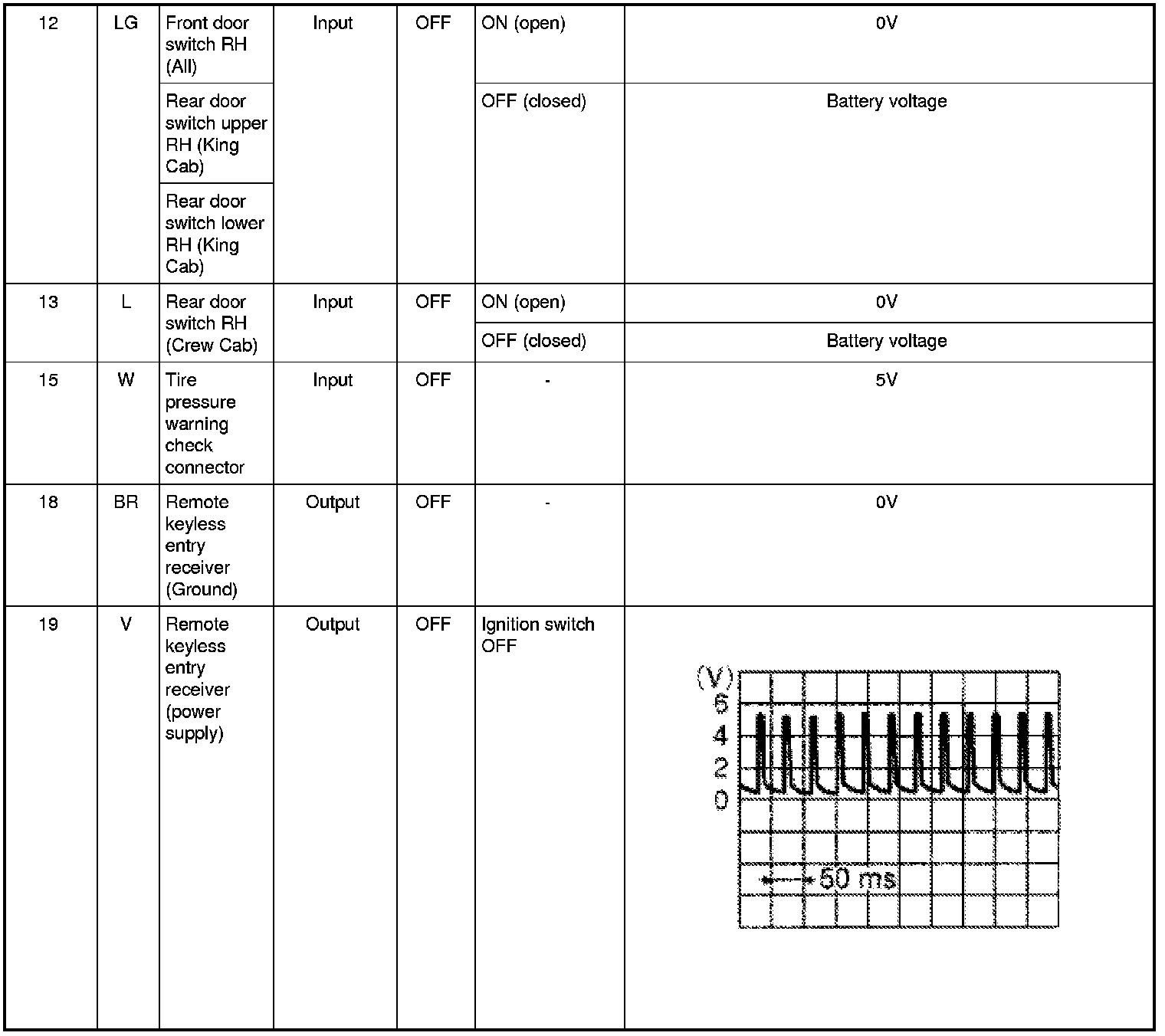

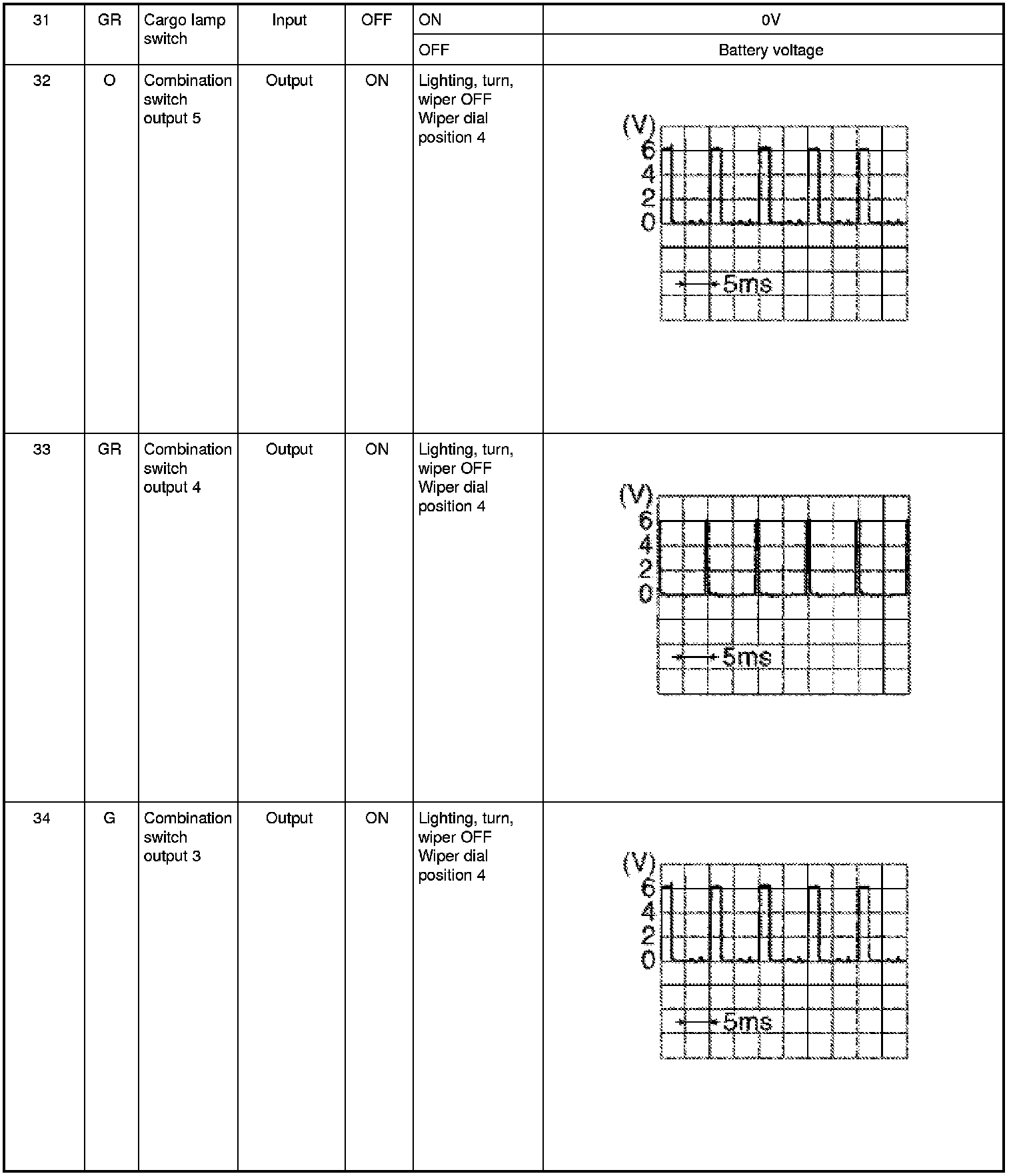

Physical Values






































1: King cab (with power door lock system)

2: Crew cab (with power door lock system)
