Reading and Clearing Diagnostic Trouble Codes

Self-Diagnosis (without SDT)

Self Diagnostic Procedure (Without SDT)

1 Turn ignition switch ON.
2 Ground the tire pressure warning check connector to initiate self diagnosis.

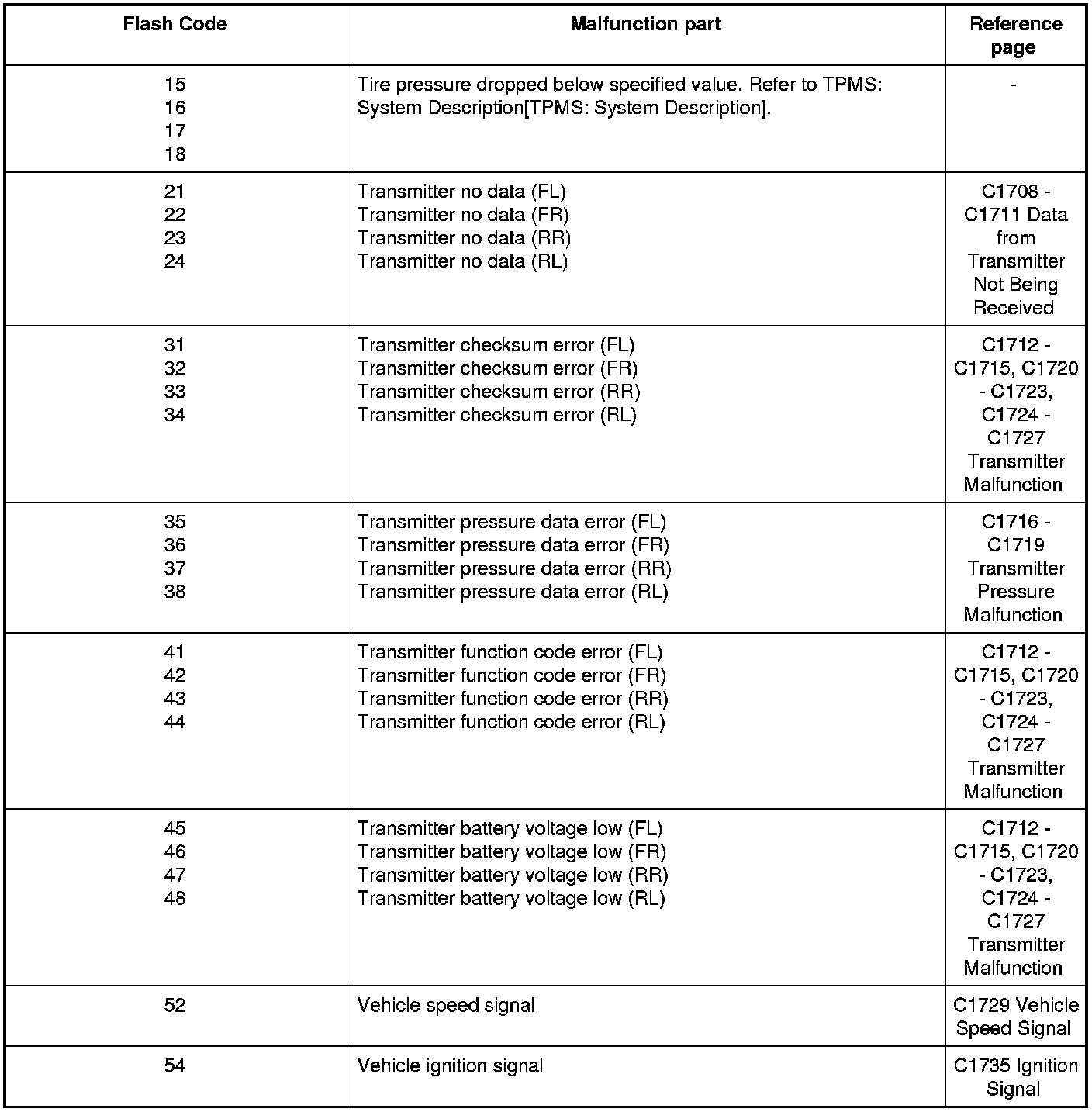

3 Compare the flashing pattern with the flash code chart below.





NOTE:

The system is normal when the low tire pressure warning lamp flashes 5 times and continues repeating. Self-diagnosis results are erased automatically by turning the ignition switch "OFF".
