DTC Index ECM

DTC Index: ECM

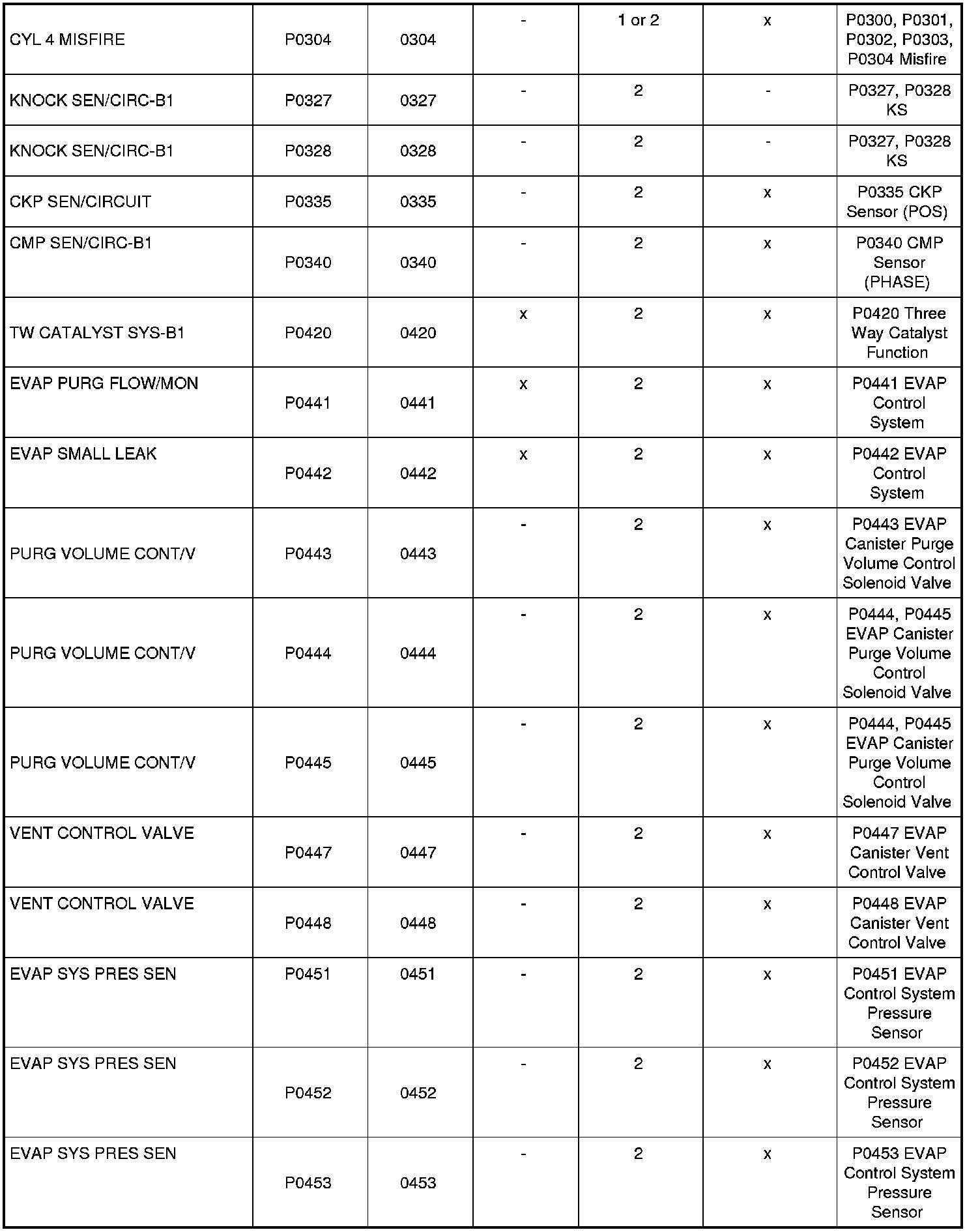

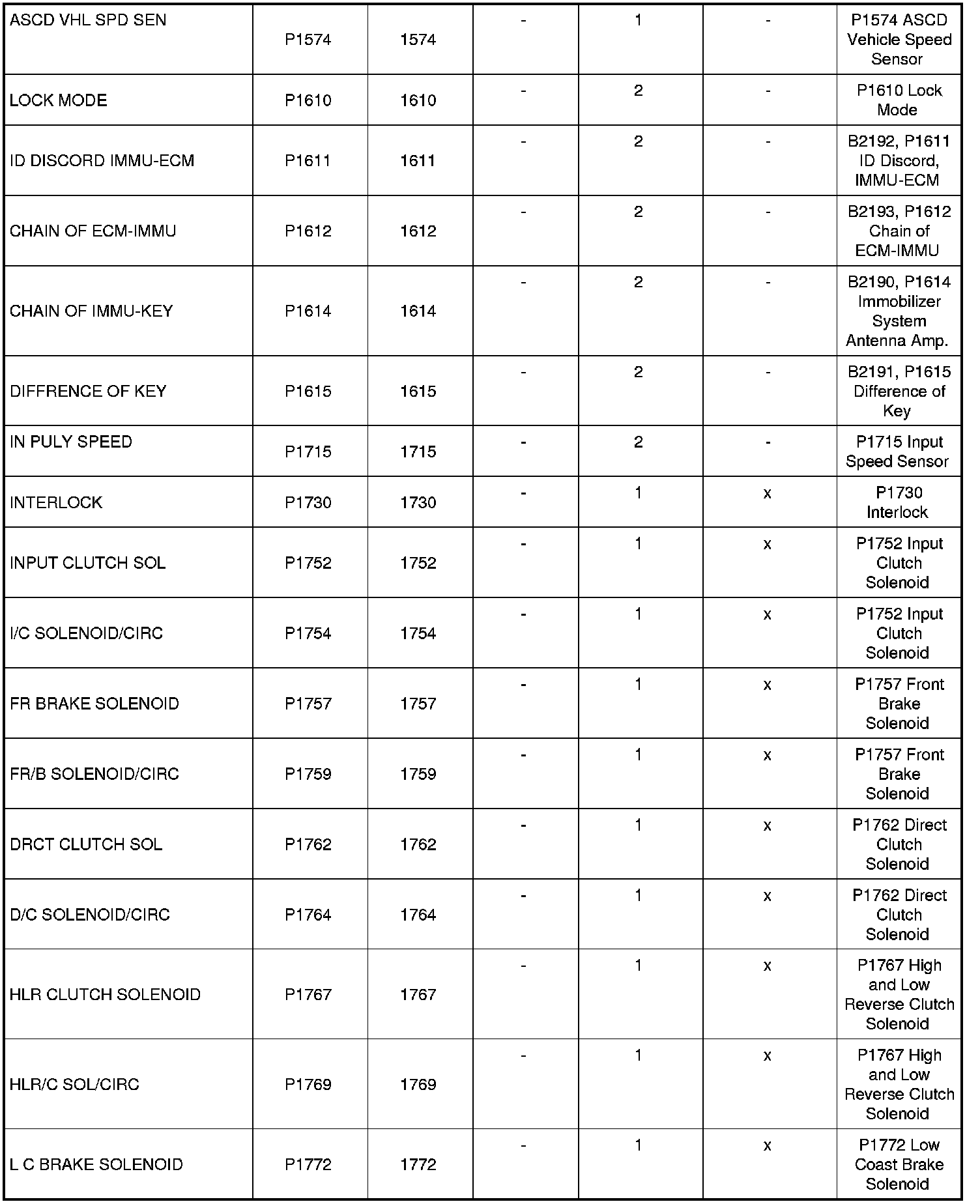

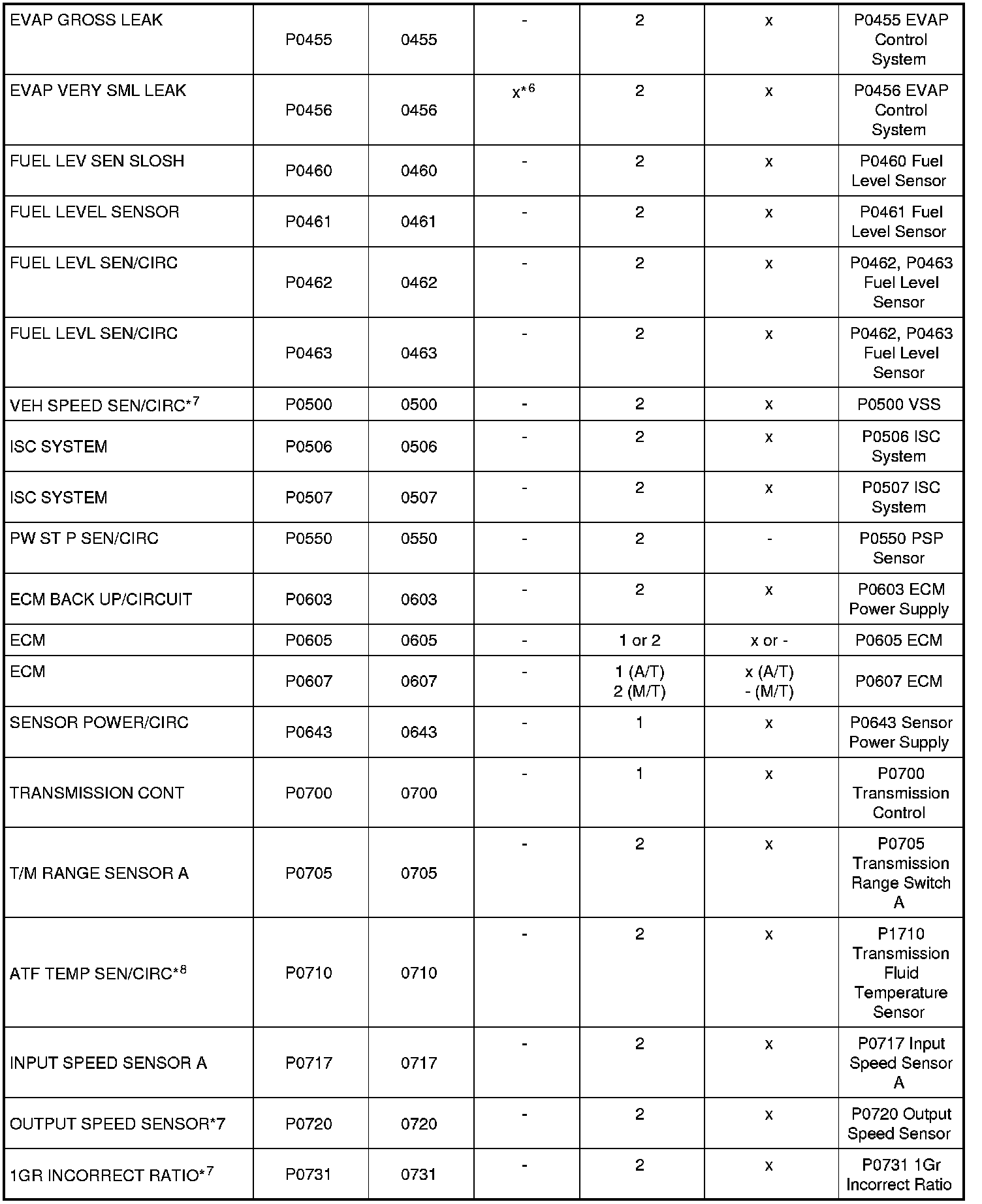

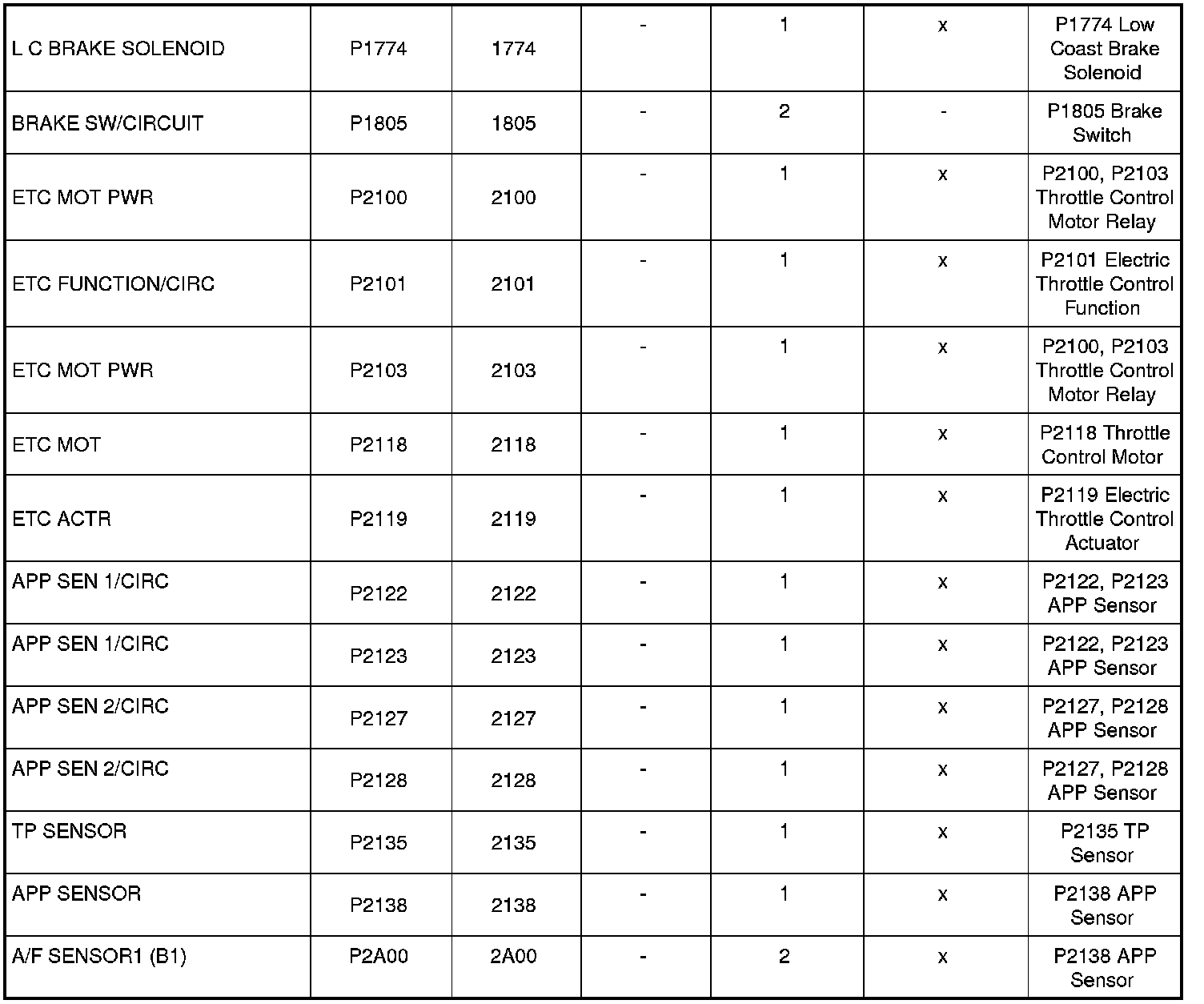

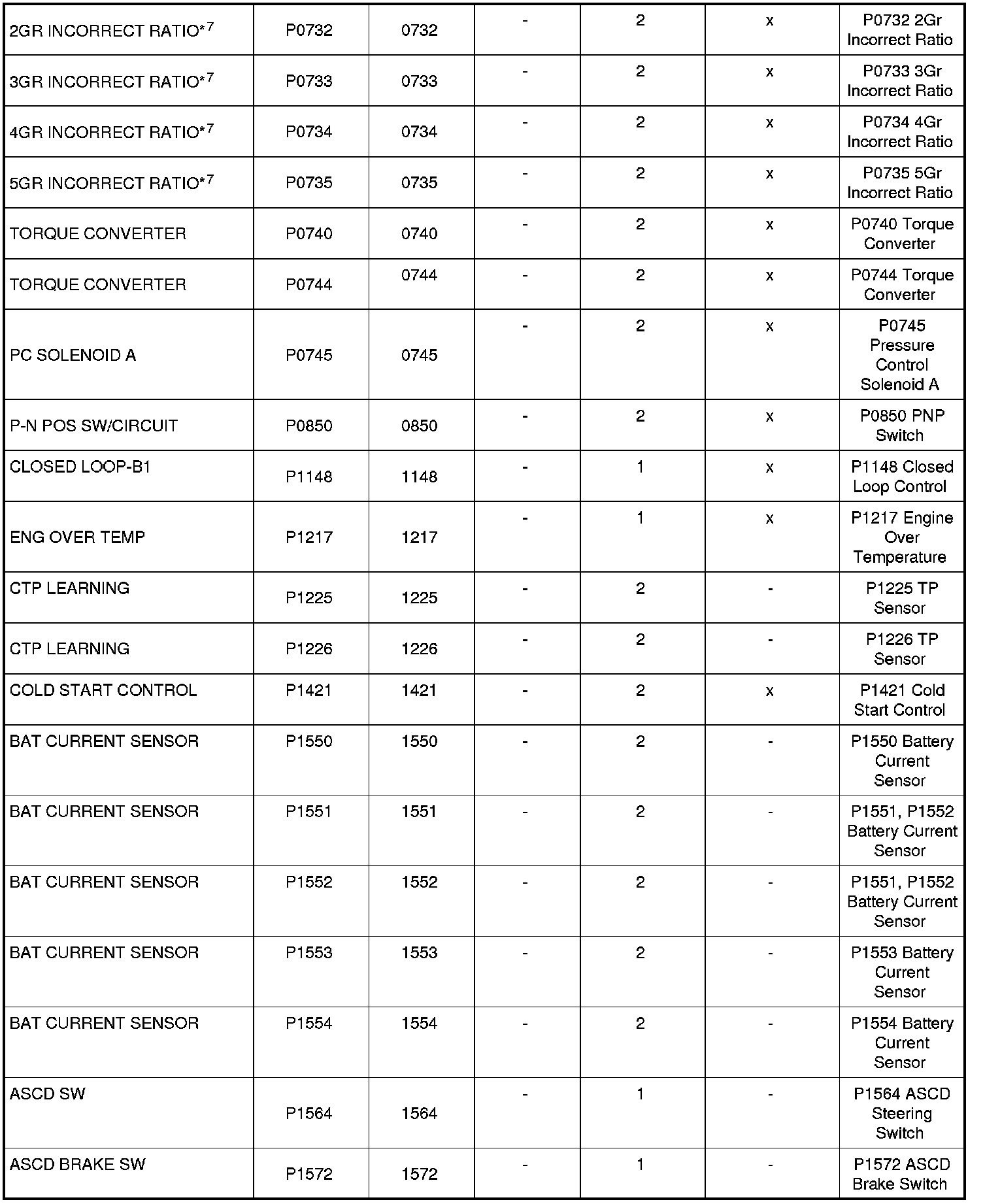

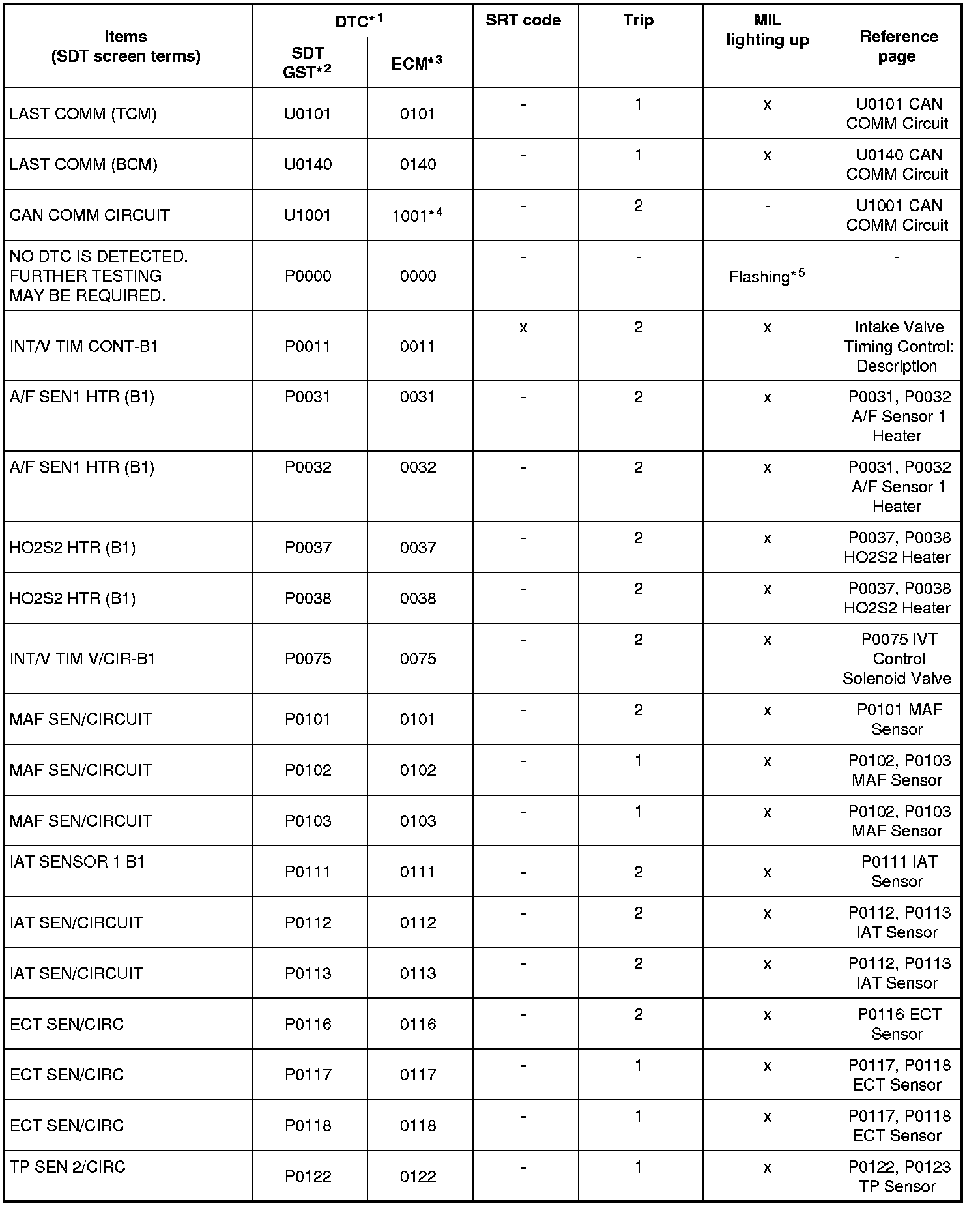

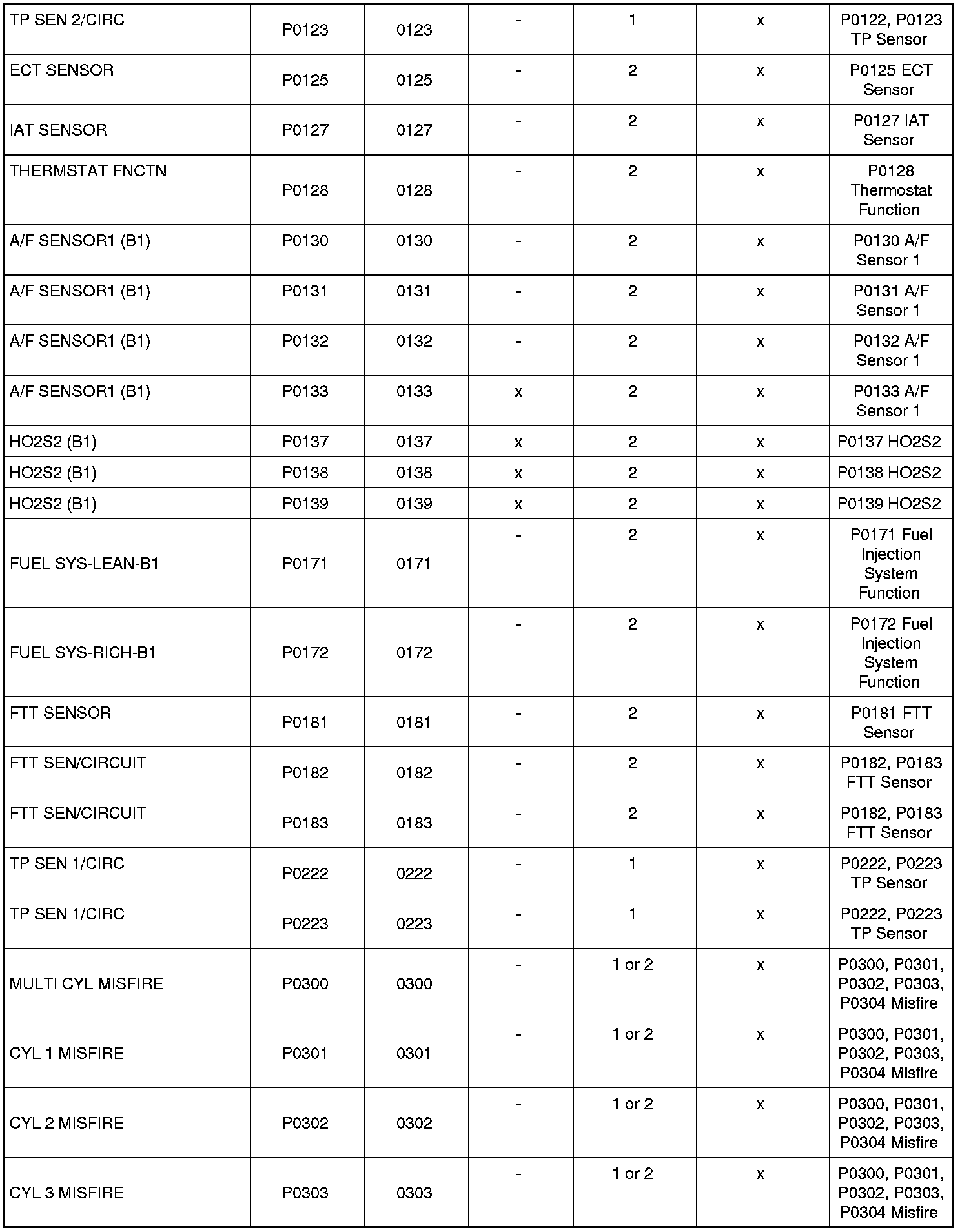

Emission-Related Diagnostic Information Items

x: Applicable -: Not applicable






























*1: 1st trip DTC No. is the same as DTC No.

*2: This number is prescribed by SAE J2012/ISO 15031-6.

*3: In Diagnostic Test Made II (DTC check).

*4: The troubleshooting for this DTC needs SDT.

*5: When the ECM is in the mode of displaying readiness test, MIL may flash. For the details, refer to "How to Display Readiness Test".

*6: SRT code will not be set if the self-diagnostic result is NG.

*7: When the fail-safe operations for both self-diagnoses occur at the same time, the MIL illuminates.

*8: When erasing this DTC, always use SDT or GST.
