DTC Index Air Bag System
Diagnosis Sensor Unit: Trouble Diagnosis with SDT

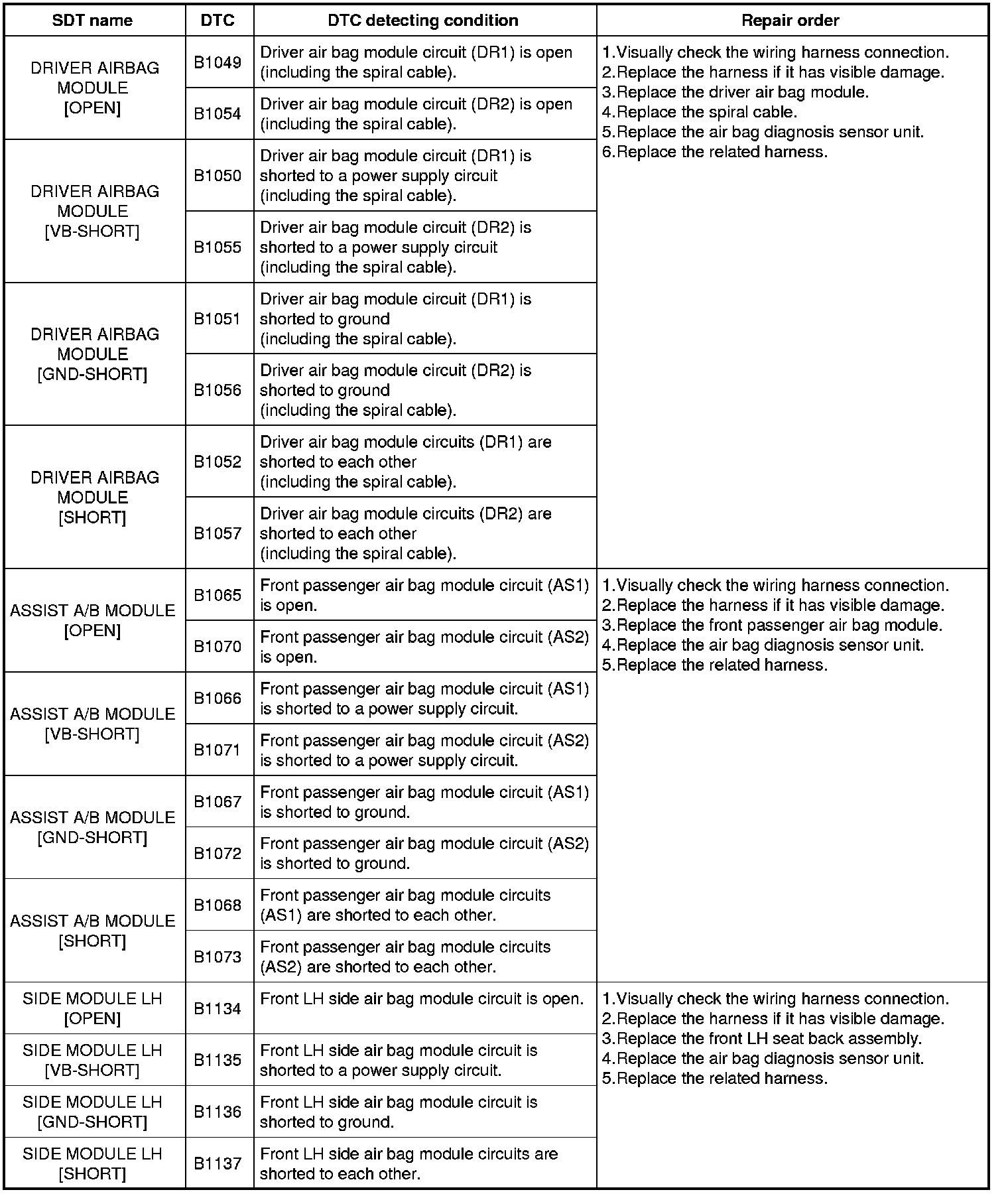

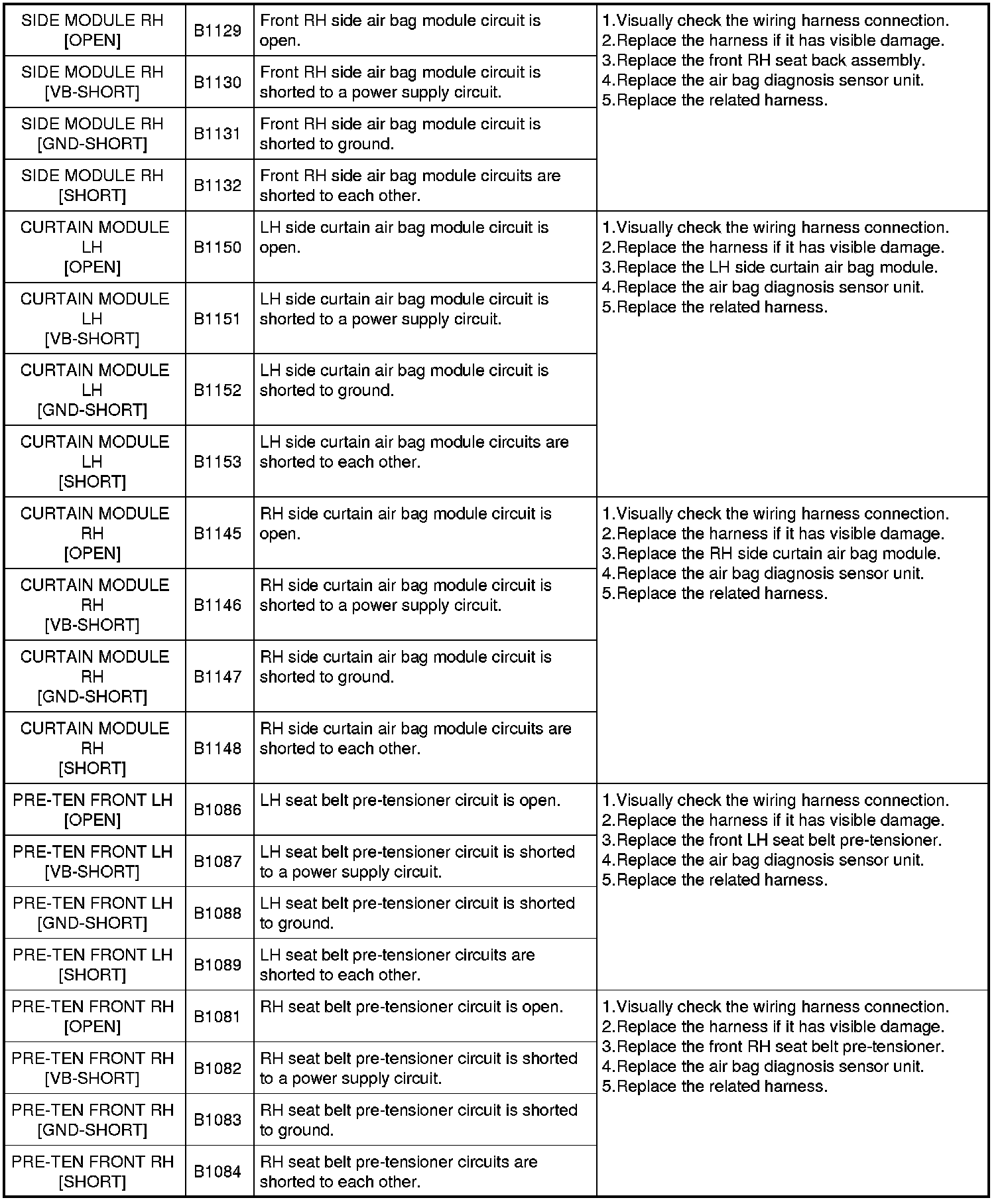

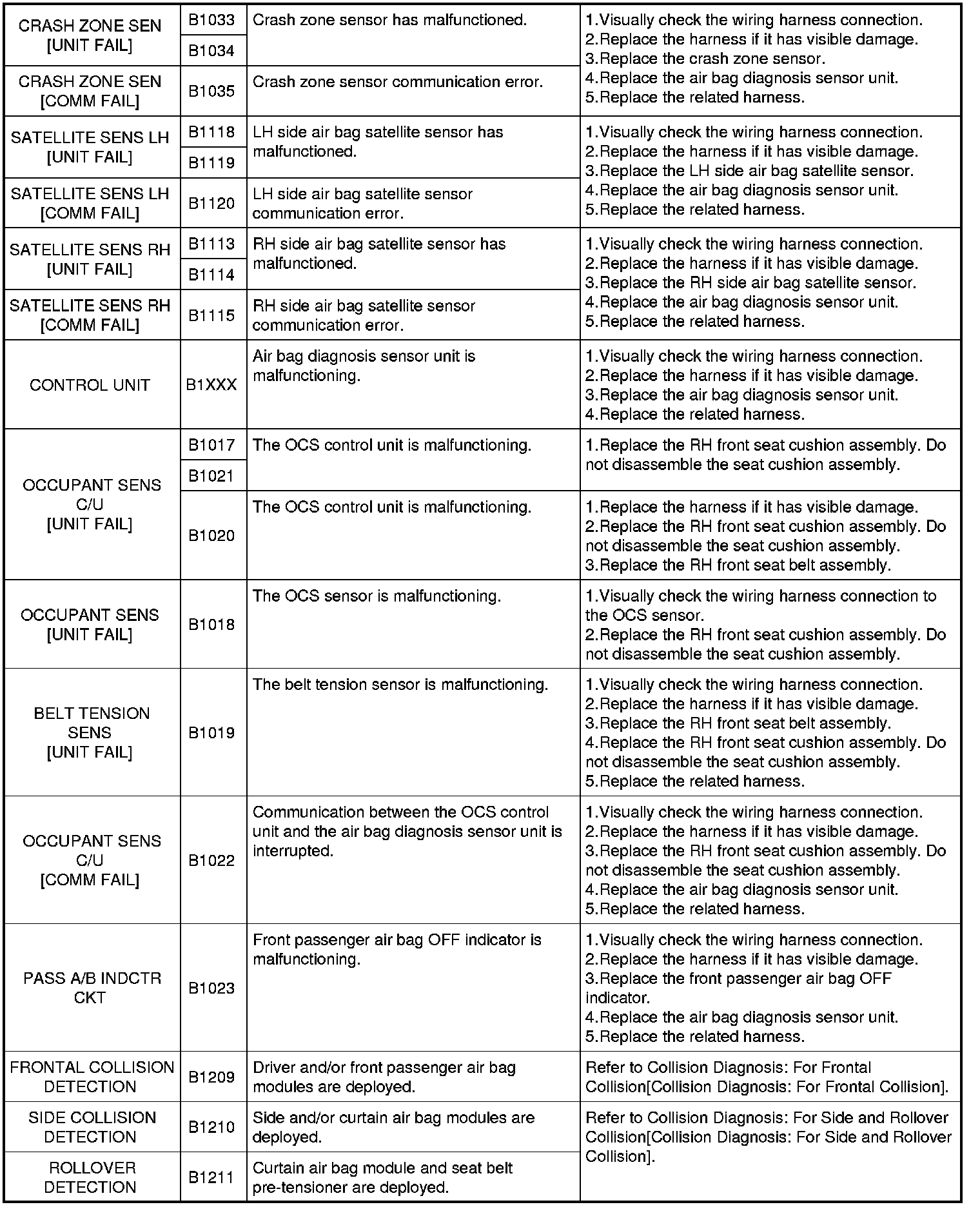

Diagnostic Code Chart
NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated using air bag warning lamp or SDT each time repair is finished. If malfunction is still observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.
