EVAP System Components

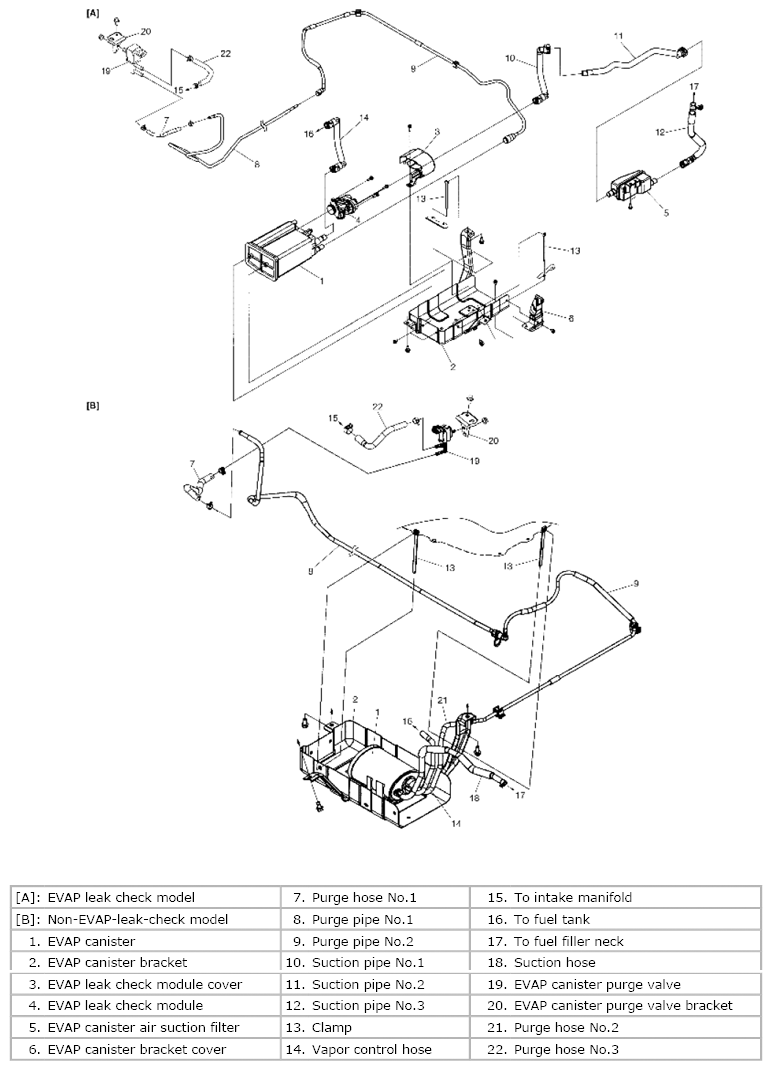

Fig 1: Identifying EVAP System Replacement Components
Courtesy of SUZUKI OF AMERICA CORP.
