CVT Oil Pan Removal and Installation: Removal

  1. Disconnect negative cable from battery.
  2. Lift up vehicle.
  3. Drain CVT fluid.
  4. Remove CVT oil pan (1) and oil pan gasket (2).

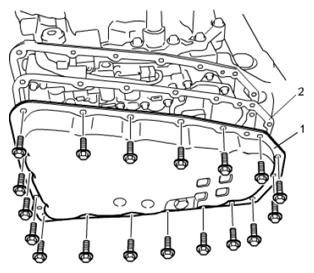

    Fig 1: Identifying Oil Pan And Oil Pan Gasket
    G06866800Courtesy of SUZUKI OF AMERICA CORP.
