CVT Oil Pan Removal and Installation: Installation

Reference: CVT OIL PAN INSPECTION

Reverse removal procedure noting the following.

• Clean mating surface of transaxle case and CVT oil pan. Remove CVT fluid, old gasket and dust from mating surface.
• Use new gasket (1) for CVT oil pan (2).
• Align the dowel pin (3) of transaxle case and the dowel pin hole (4) of CVT oil pan, and then install CVT oil pan.
• Tighten CVT oil pan bolts in numerical order ("1" - "18") evenly and gradually to specified torque.
  CAUTION: Use new CVT oil pan bolts.

  Tightening torque

  CVT oil pan bolt* (a): 7.9 N.m (0.81 kg-m, 6.0 lbf-ft)

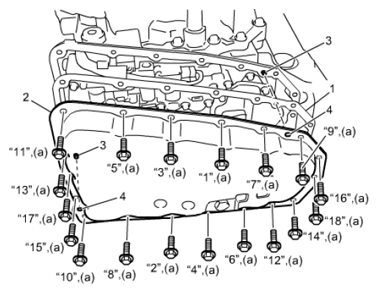

  Fig 1: Identifying CVT Oil Pan Bolt Tightening Order

  Courtesy of SUZUKI OF AMERICA CORP.
• Replenish CVT fluid.
• Check CVT fluid level.
• Check for CVT fluid leakage after warming up CVT.
