Level Check at Room (Cold) Temperature - Cold Check

CAUTION: Fluid level check at room (cold) temperature is recommended only for preparation of level check under normal (hot) operating condition.
Failure to perform fluid level check under normal (hot) operating temperature may result in damage to transaxle.

Fluid level can be checked temporarily at room (cold) temperature which correspond to 20 - 30 °C (68 - 86 °F). This level check is considered to be preparation before performing level check under normal operating (hot) temperature. Checking procedure itself is the same as that described in LEVEL CHECK AT NORMAL OPERATING (HOT) TEMPERATURE - HOT CHECK . If fluid level is between full cold (4) and low cold (5), proceed to test drive. And when CVT fluid temperature has reached 70 - 80 °C (158 - 176 °F), check CVT fluid level again and adjust it as necessary.

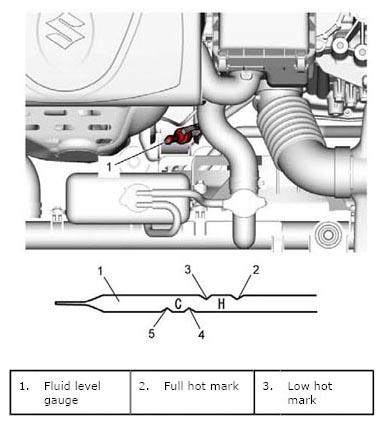

Fig 1: Inspecting Level Check At Room (Cold) Temperature

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: If smell of burning, discoloration or heavy dirt is present in CVT fluid, replacement of CVT assembly will be required.
