Service Manual Update: Left Case Reassembly Of Manual Transmission Procedure (TS 10 03232)
Publication date: 2002-03-23Reference number: TS 10 03232
SERVICE MANUAL UPDATE: LEFT CASE REASSEMBLY OF MANUAL TRANSMISSION PROCEDURE
TECHNICAL SERVICE BULLETIN
| SUZUKI: | 2010-2011 SX-4 (RW420) |
| SECTION: | Transmission |
CONDITION
This bulletin is to inform you that there has been an update made to the following service manuals for selection of the countershaft left side bearing shim in the manual transaxle and "Available shim thickness" table.
CORRECTION
For users of the Online Service Manuals, please refer to the corrections illustrated in this bulletin that have been made to the service manual sections applying to Left Case Disassembly and Reassembly. The following table describes the Service Manuals and the corresponding items that were corrected. The Online Service Manuals have been revised prior to the release of this bulletin.
AFFECTED SERVICE MANUAL(S)
| Manual Name | Part Number | Corresponding Item |
|---|---|---|
| 2011 SX-4 (RW420) Service Manual (Online) | 99500-80J40-33E | Section 5B: Left Case Disassembly and Reassembly |
| 2010 SX-4 (RW420) Service Manual (Online) | 99500-80J30-33E |
Technical Service Department
Dealership Circulation - Initial and file:
| Service Manager | Parts Manager | Service Advisor | Technicians | |||||||
Left Case Disassembly and Reassembly
Disassembly
Reassembly
- Install oil gutter (1), if removed.
- Select countershaft left side bearing shim and differential left side bearing shim as follows.
- Keep pressing outer race with 35 N (3.67 kgf, 7.87 lbf) and turn countershaft assembly and differential case 10 times or more.
- Measure distance "a" of countershaft assembly (1) and "e" of differential assembly (2).
- Measure depth "b" and "g" of left case (3) and "c" and "f" of right case (4).
- Calculate the clearance of "d" and "h" by the following formulas.
Clearance of "d" = Depth "b" + Depth "c" - Distance "a"
Clearance of "h" = Depth "f" + Depth "g" - Distance "e"

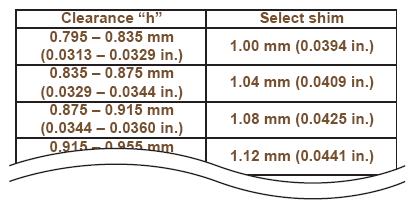

- Select shim closest to clearance "d" and "h" from among the following available sizes.
| Clearance "d" | Select shim |
|---|---|
| 0.795 - 0.845 mm (0.0313 - 0.332 in.) | 1.05 mm (0.0413 in.) |
| 0.845 - 0.895 mm (0.0332 - 0.0352 in.) | 1.10 mm (0.0433 in.) |
| 0.895 - 0.945 mm (0.0352 - 0.0372 in.) | 1.15 mm (0.0453 in.) |
| 0.945 - 0.995 mm (0.0372 - 0.0391 in.) | 1.20 mm (0.0472 in.) |
| 0.995 - 1.045 mm (0.0391 - 0.0411 in.) | 1.25 mm (0.0492 in.) |
| 1.045 - 1.095 mm (0.0411 - 0.0431 in.) | 1.30 mm (0.0512 in.) |
| 1.095 - 1.145 mm (0.0431 - 0.0450 in.) | 1.35 mm (0.0531 in.) |
| 1.145 - 1.195 mm (0.0450 - 0.0470 in.) | 1.40 mm (0.0551 in.) |
| 1.195 - 1.245 mm (0.0470 - 0.0490 in.) | 1.45 mm (0.0571 in.) |
| 1.245 - 1.295 mm (0.0490 - 0.0509 in.) | 1.50 mm (0.0591 in.) |
| 1.295 - 1.345 mm (0.0509 - 0.0529 in.) | 1.55 mm (0.0610 in.) |
| 1.345 - 1.395 mm (0.0529 - 0.0549 in.) | 1.60 mm (0.0630 in.) |
| 1.395 - 1.445 mm (0.0549 - 0.0568 in.) | 1.65 mm (0.0650 in.) |
| 1.445 - 1.495 mm (0.0568 - 0.0588 in.) | 1.70 mm (0.0669 in.) |
| 1.495 - 1.545 mm (0.0588 - 0.0608 in.) | 1.75 mm (0.0689 in.) |
| 1.545 - 1.595 mm (0.0608 - 0.0627 in.) | 1.80 mm (0.0709 in.) |
| 1.595 - 1.645 mm (0.0627 - 0.0647 in.) | 1.85 mm (0.0728 in.) |
| 1.645 - 1.695 mm (0.0647 - 0.0667 in.) | 1.90 mm (0.0748 in.) |
| 1.695 - 1.745 mm (0.0667 - 0.0687 in.) | 1.95 mm (0.0768 in.) |
| 1.745 - 1.795 mm (0.0687 - 0.0706 in.) | 2.00 mm (0.0787 in.) |
