Reduction Drive Gear Assembly Disassembly and Reassembly
Reduction Drive Gear Assembly Disassembly and ReassemblyReference: Transfer Dismounting and Remounting
Reference: Transfer Assembly Components
Reference: Transfer Assembly Disassembly and Reassembly
Disassembly

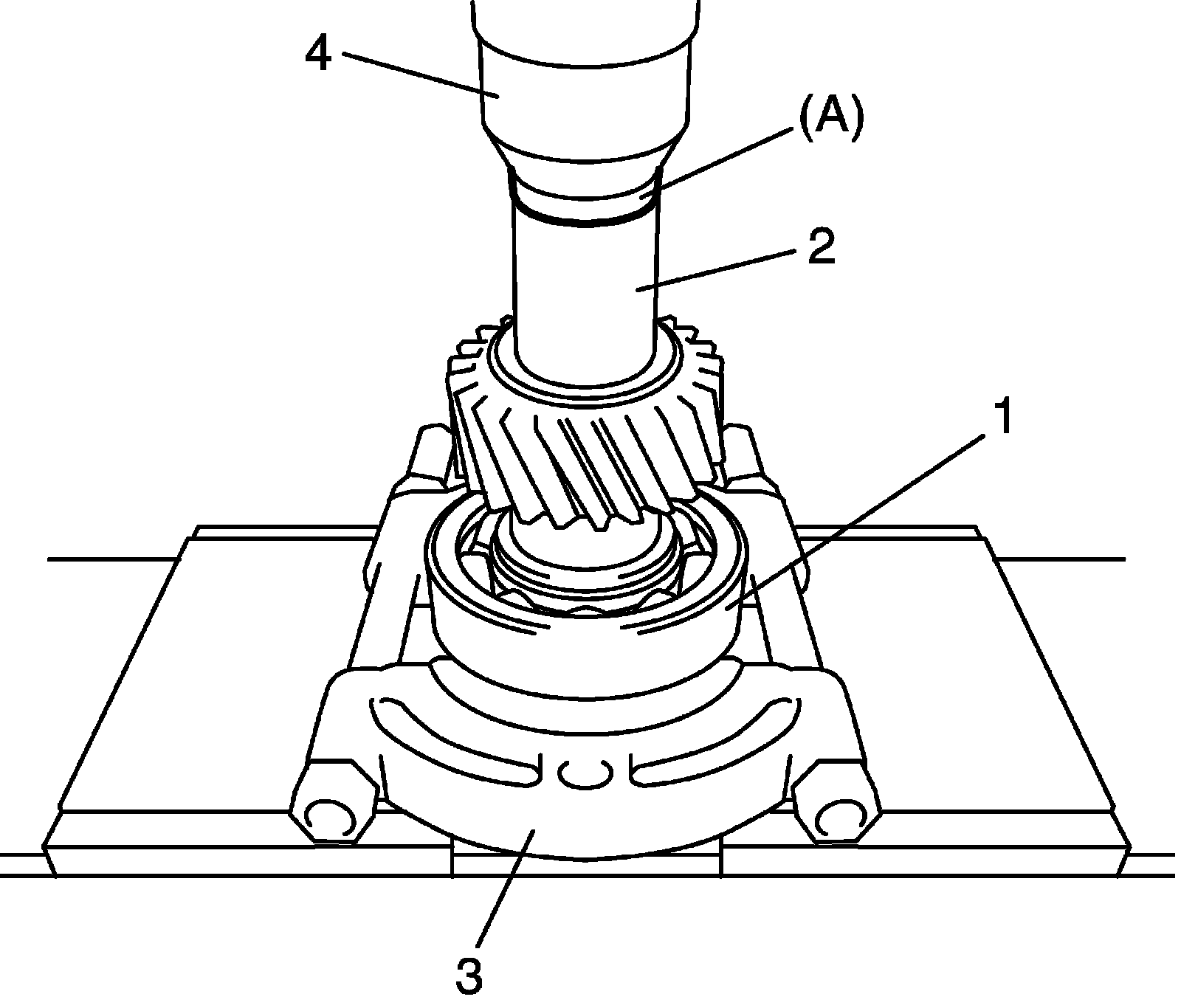

Remove bearings (1) from reduction drive gear (2) using special tool, bearing puller (3) and hydraulic press (4).
Special Tool
(A): 09913-85230
Reassembly
1) Clean all components thoroughly, inspect them for any abnormality and replace with new one as necessary.

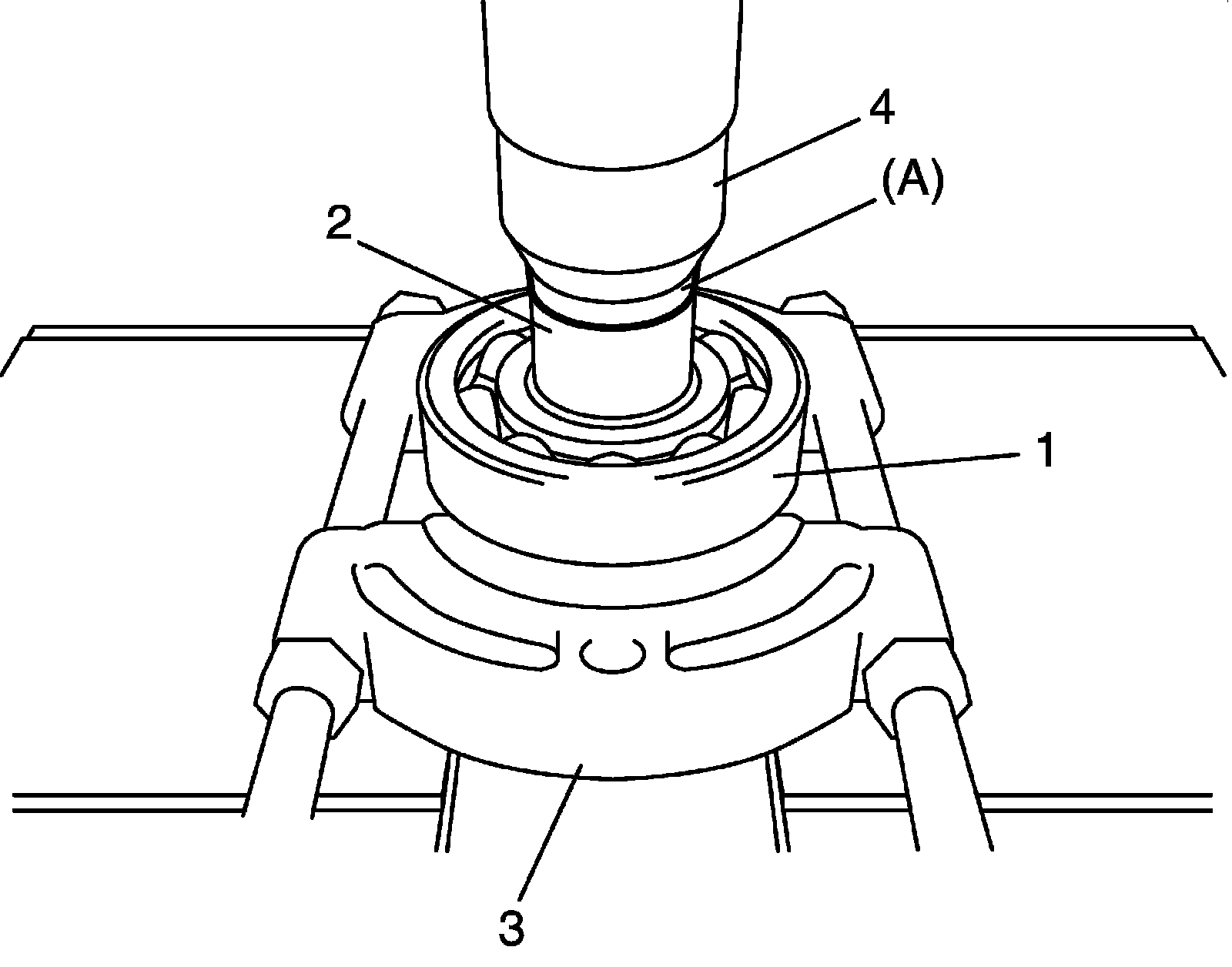

2) Install bearings (1) to reduction drive gear (2) using special tool, bearing puller (3) and hydraulic press (4).
Special Tool
(A): 09913-85230
