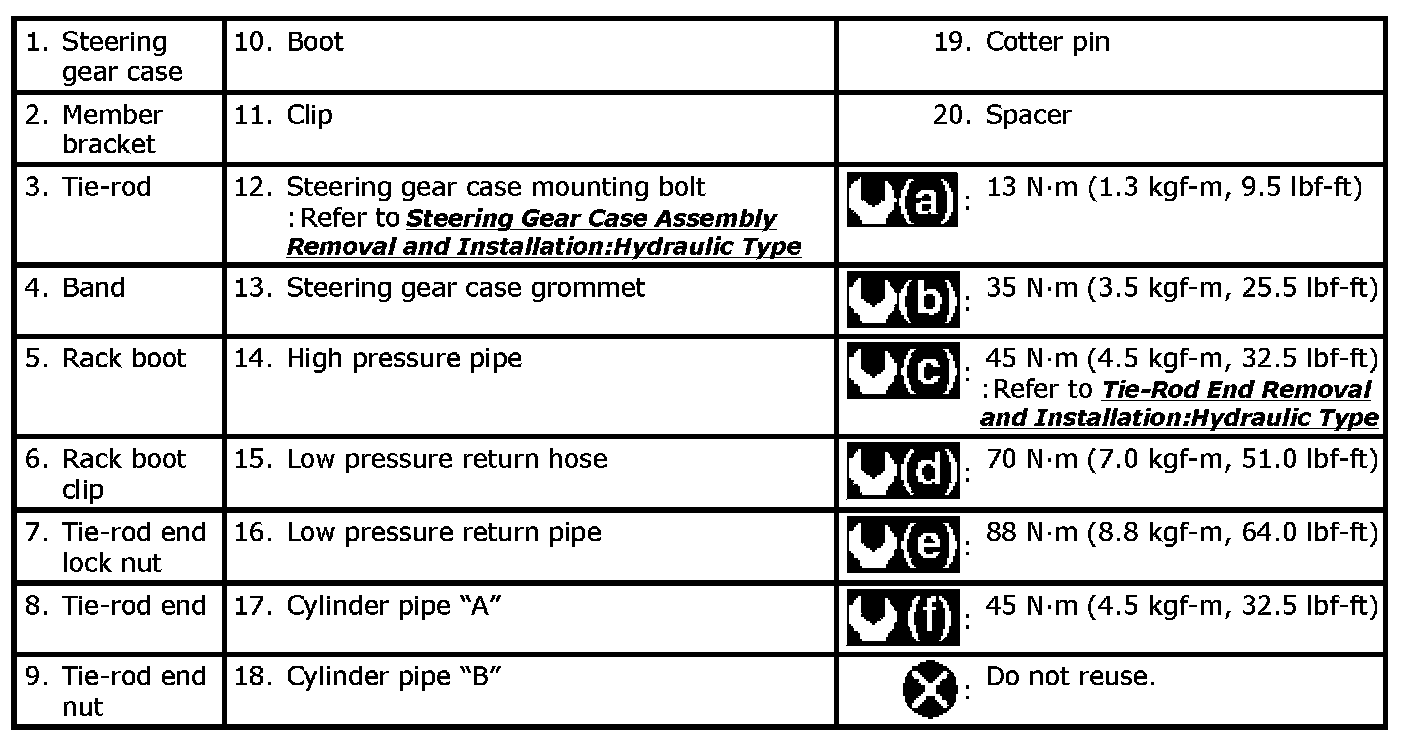

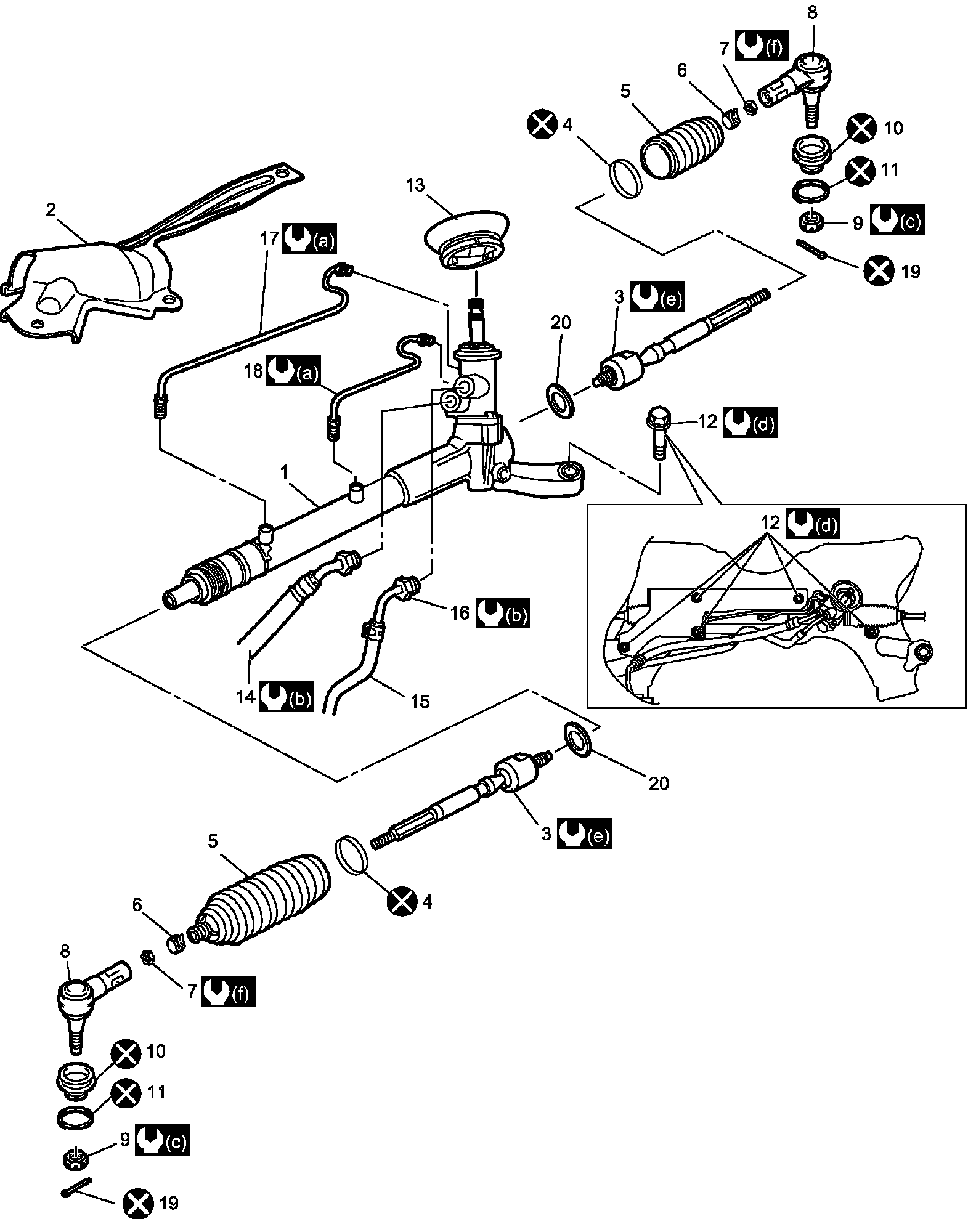

Steering Gear Case Assembly Components

Steering Gear Case Assembly Components








NOTE:
Component enclosed in broken line cannot be disassembled and adjusted.
