Brake Fluid Level Sensor/Switch: Testing and Inspection

Brake Fluid Level Switch Inspection

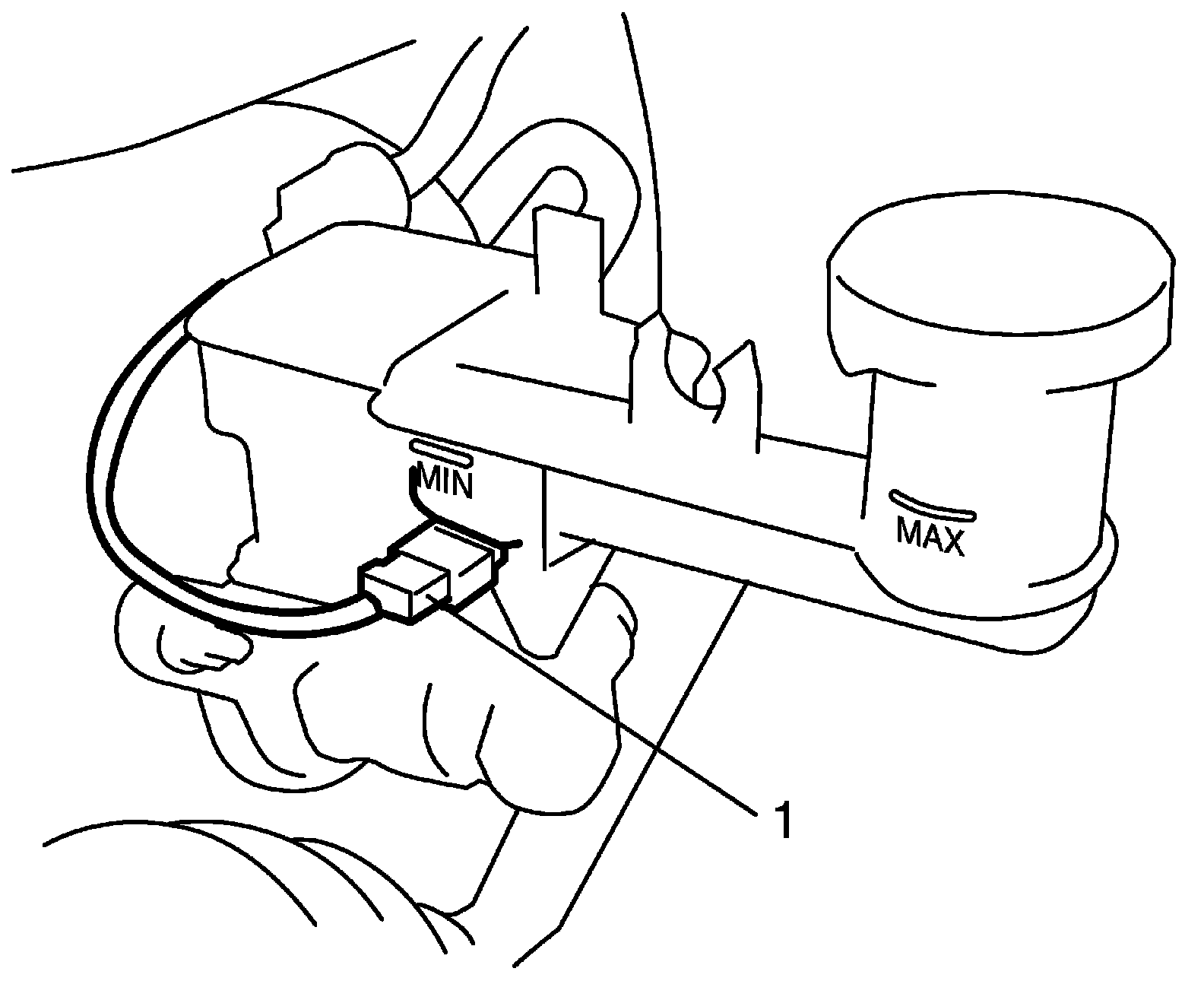

Check for continuity between terminals of brake fluid level switch coupler (1). If found defective, replace switch.

Brake fluid level switch specification
OFF position (float up): No continuity
ON position (float down): Continuity
