Keyless Entry Receiver: Service and Repair

Keyless Entry Receiver Removal and Installation (If Equipped)

Removal
1. Disconnect negative cable at battery.
2. Remove grove box or console box referring to Step 6 of Instrument Panel Removal and Installation or Console Box Components.
3. Disconnect keyless entry receiver coupler.

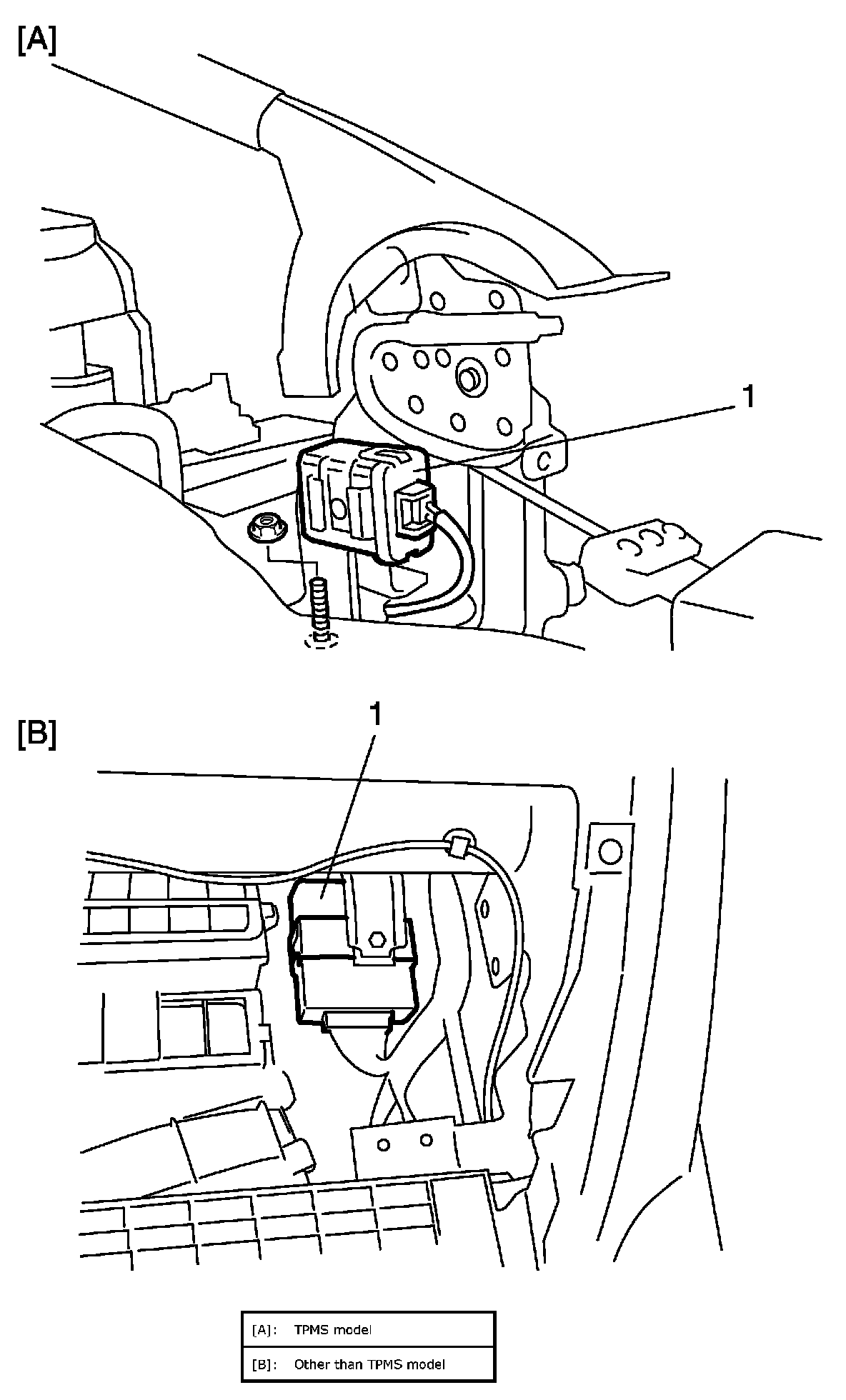

4. Remove keyless entry receiver (1).






Installation
Reverse removal procedure.
