Wiper Relay: Service and Repair

Rear Wiper Relay Removal and Installation

Removal
1. Disconnect negative (-) cable at battery.

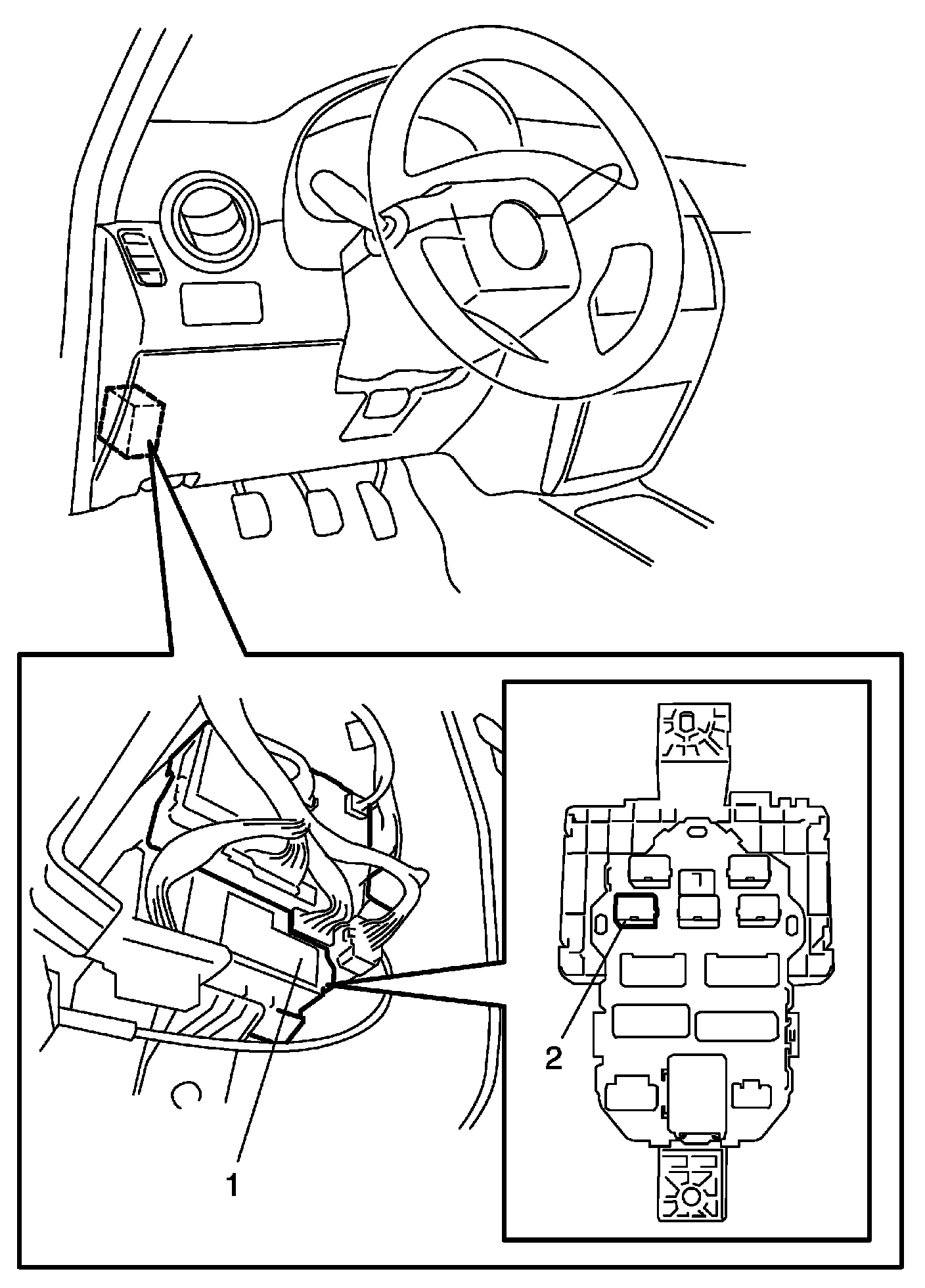

2. Remove junction block (1).
3. Remove rear wiper relay (2) from junction block.






Installation
Reverse removal procedure for installation.
