Windshield Washer Pump: Testing and Inspection

Washer Pump Inspection

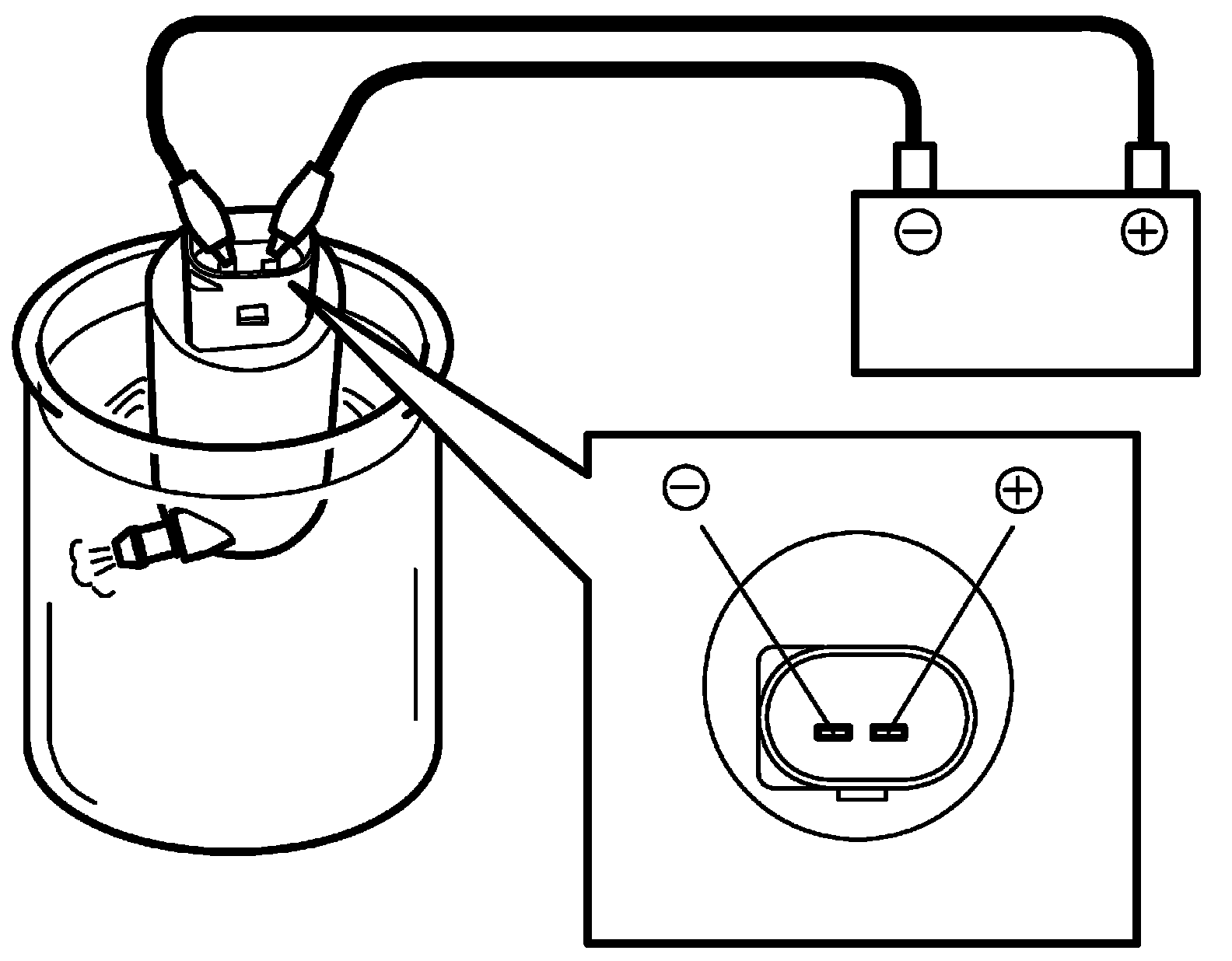

1. Connect battery positive (+) and negative (-) terminals to pump (+) and (-) terminals respectively.
2. Check windshield and rear washer pumps for operation. If pump does not operate, replace washer pump.
