Symptom Related Diagnostic Procedures

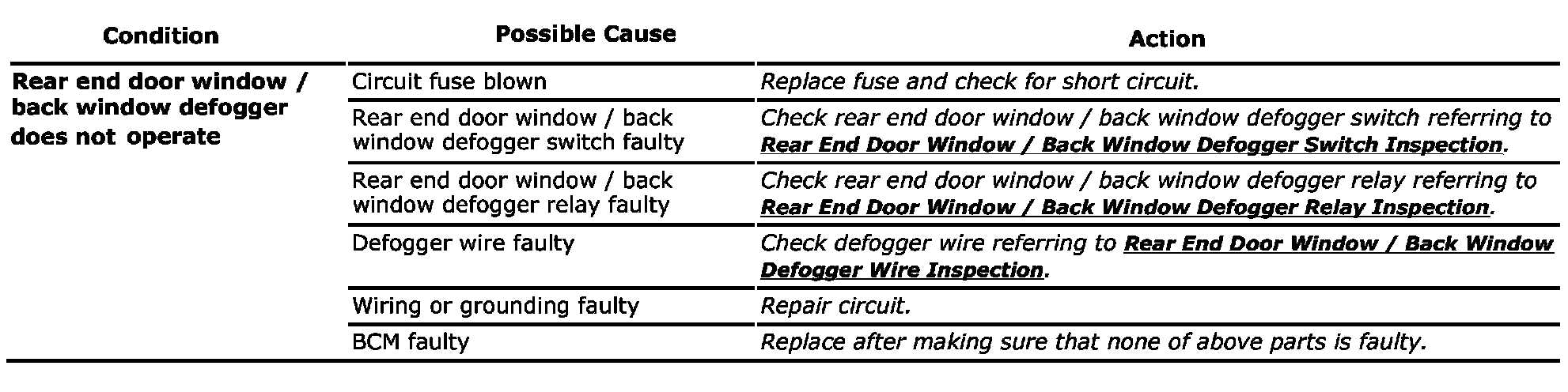

Rear End Door Window / Back Window Defogger Symptom Diagnosis

NOTE:
- Use of SUZUKI scan tool makes it easy to check whether a faulty condition is on the input side or output side of BCM. For checking procedure, refer to "Diagnosis Using Output Test Function of SUZUKI Scan Tool" under Scan Tool Data.
- Check each part in the order from the top of the following list.
