CVT Basic Check

CVT Basic Check
This check is important for troubleshooting when TCM has detected no DTC and no abnormality has been noted in Visual Inspection. Follow the flow carefully.

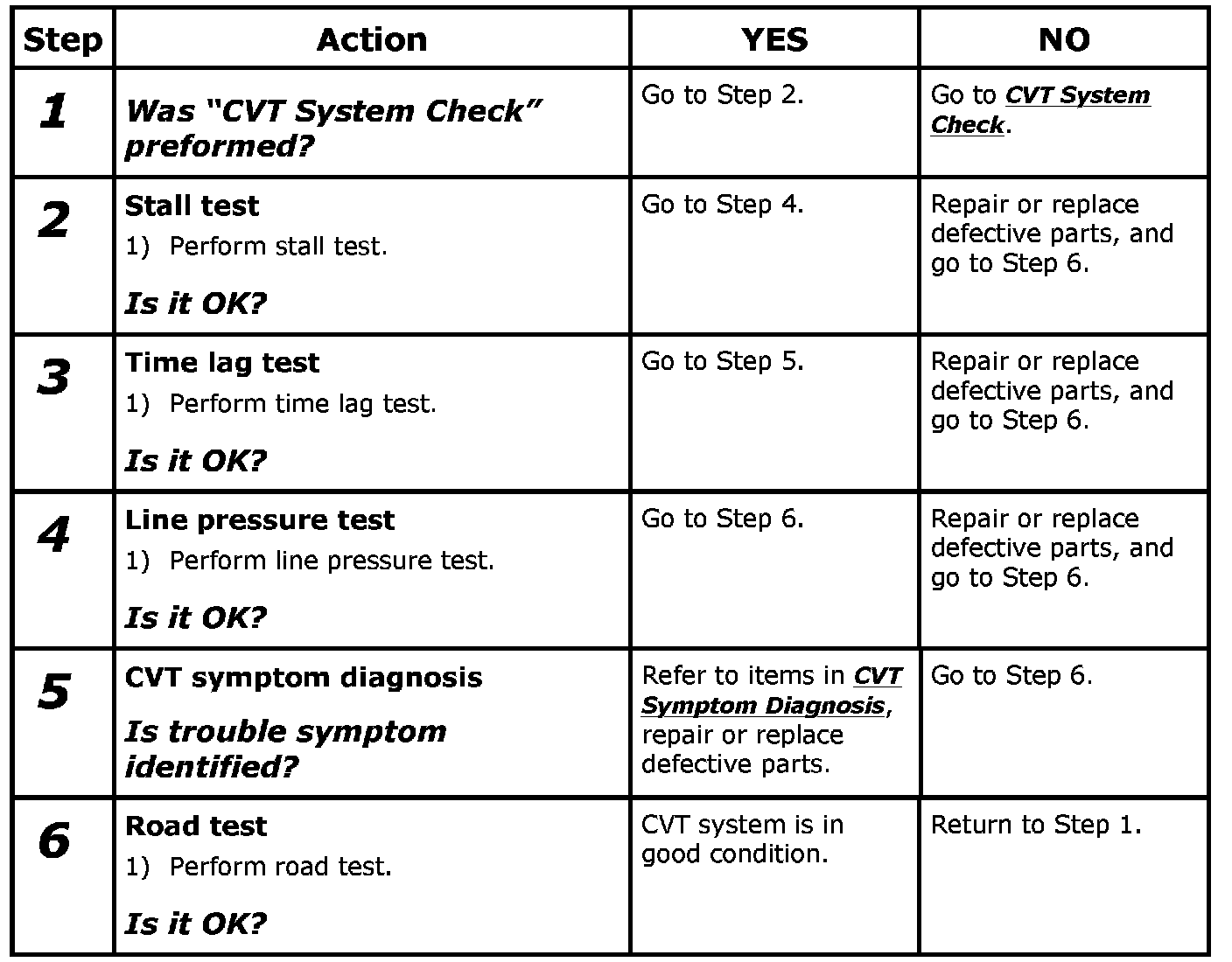

Step 1-6:
