Fluid Pan: Testing and Inspection

CVT Oil Pan Inspection
Reference: CVT Oil Pan Removal and Installation

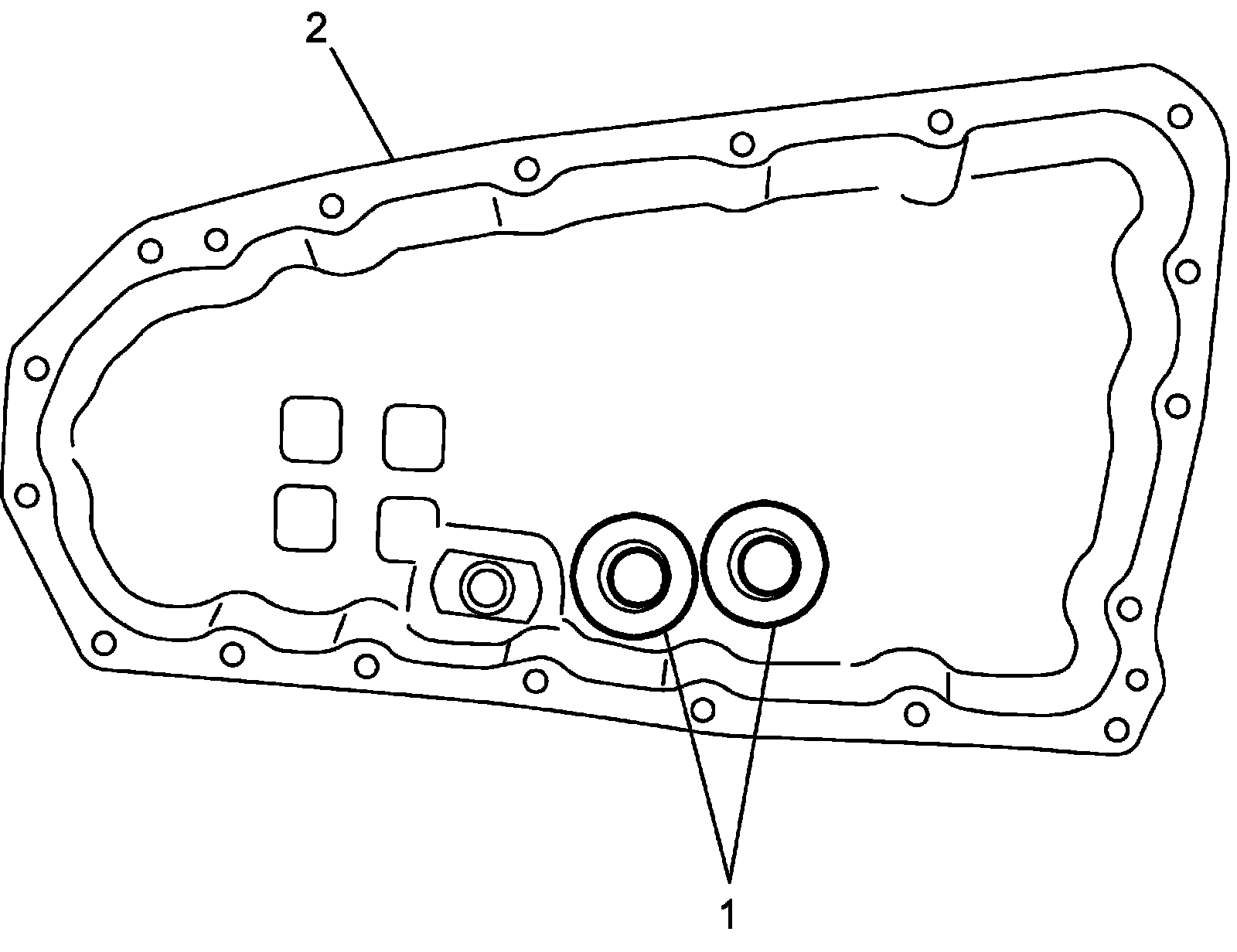

^ Check that no metal particles are attached to the oil cleaner magnets (1). If attached, clean.
^ Check CVT oil pan (2) for crack, deformation, and damage.
