Overhaul

Suspension Arm Bush Disassembly and Reassembly
Reference: Suspension Arm Removal and Installation

Disassembly
1) Cut off bush flange (rubber) (1) with knife.

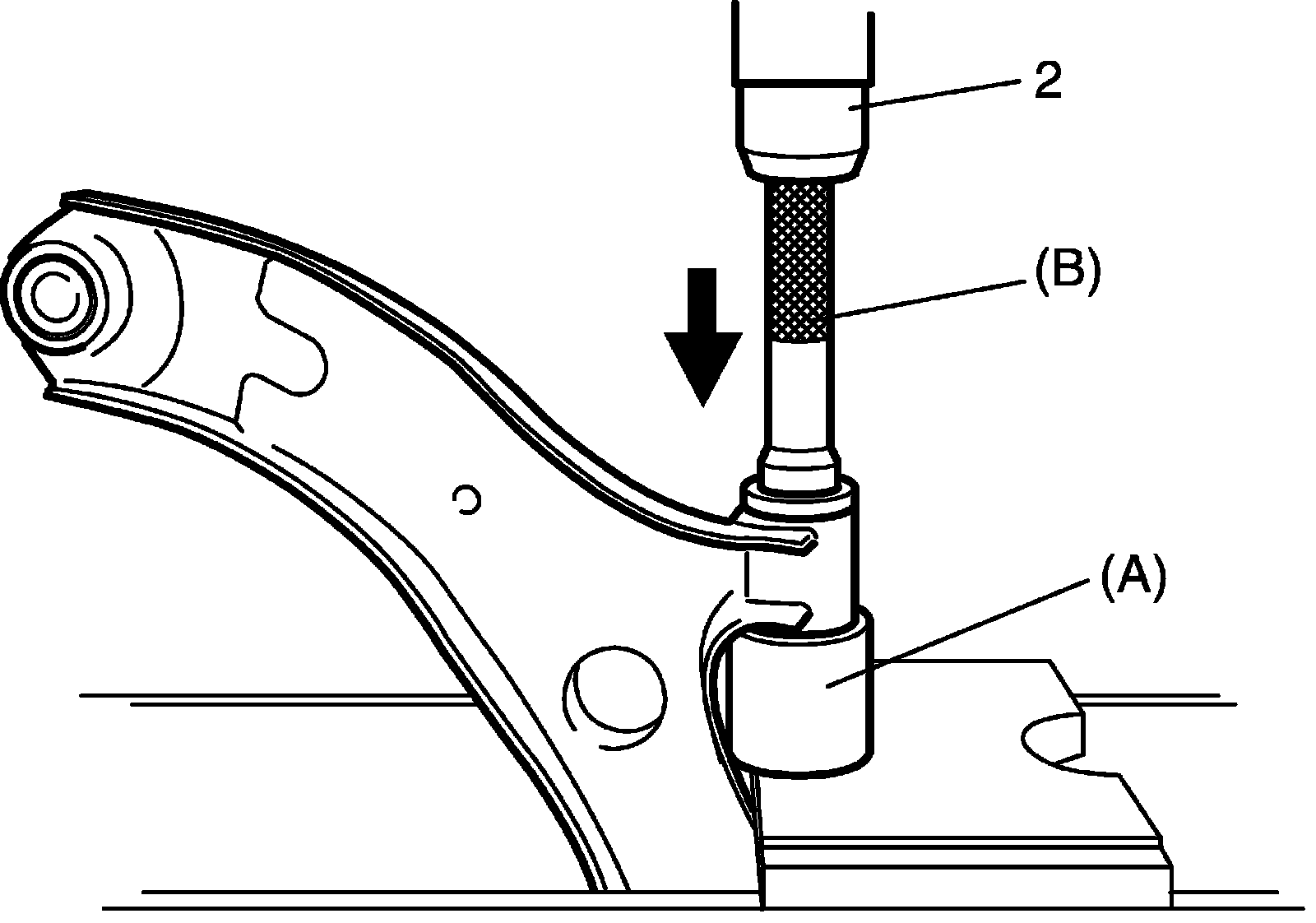

2) Push out bush by using hydraulic press (2) and special tools.

Special Tool
(A): 09943-76310
(B): 09913-75821





Reassembly

CAUTION:
Be sure to use new bush.

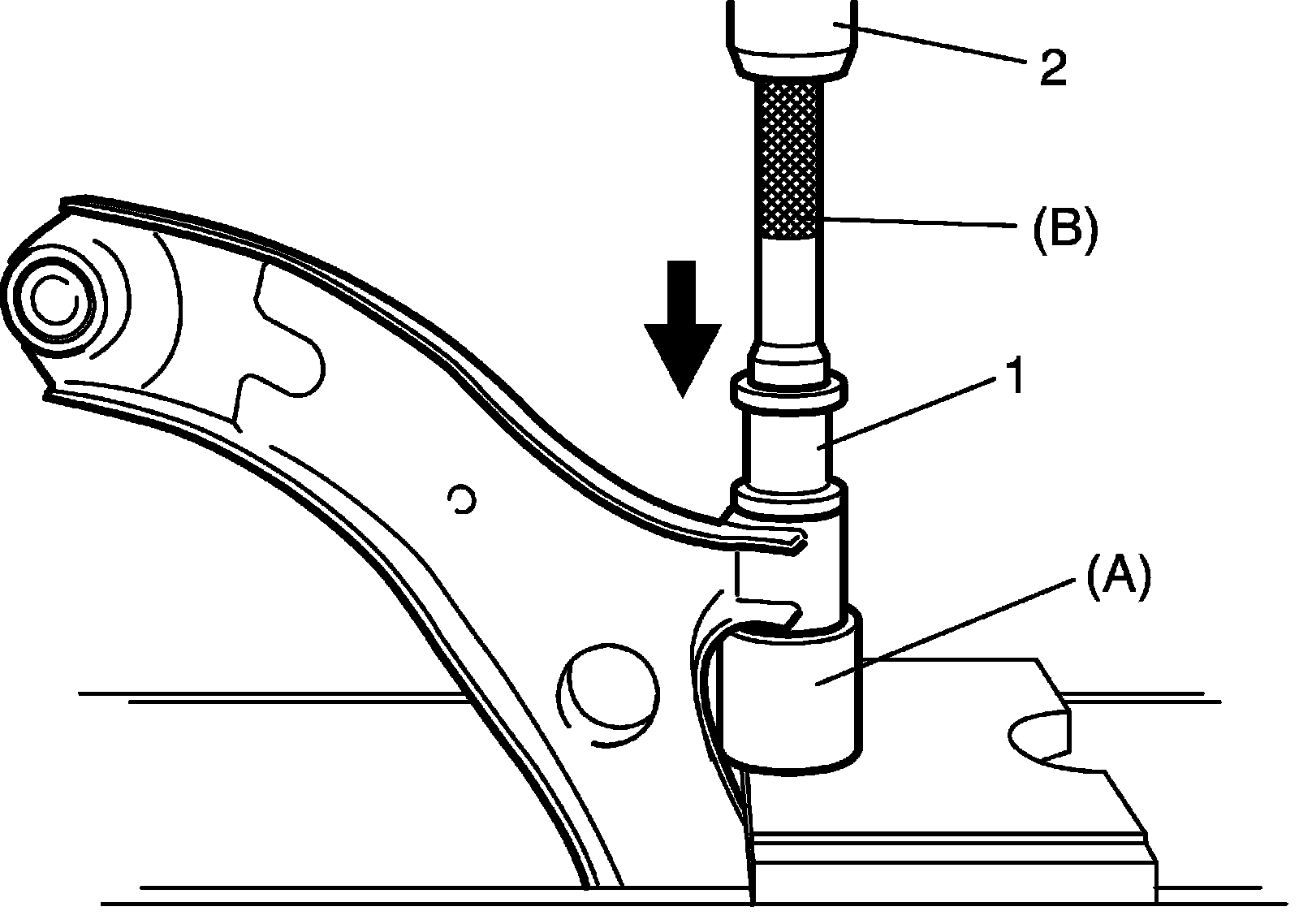

1) Press-fit front bush (1) by using special tools and press (2).

Special Tool
(A): 09943-76310
(B): 09913-75821

NOTE:
^ Before installing bush, apply soap water on its circumference to facilitate bush installation.





2) Press-fit bush (1) so that dimensions "A" and "B" in figure become equal.
