Centering Contact Coil Cable Assembly

Centering Contact Coil Cable Assembly
Reference: Contact Coil Cable Assembly Removal and Installation
1) Check that vehicles wheels (front tires) are set at straight-ahead position.
2) Check that ignition switch is at LOCK position.

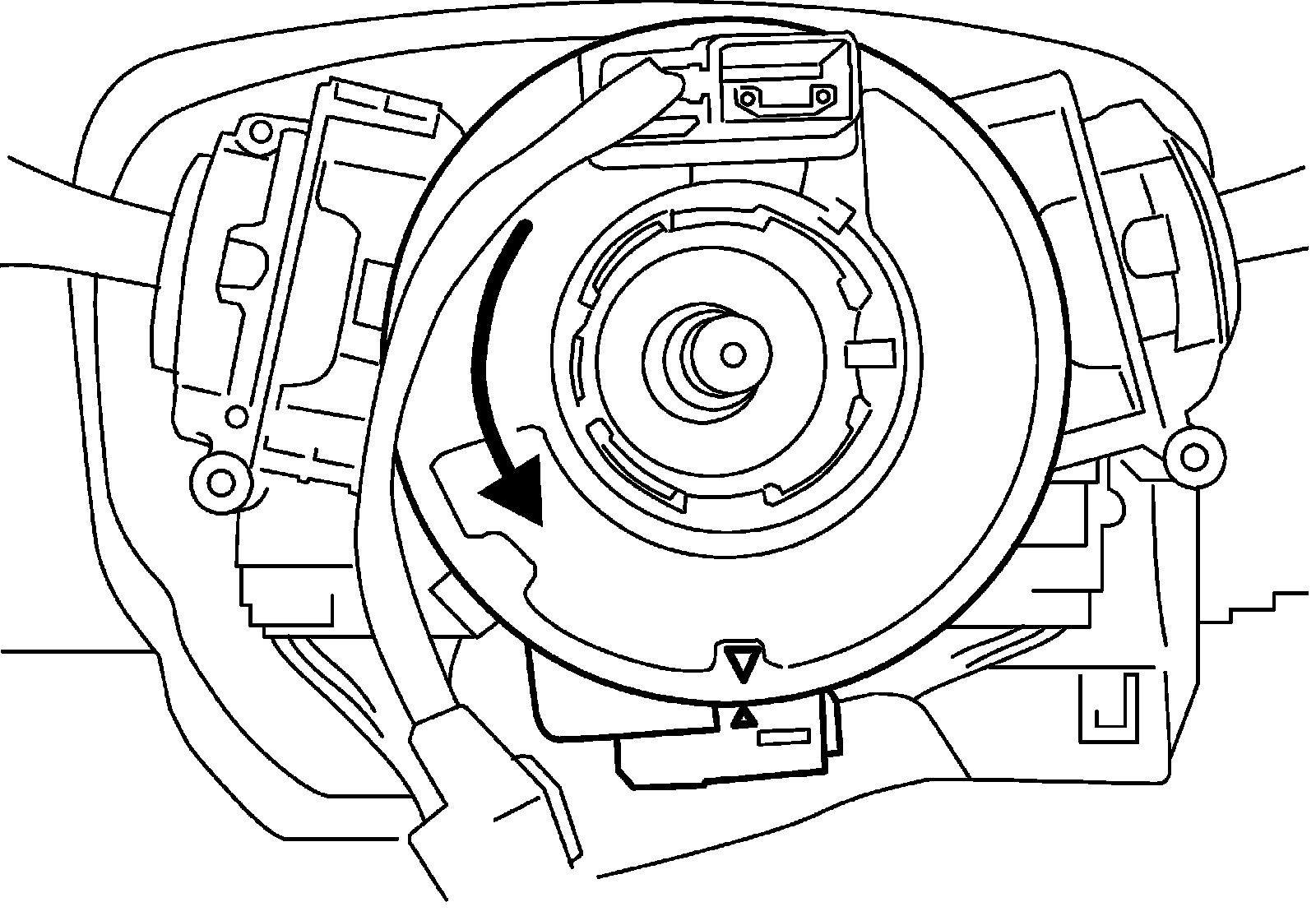

3) Turn contact coil counterclockwise slowly with a light force till contact coil will not turn any further.

NOTE:
Contact coil can turn about 5 turns at the maximum, that is, if it is at the center position, can turn about two and a half turns both clockwise and counterclockwise.

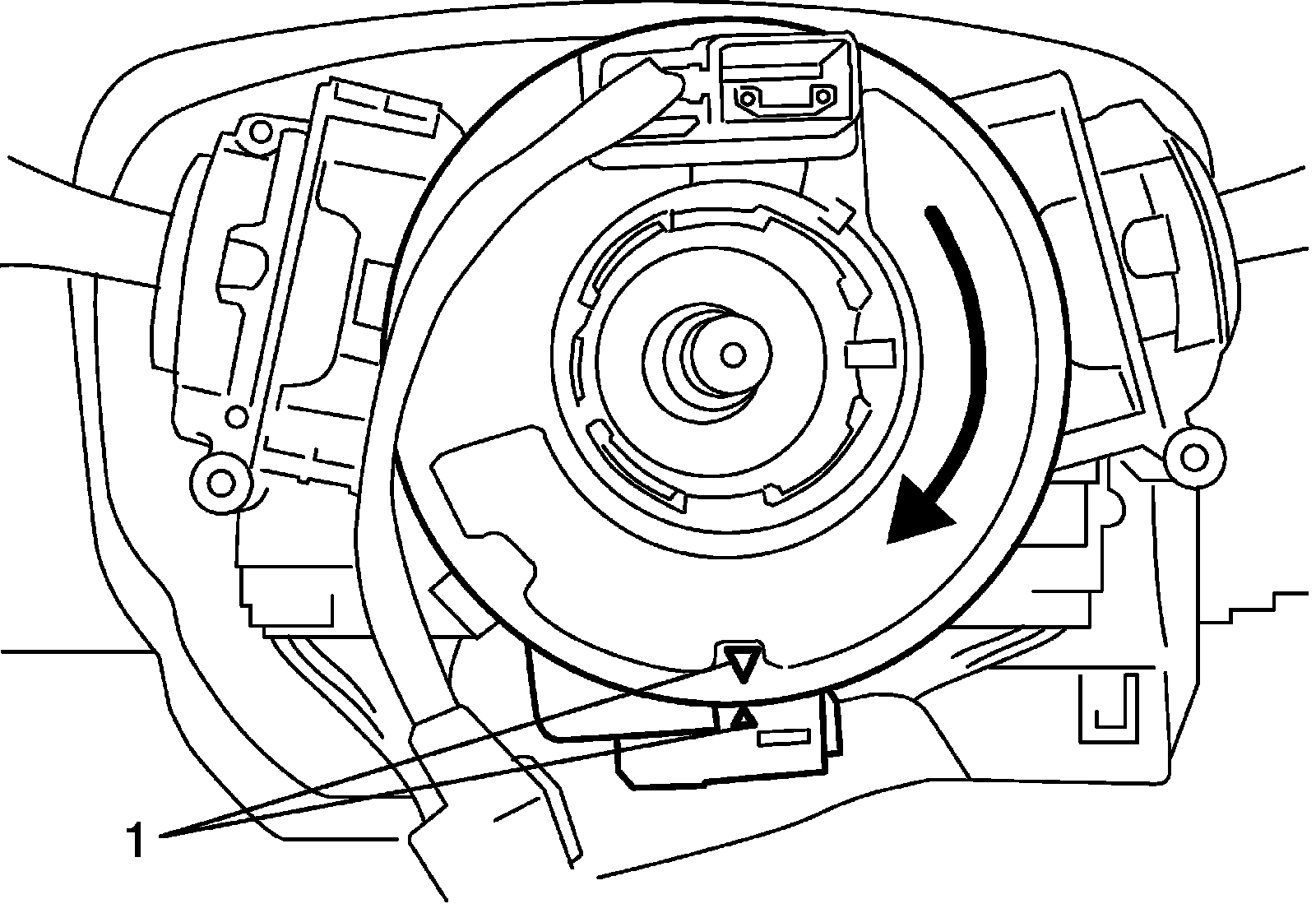

4) From the position where contact coil became unable to turn any further (it stopped), turn it back clockwise about two and a half rotations and align center mark with alignment mark (1).
