Exhaust Manifold

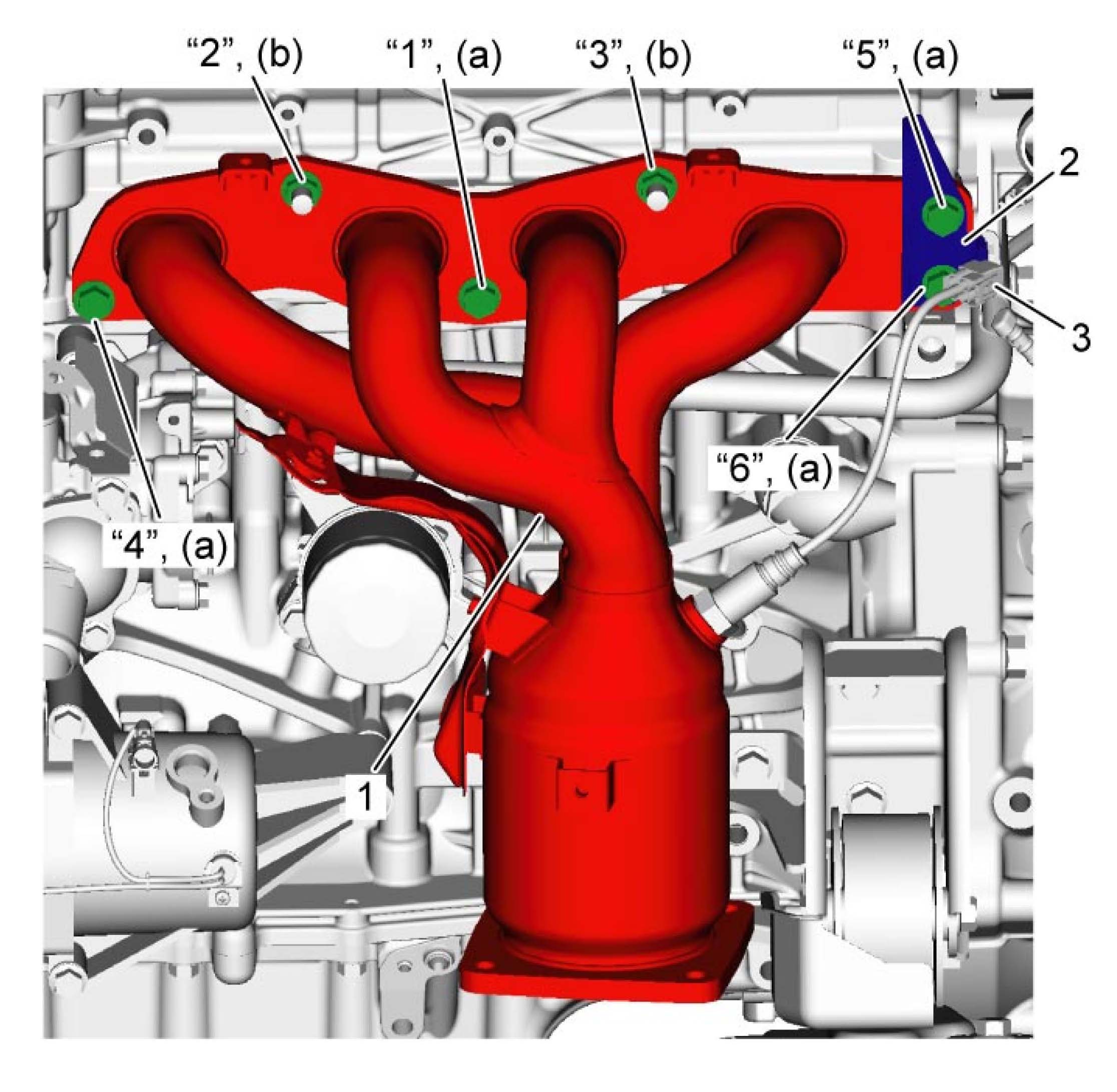

Exhaust manifold





Bolt (a) 50 Nm (5.1 kg-m, 37.0 lbf-ft)
Nut (b) 50 Nm (5.1 kg-m, 37.0 lbf-ft)
