Fuel System Inspection

Fuel System Inspection

WARNING: When performing the following procedure, be sure to observe Precautions on Fuel System Service in order to reduce the risk of fire and personal injury.

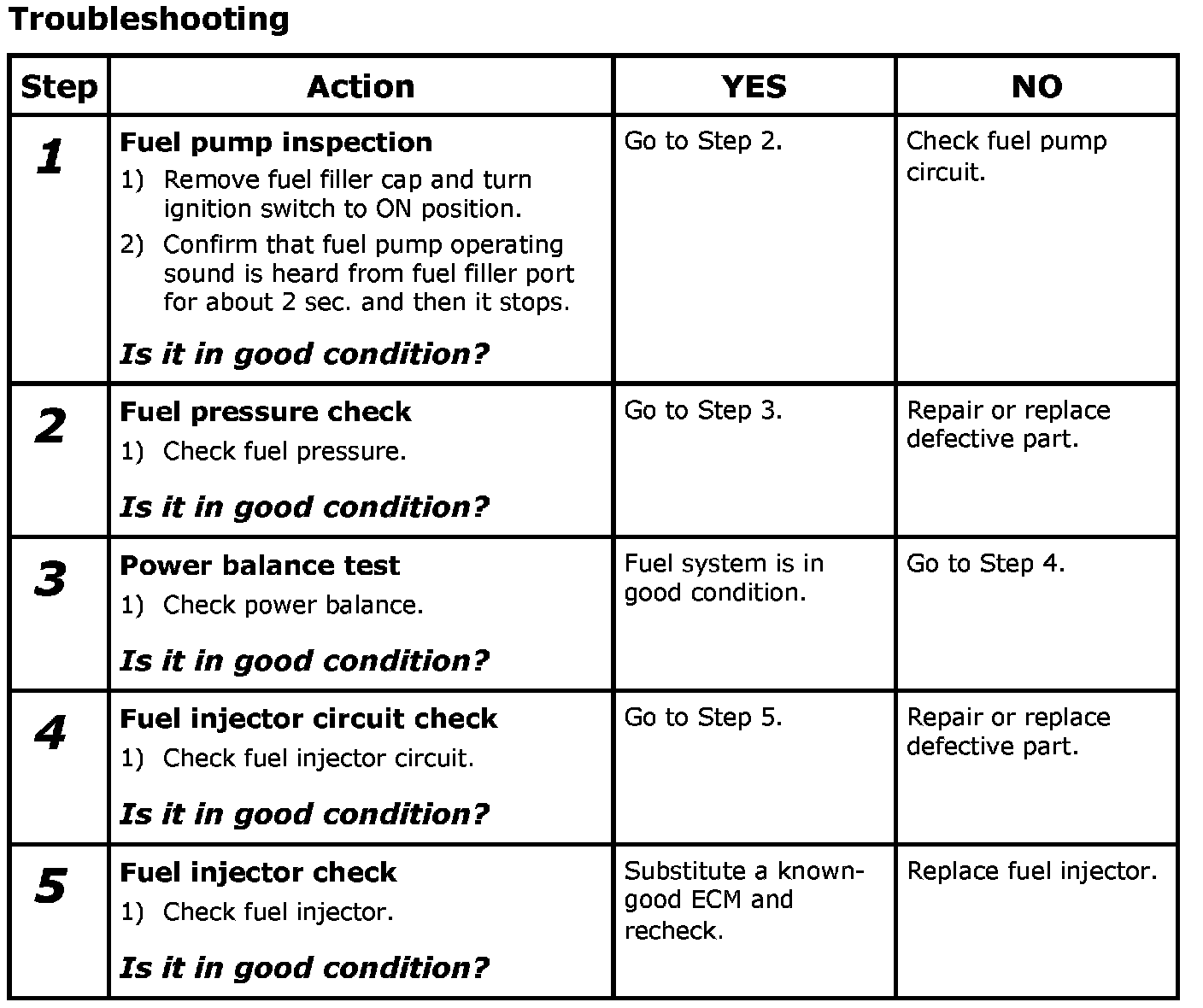

Troubleshooting

Step 1-5:
