Positive Crankcase Ventilation Valve: Service and Repair

PCV Valve Removal and Installation

Removal
1. Remove engine cover.
2. Disconnect PCV hose from PCV valve.
3. Remove PCV valve from cylinder head cover.

Installation
Reverse removal procedure for installation noting the following.

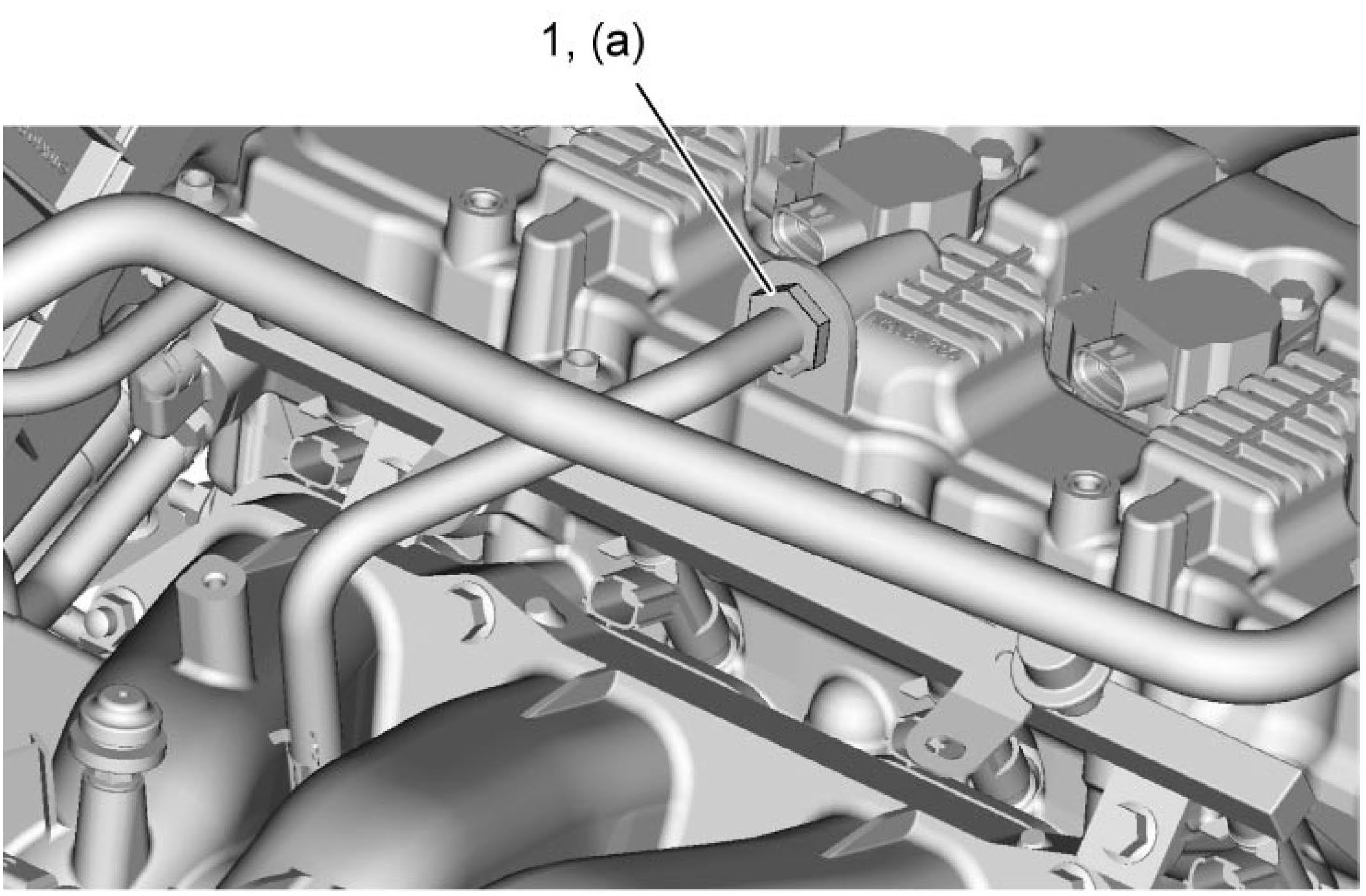

- Apply sealant to thread part of PCV valve (1).
- Tighten PCV valve to specified torque.

Tightening torque
PCV valve (a): 2.5 N.m (0.25 kg-m, 2.0 lbf-ft)

- Connect PCV hose to PCV valve securely.
