Wheels and Tires: Testing and Inspection

Suspension, Wheels and Tires Symptom Diagnosis

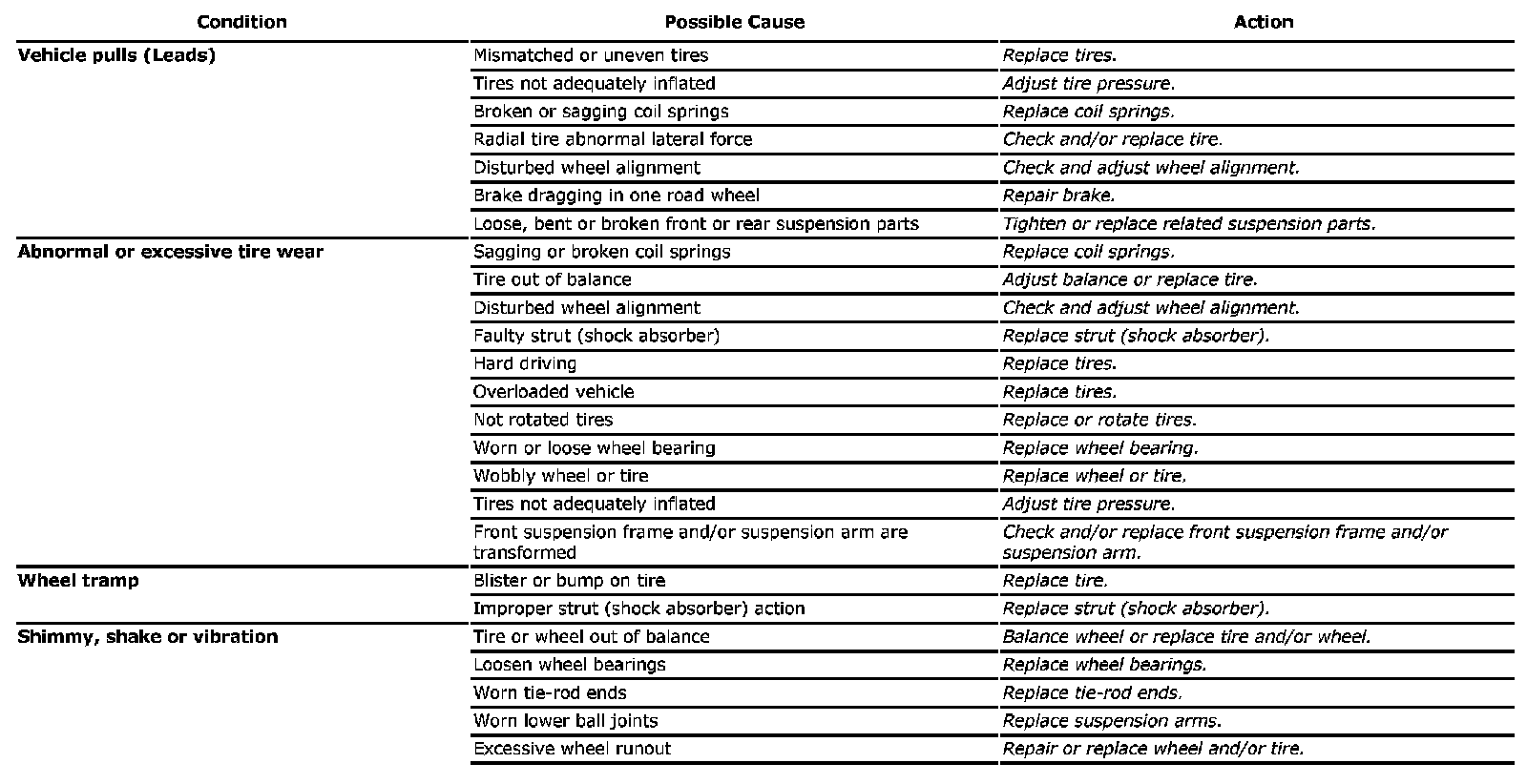

Suspension, Wheels And Tire Symptom Diagnosis (Part 1):

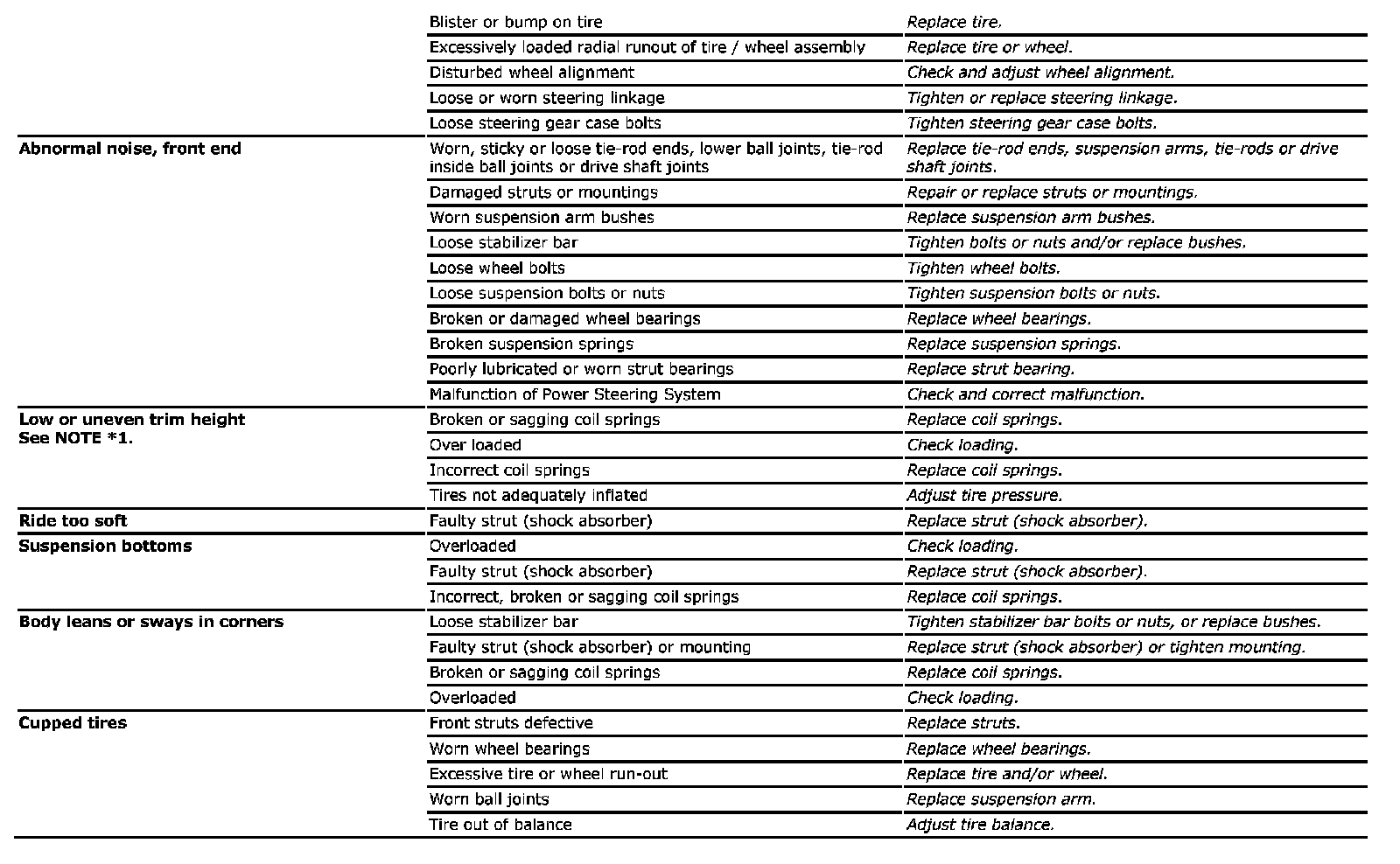

Suspension, Wheels And Tire Symptom Diagnosis (Part 2):

Note:

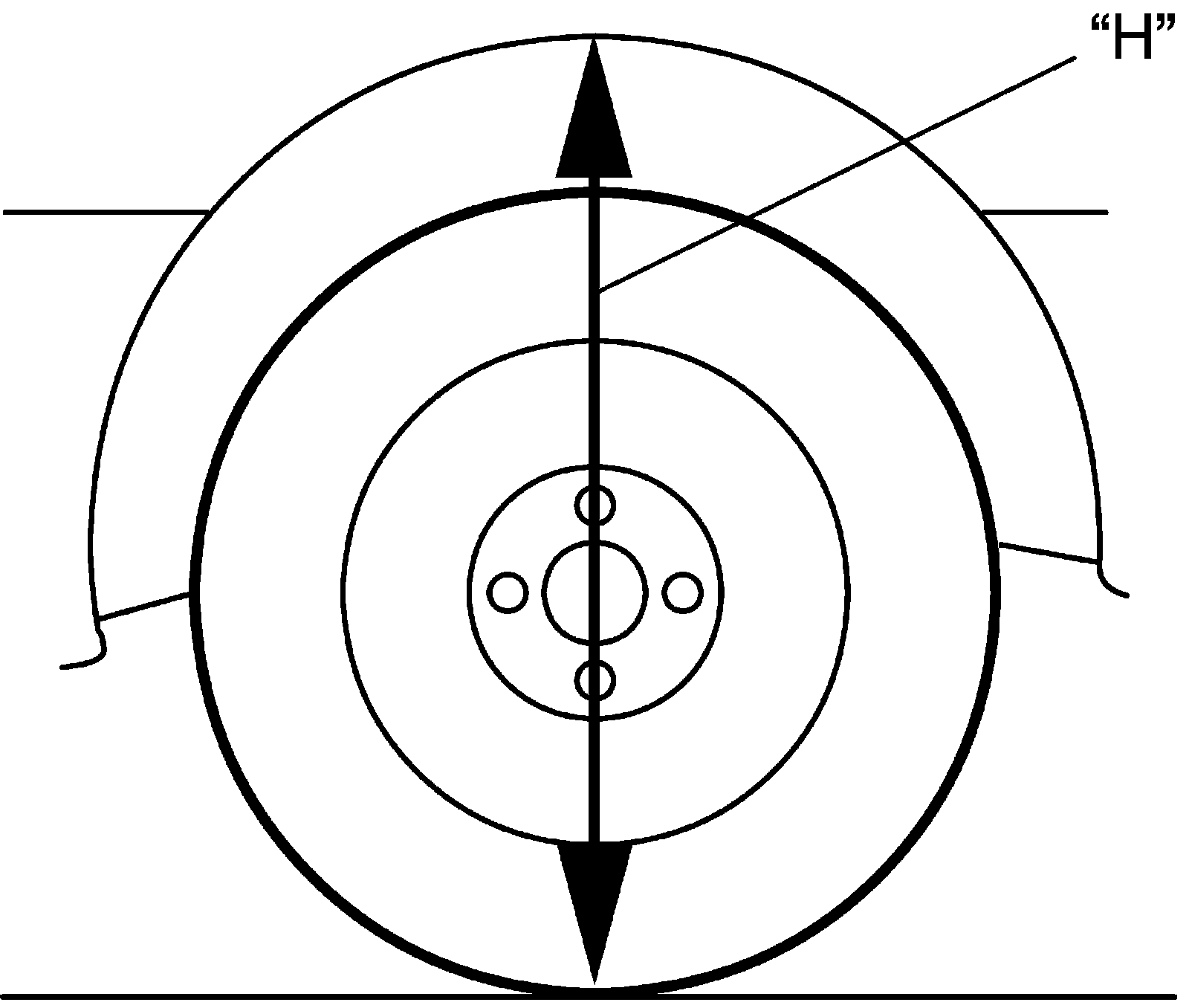

*1: Right-to-left Trim height ("H") difference should be within 15mm (0.6 in.) with curb weight. (same with rear side.)
