Drive Belt: Adjustments

Compressor Drive Belt Inspection and Adjustment

1. Inspect accessory drive belt for cracks, cuts, deformation, wear and cleanliness.
If any abnormality is found, replace accessory drive belt.

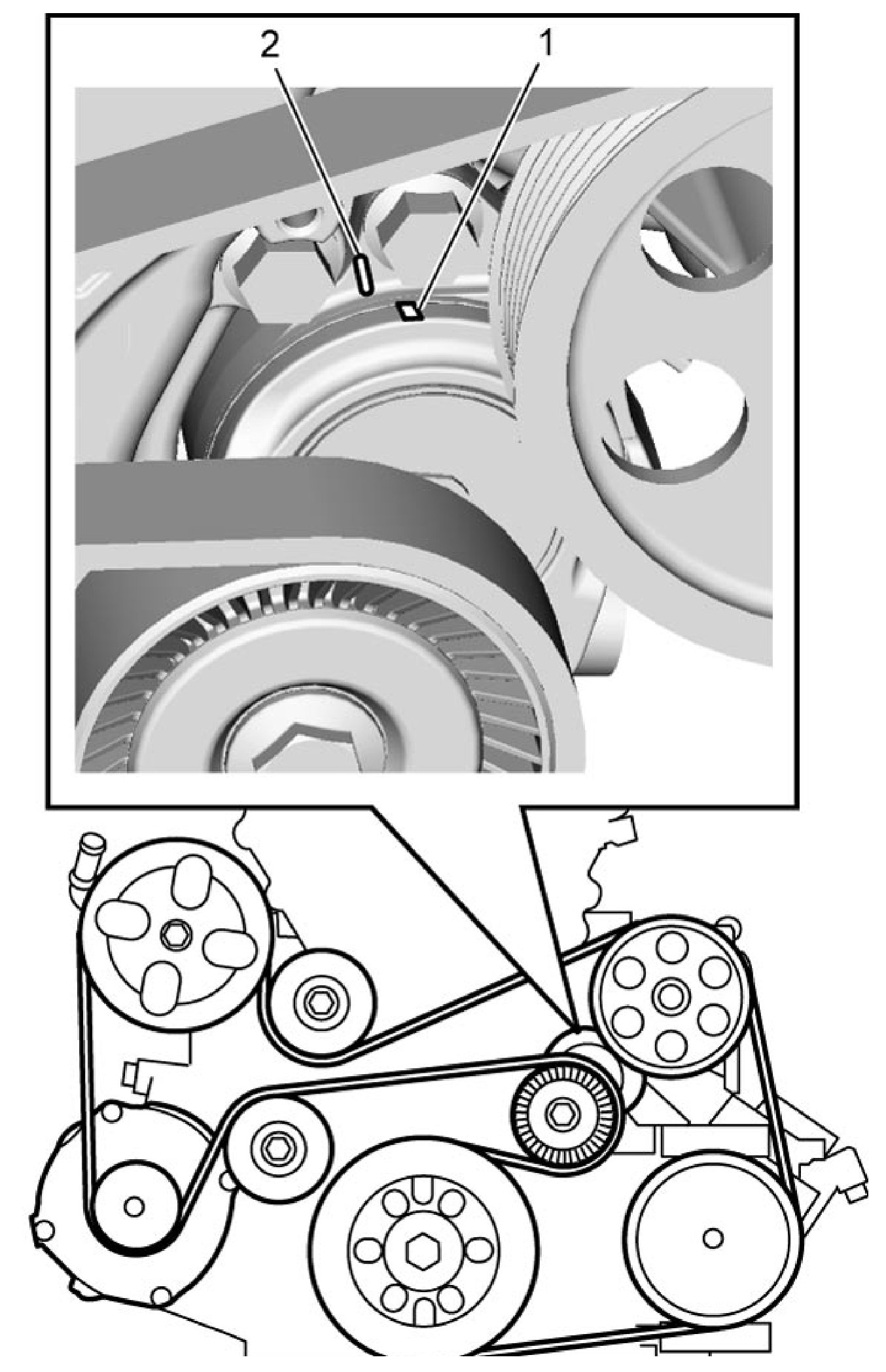

2. Check that tension indicator (1) is on the right of indicator (2) when it is viewed from crankshaft pulley side.
If indicator (1) is on the left of Indicator (2), replace accessory drive belt.
