E Connectors

Engine Compartment

E: Main Harness

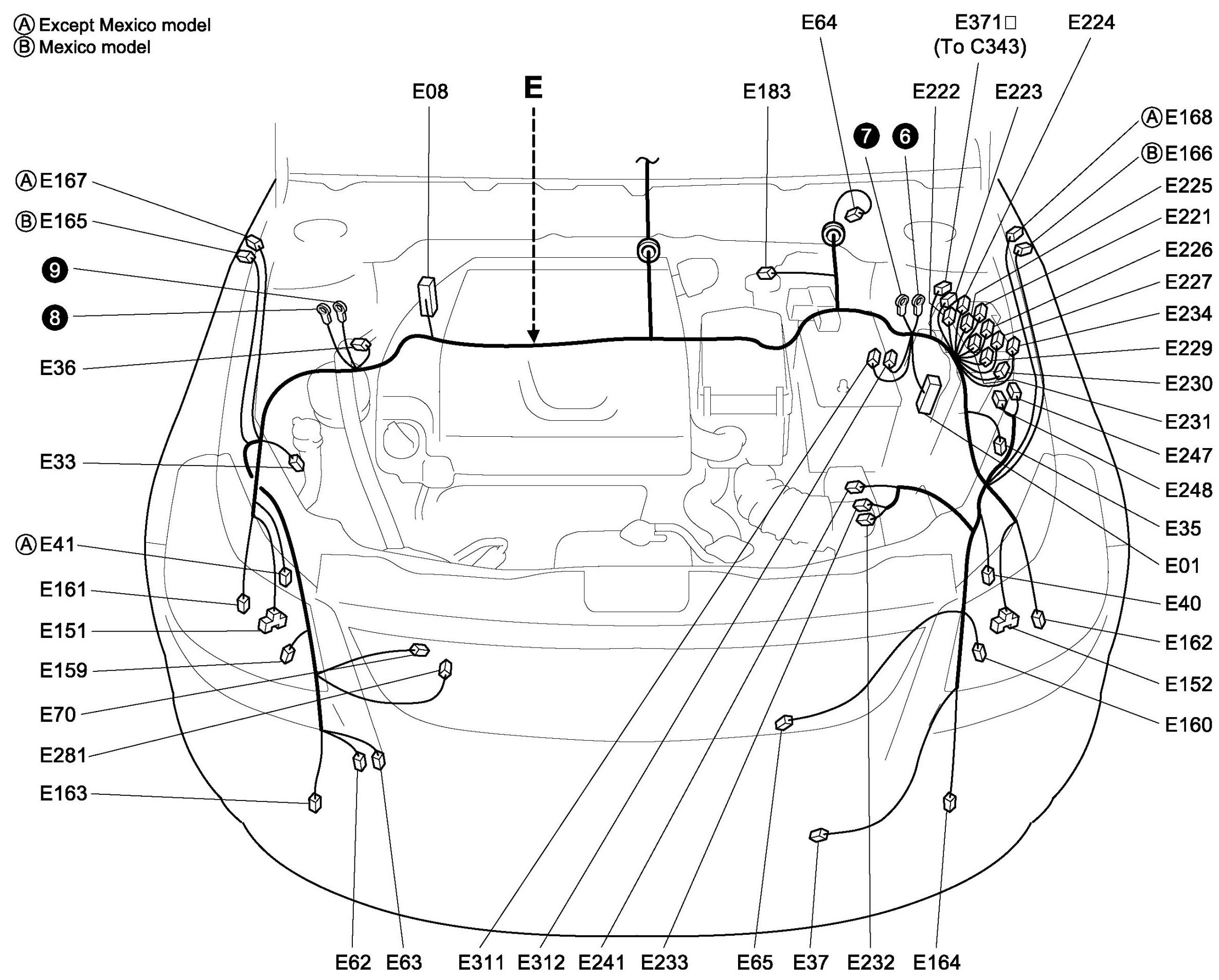

E: Main Harness View:

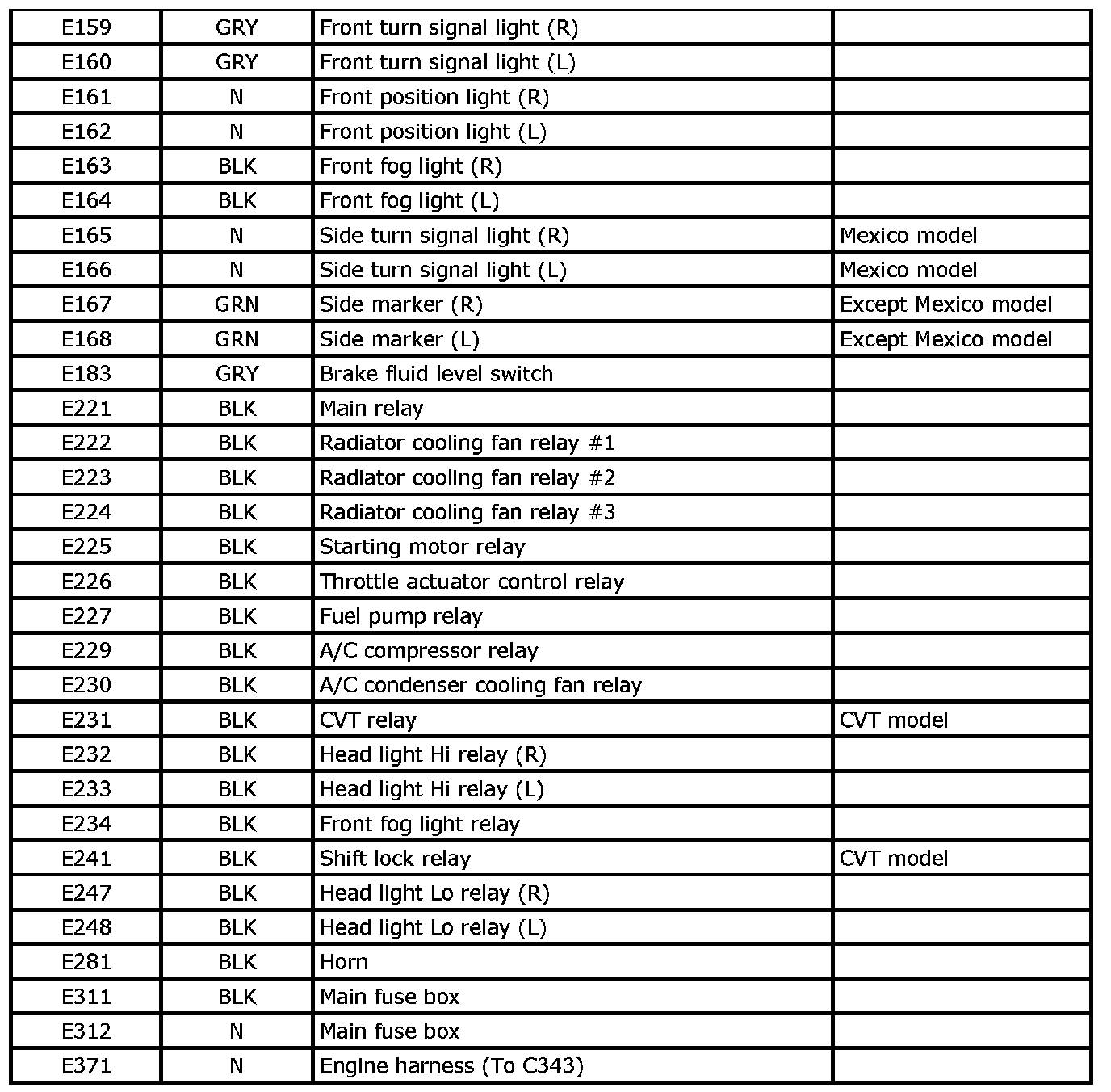

E: Main Harness Index (Part 1):

E: Main Harness Index (Part 2):

Instrument Panel

E: Main Harness, Power Steering Wire

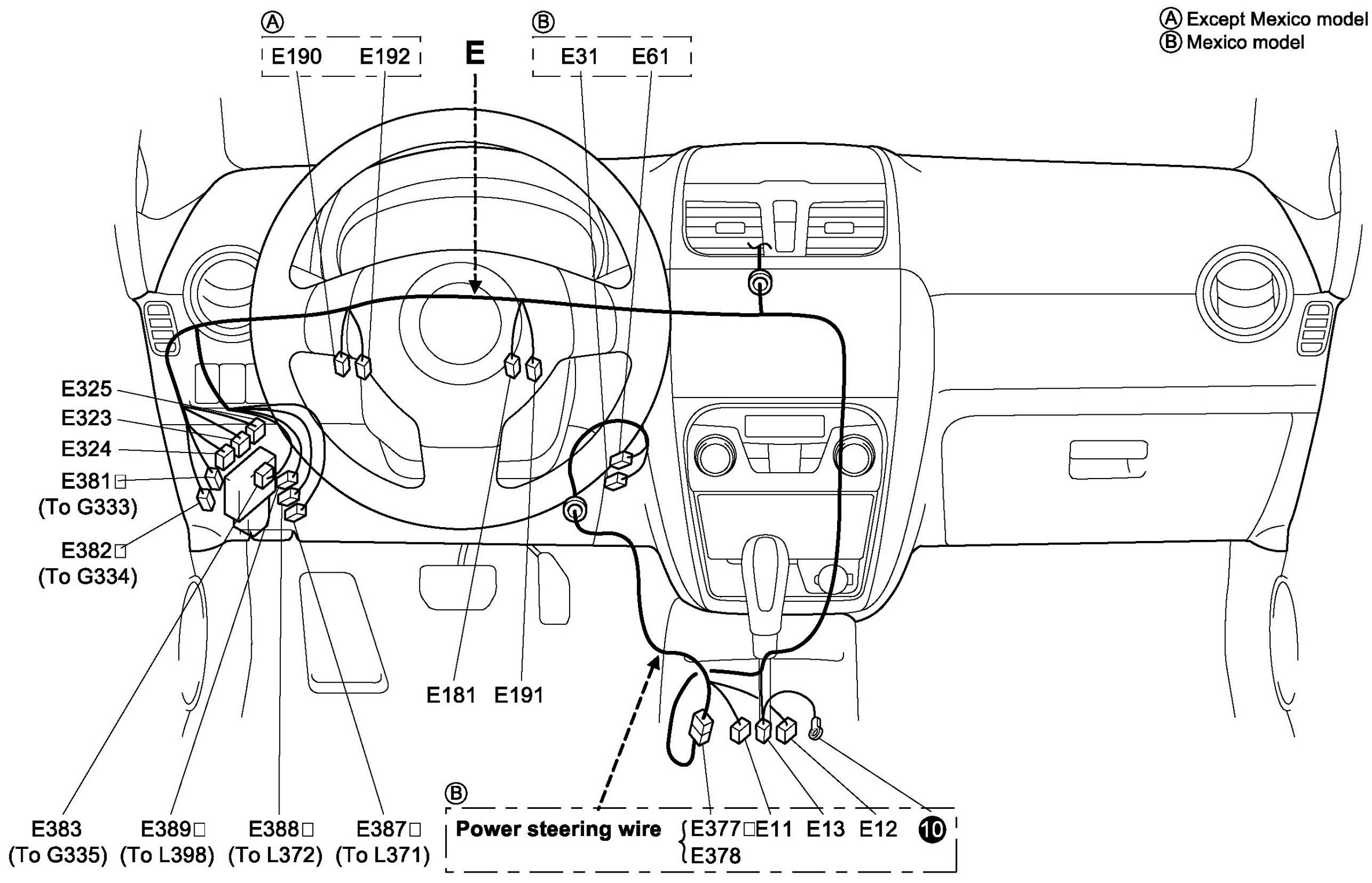

E: Main Harness, Power Steering Wire View:

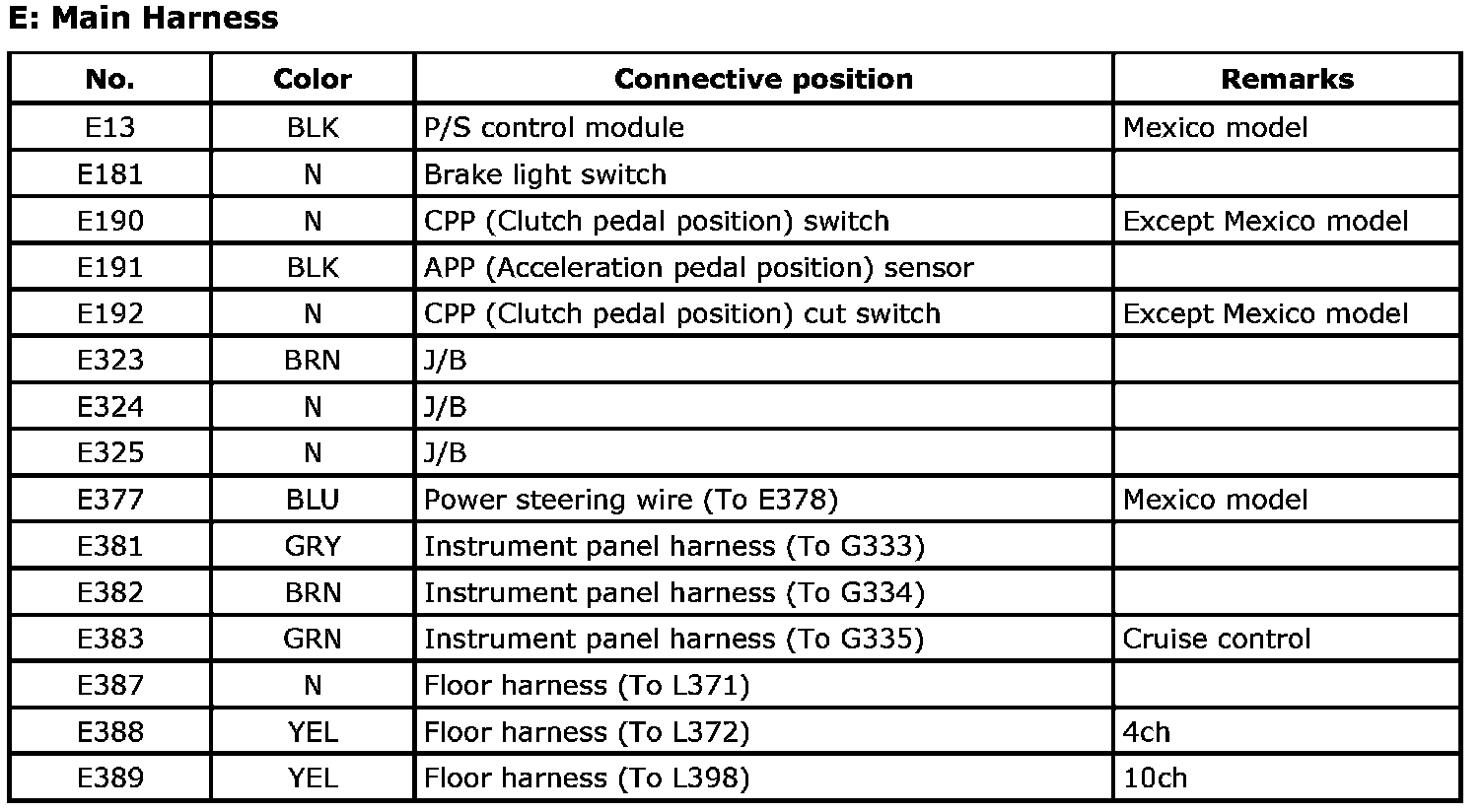

E: Main Harness Index:

E: Power Steering Wire (Mexico Model) Index:
