C Connectors

Engine Compartment

C: Engine Harness

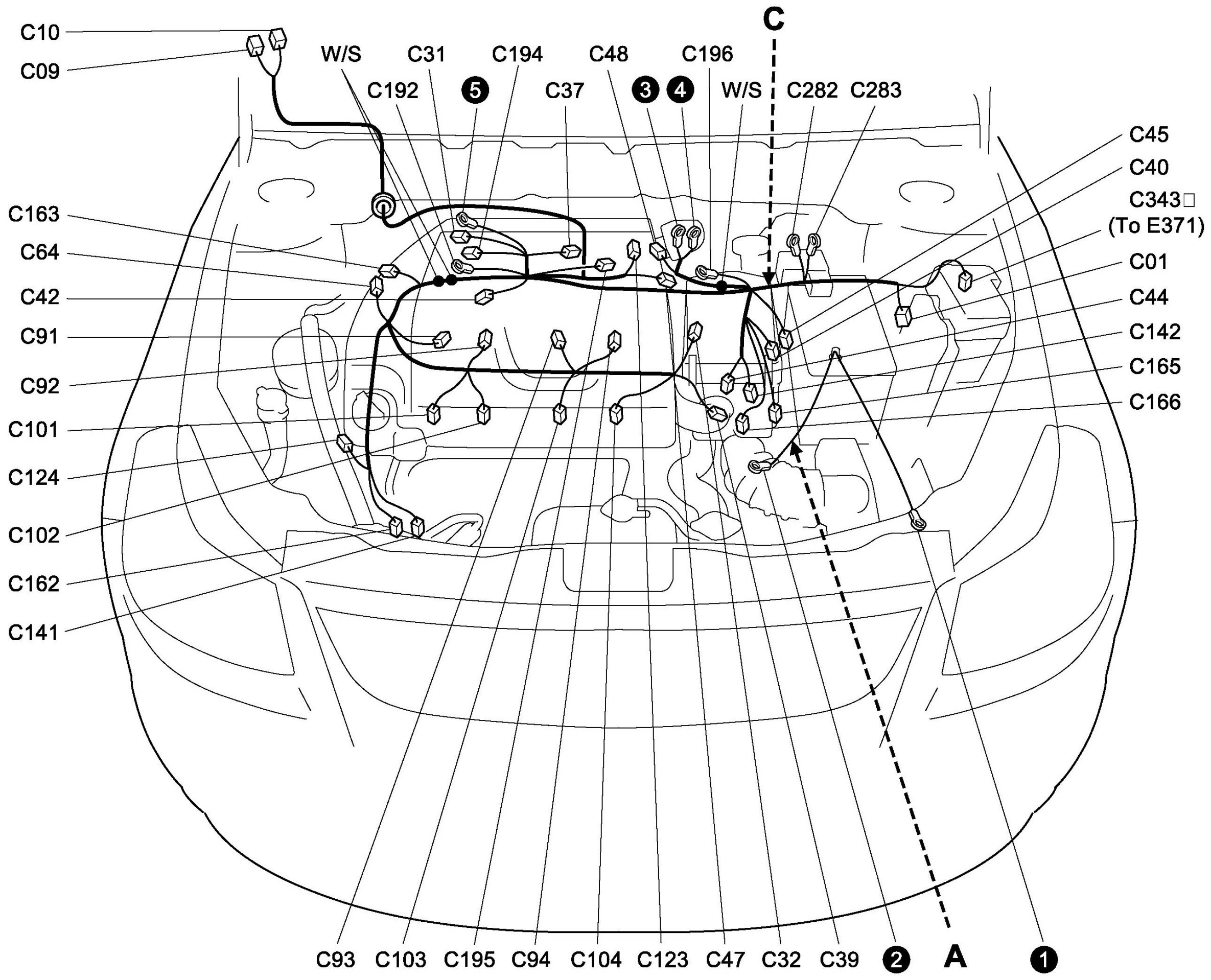

A: Battery Cable / C: Engine Harness View:




C: Engine Harness Index (Part 1):

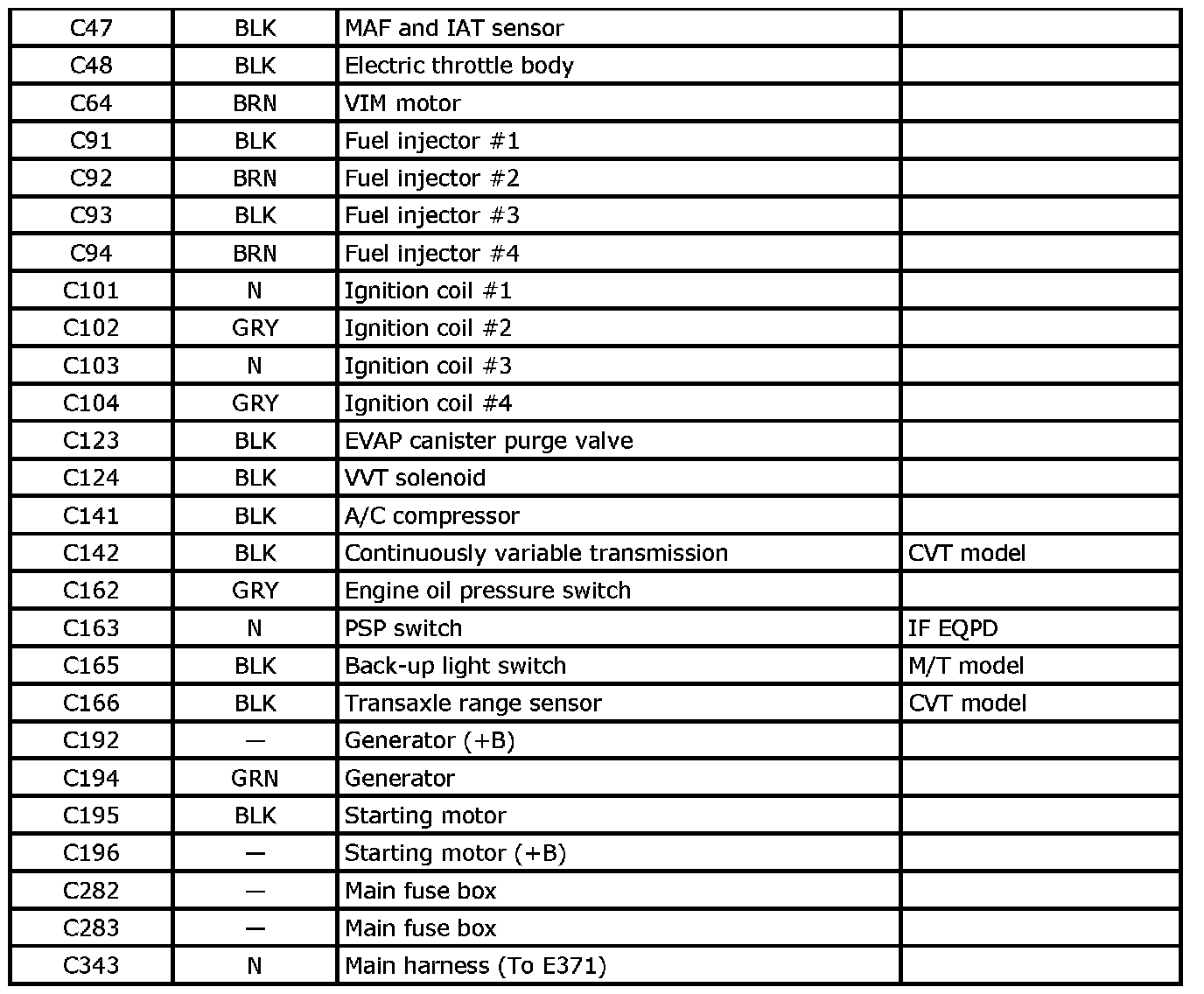

C: Engine Harness Index (Part 2):
