Backup Lamp Switch: Testing and Inspection

Back Up Lamp Switch Inspection
Reference: Back Up Lamp Switch Removal and Installation

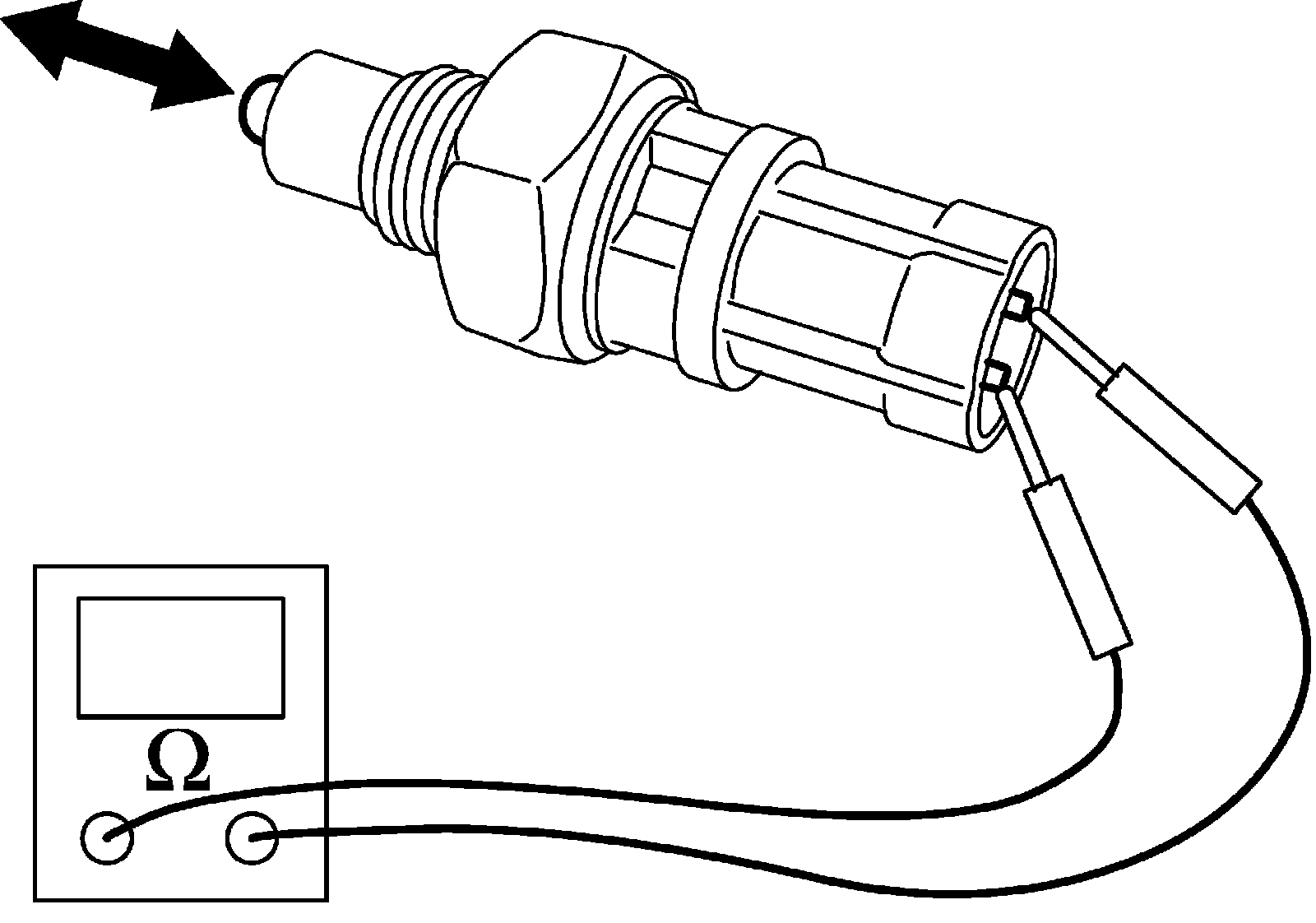

Check backup lamp switch for function using ohmmeter.

Back up lamp switch specification
Switch ON (Push): Continuity
Switch OFF (Release): No continuity
