HVAC Unit Removal and Installation (Non-A/C)

HVAC Unit Removal and Installation (Non-A/C)

For manual A/C and auto A/C, refer to HVAC Unit Removal and Installation:Manual A/C.

Removal
1. Drain engine coolant referring to Cooling System Draining, and then disconnect heater hoses from HVAC unit.
2. Remove cowl top cover from vehicle body referring to Cowl Top and Front Lower Crossmember Components.
3. Remove instrument panel from vehicle body referring to Instrument Panel Removal and Installation.

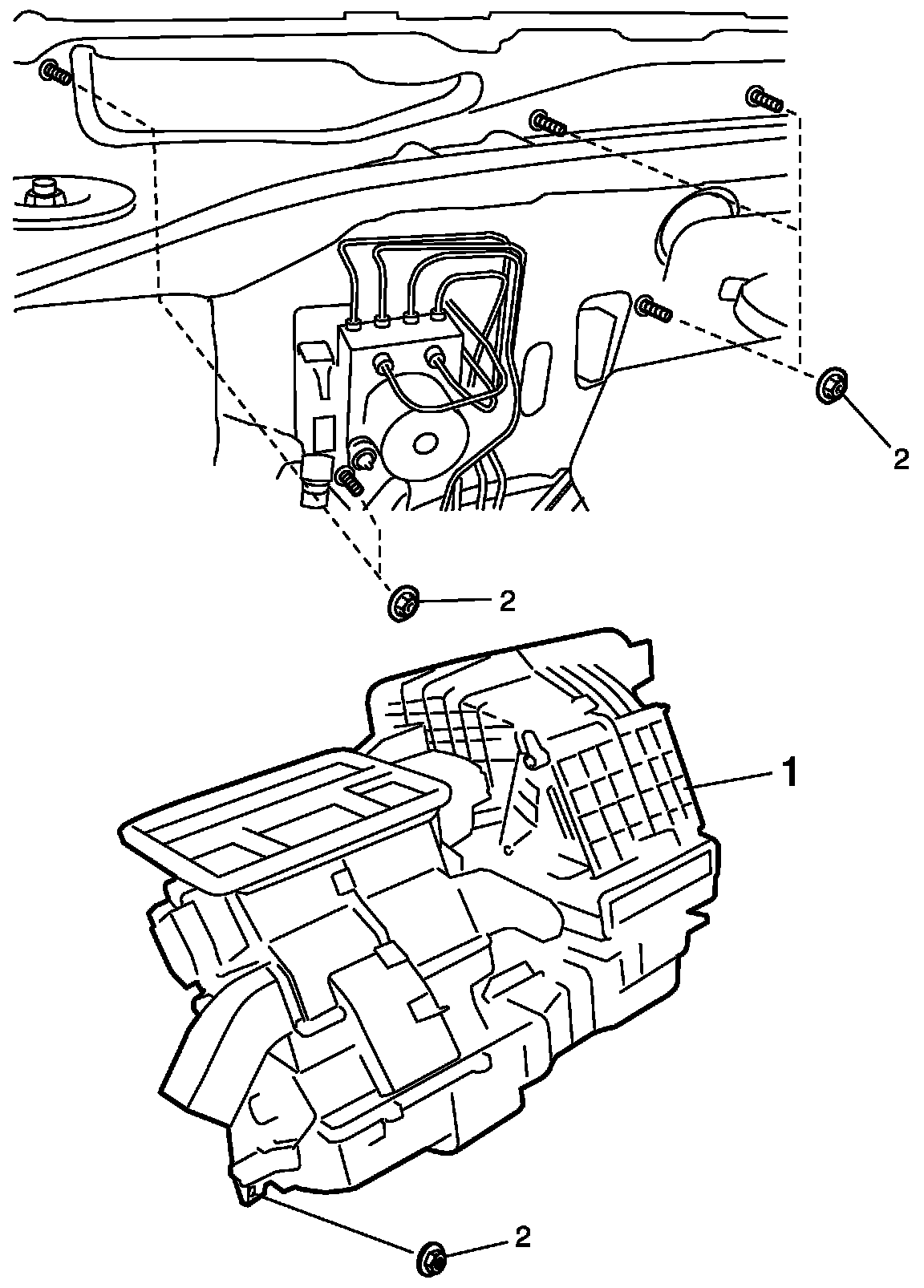

4. Remove HVAC unit (1) from vehicle body by removing nuts (2).







Installation
Reverse removal procedure noting the following instructions.
- Be careful not to catch any cable and wiring harness in inappropriate position.
- Adjust control cables of HVAC control unit referring to HVAC Control Unit Removal and Installation.
- Refill cooling system with coolant referring to Cooling System Refilling.
