Blower Motor: Service and Repair

Blower Motor Removal and Installation

Removal

1. Disconnect negative (-) cable from battery.

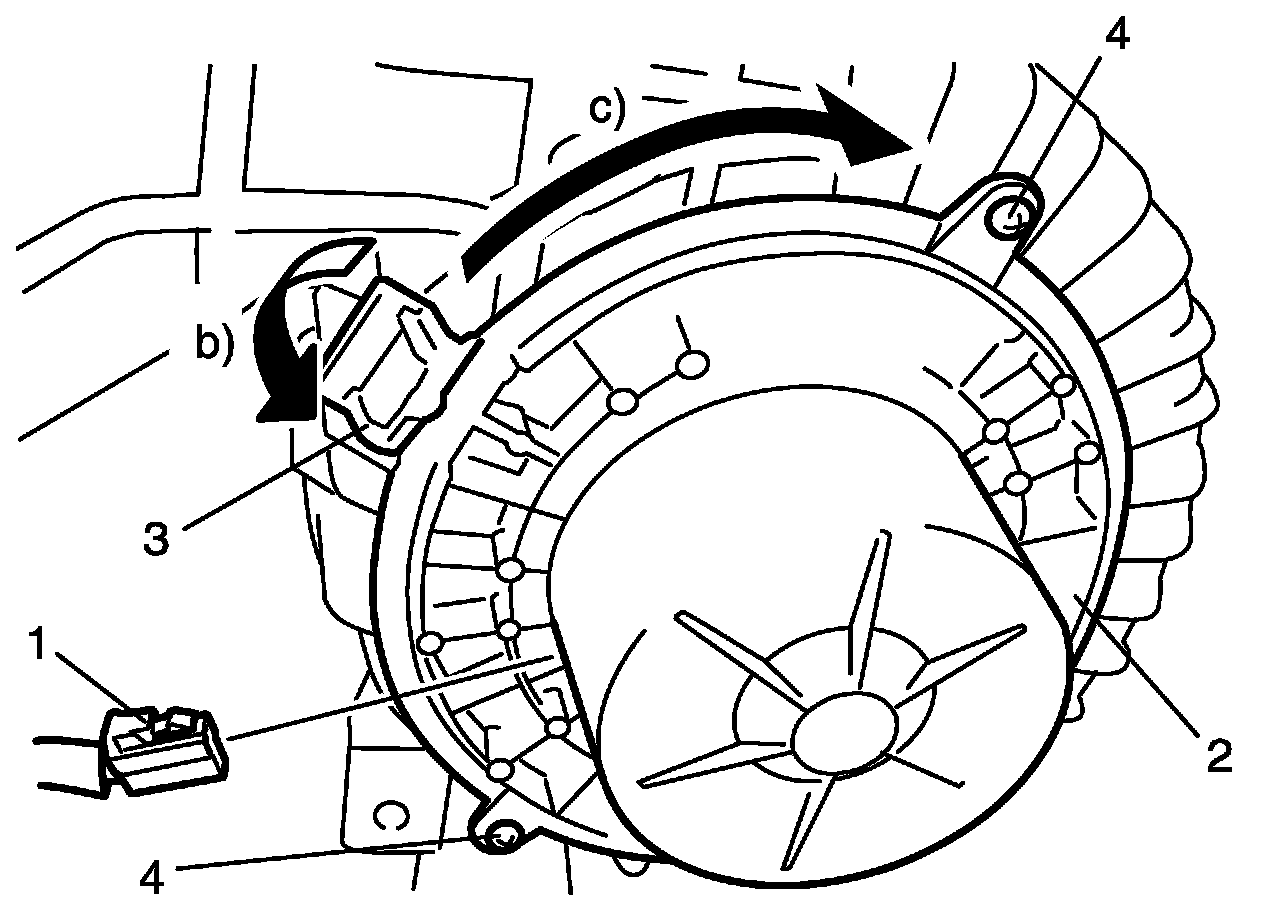

2. Disconnect connector (1) from blower motor (2).
3. Remove blower motor (2) from HVAC unit as follows.
a. Remove screws (4).
b. Release tub (3) to arrow direction.
c. Hold Step b and turn blower motor (2) to arrow direction.







Installation

Reverse removal procedure.
