Air Conditioning Switch: Testing and Inspection

A/C Switch, Air Flow Selector (Defroster Switch) and Air Intake Selector Inspection

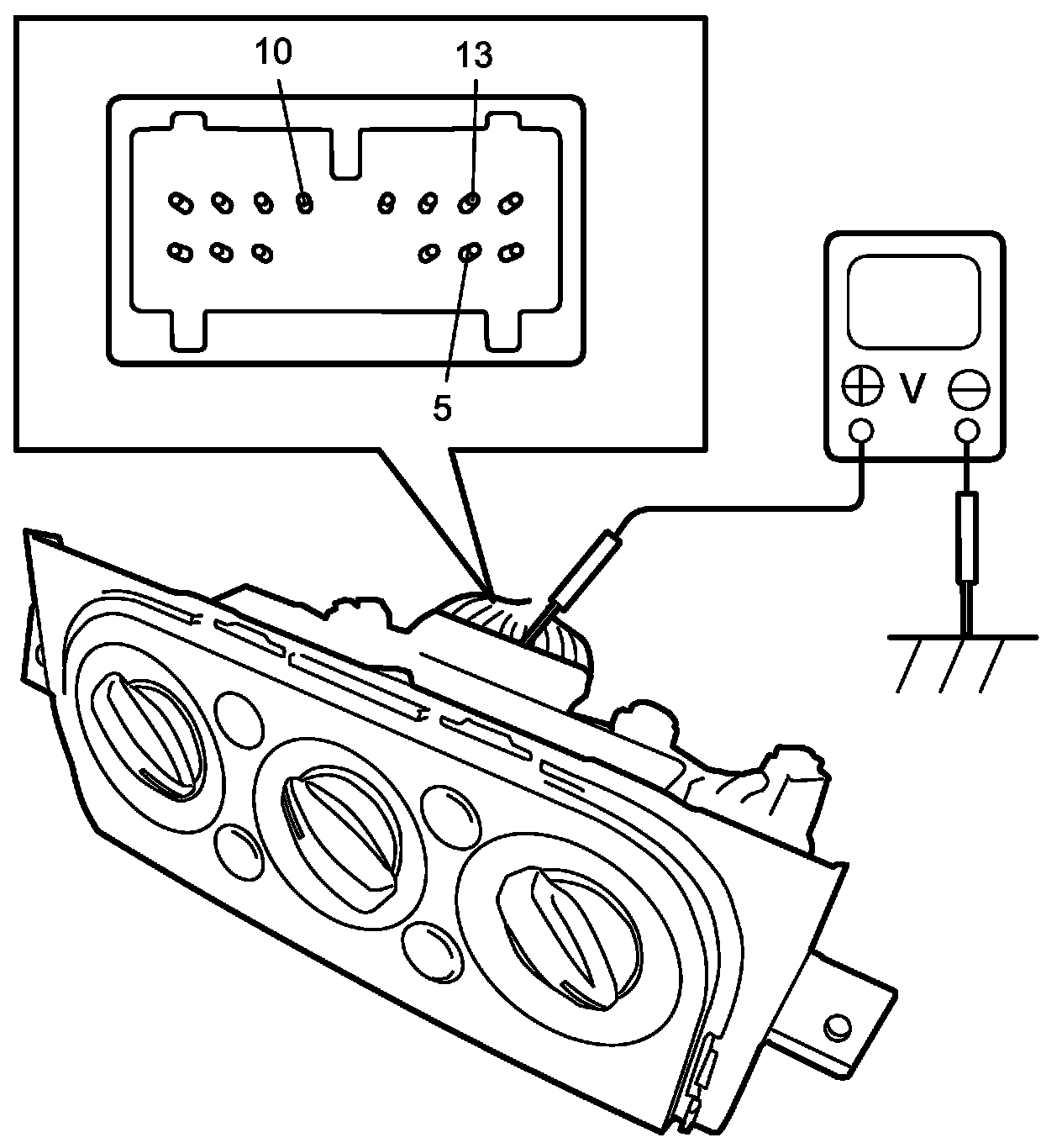

Check that the voltage between the following terminals and body ground are specifications under each conditions.
If check result does not meet the specified value, replace HVAC control unit.
