Timing Chain and Chain Tensioner Inspection

Timing Chain and Chain Tensioner Inspection
Reference: Timing Chain and Chain Tensioner Removal and Installation

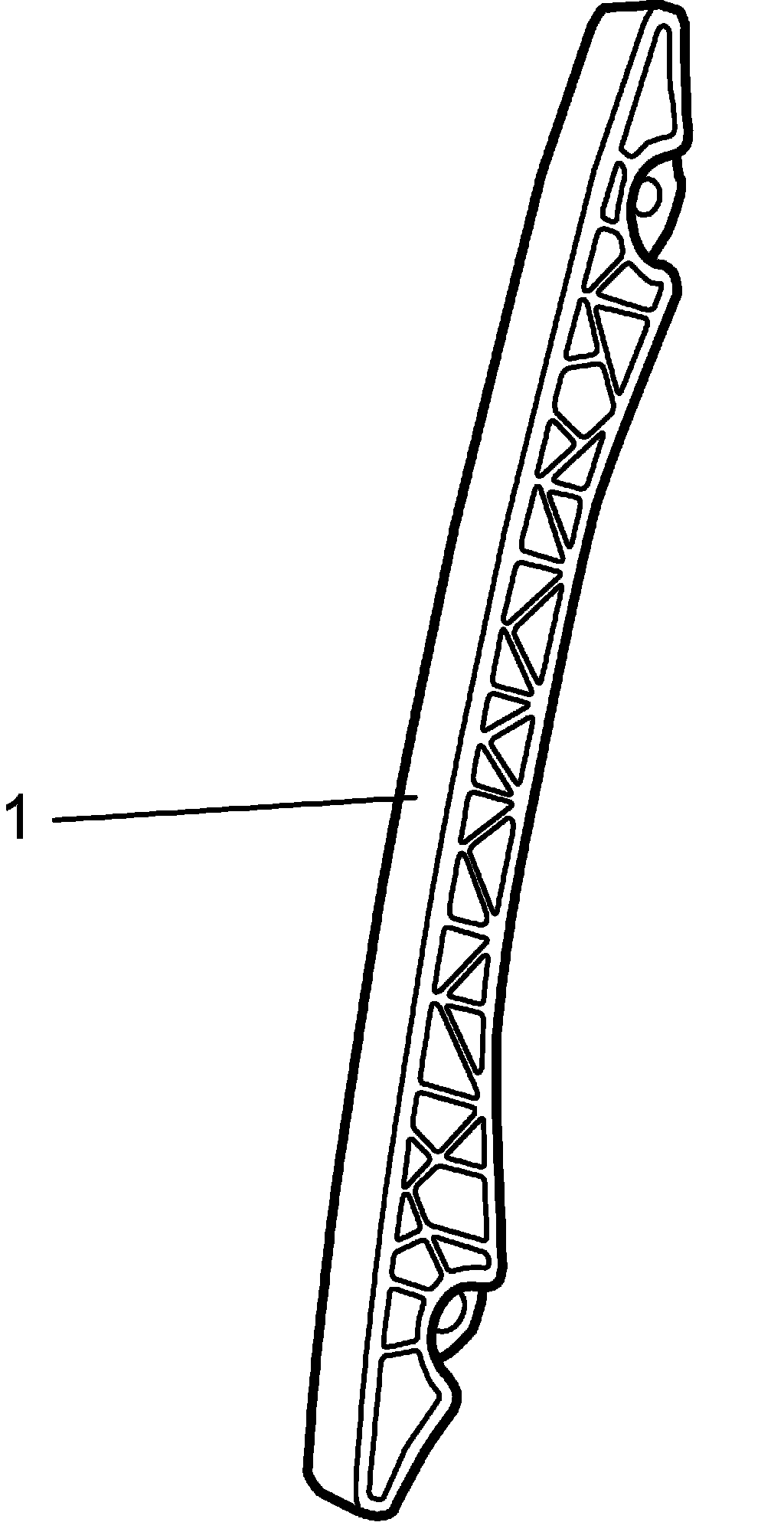

Timing Chain Guide
Check sliding surface of timing chain guide (1) for wear or damage.
If abnormality is found, replace timing chain guide.





Timing Chain Tensioner
Check sliding surface of timing chain tensioner (1) for wear or damage.
If abnormality is found, replace timing chain tensioner.

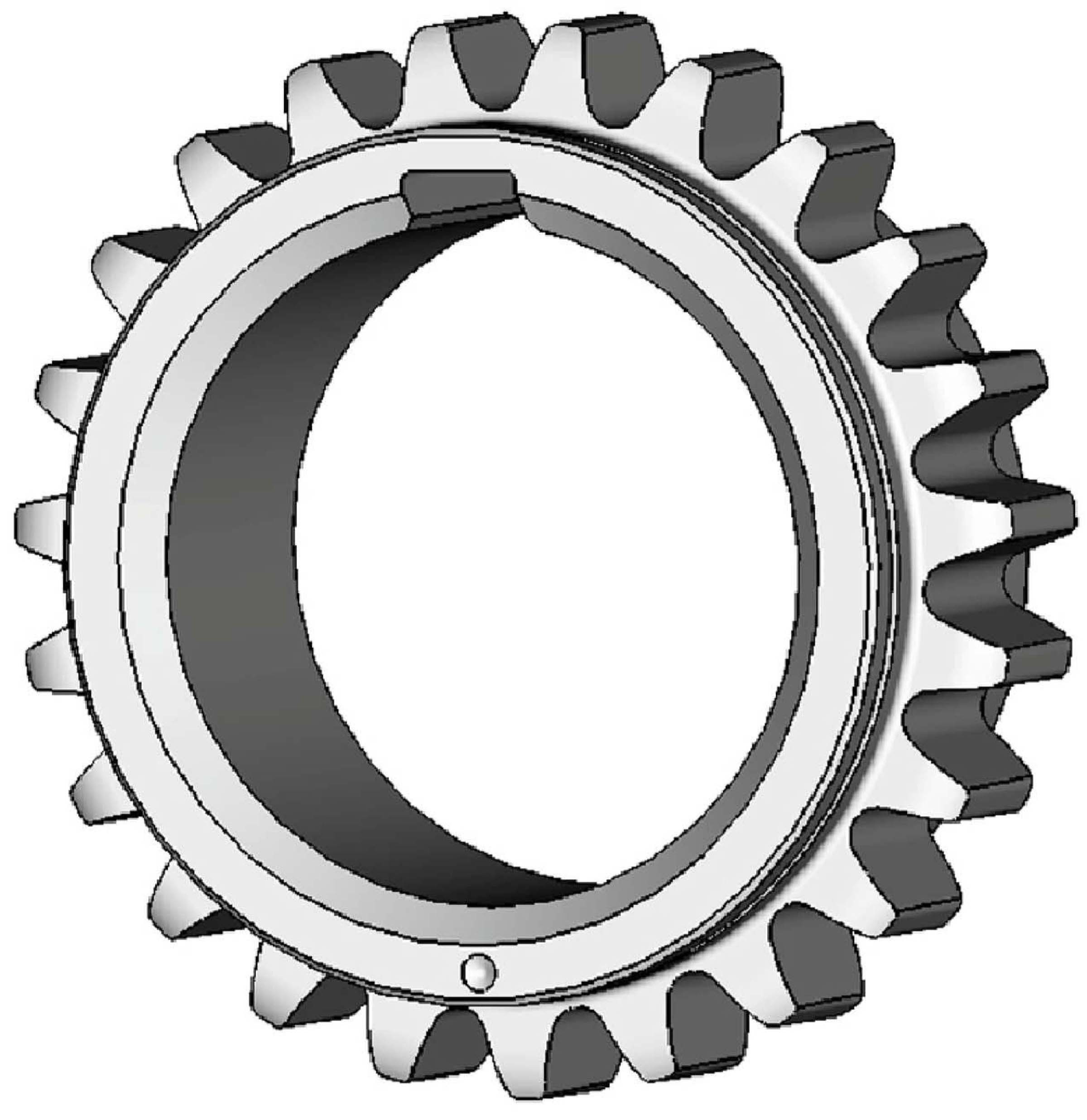

Crankshaft Timing Sprocket
Check sprocket teeth for wear or damage.
If abnormality is found, replace crankshaft timing sprocket.





Timing Chain
Check timing chain for wear or damage.
If abnormality is found, replace timing chain.

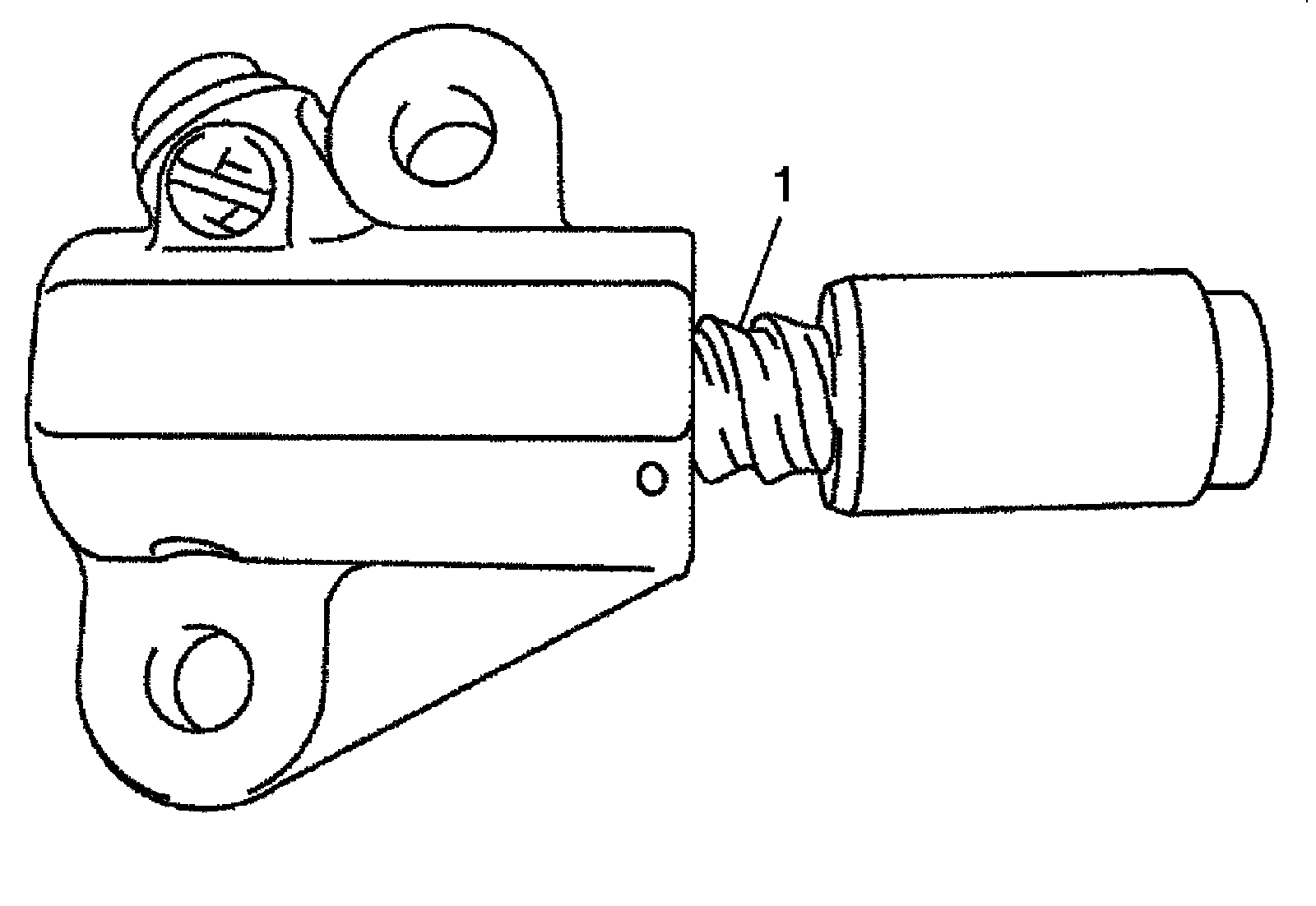

Timing Chain Tensioner Adjuster
Check that tooth surface (1) are free from damage.
If abnormality is found, replace timing chain tensioner adjuster.
