Oil Pump Drive Sprocket Inspection

Oil Pump Drive Sprocket Inspection

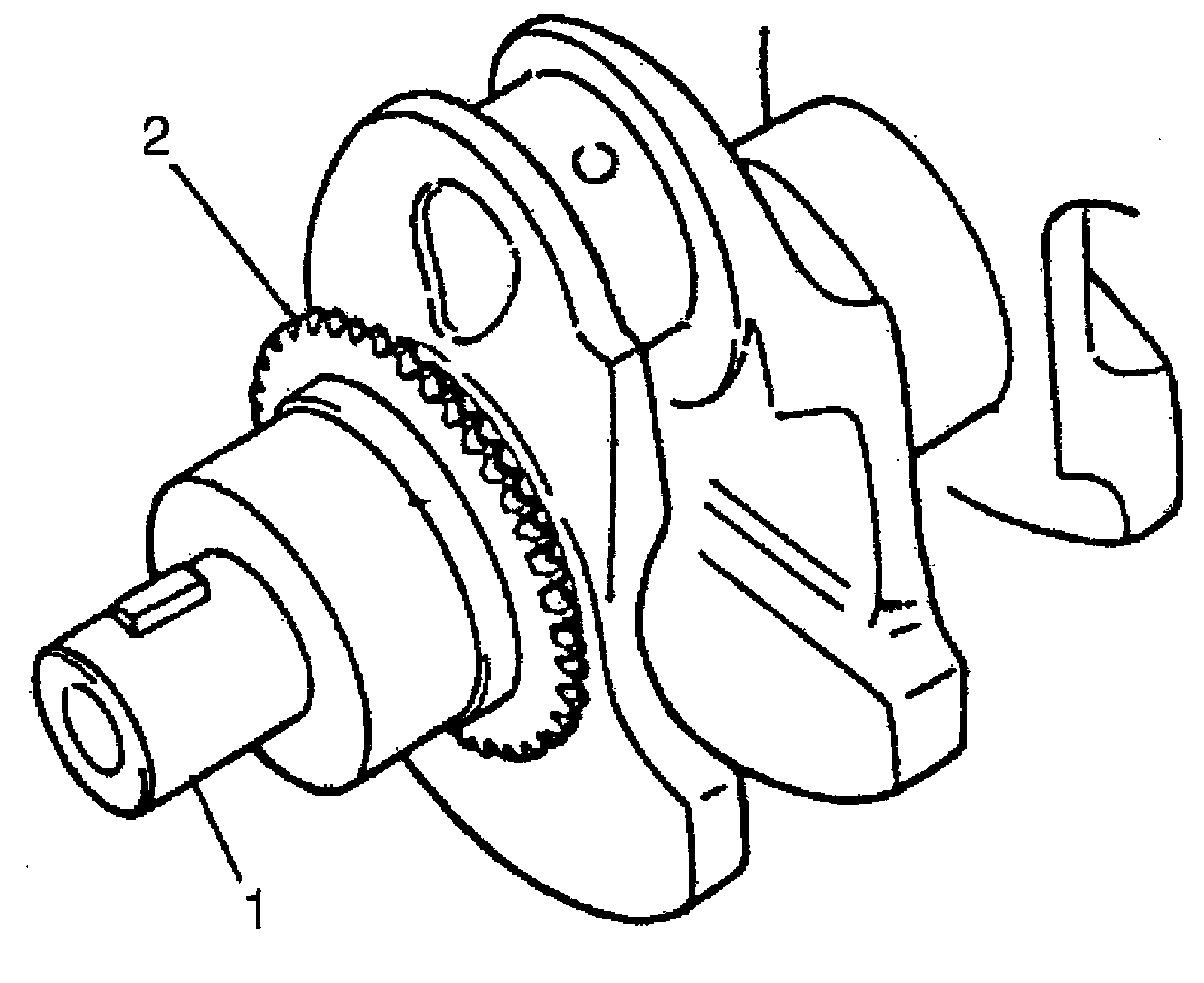

Check oil pump drive sprocket (2) for crack or any damage.
If defective condition is found, replace crankshaft (1).
