Power Steering System Circuit Diagram (Mexico Model)

Power Steering System Circuit Diagram (Mexico Model)

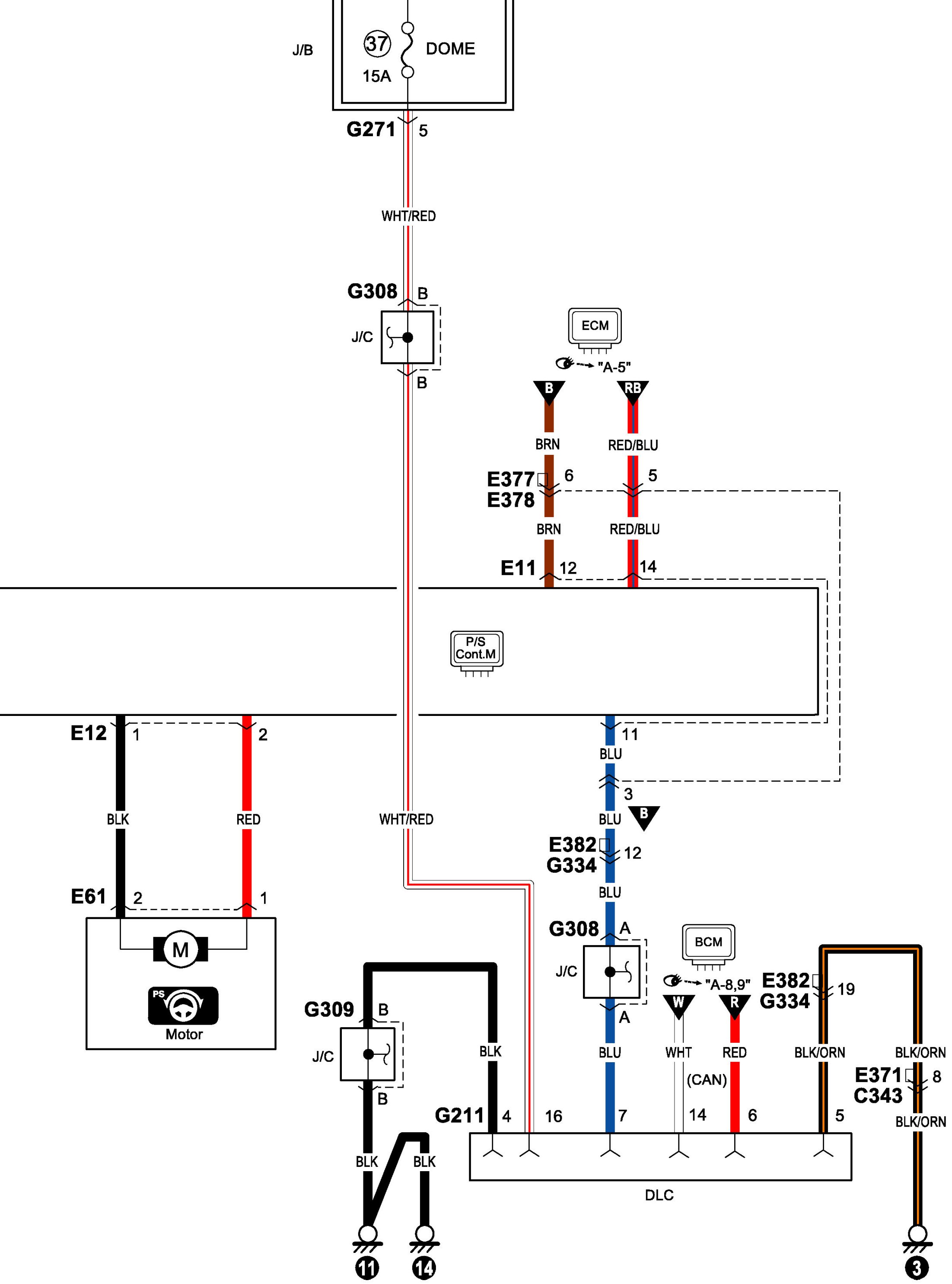

Power Steering System Circuit Diagram 1 (Mexico Model):

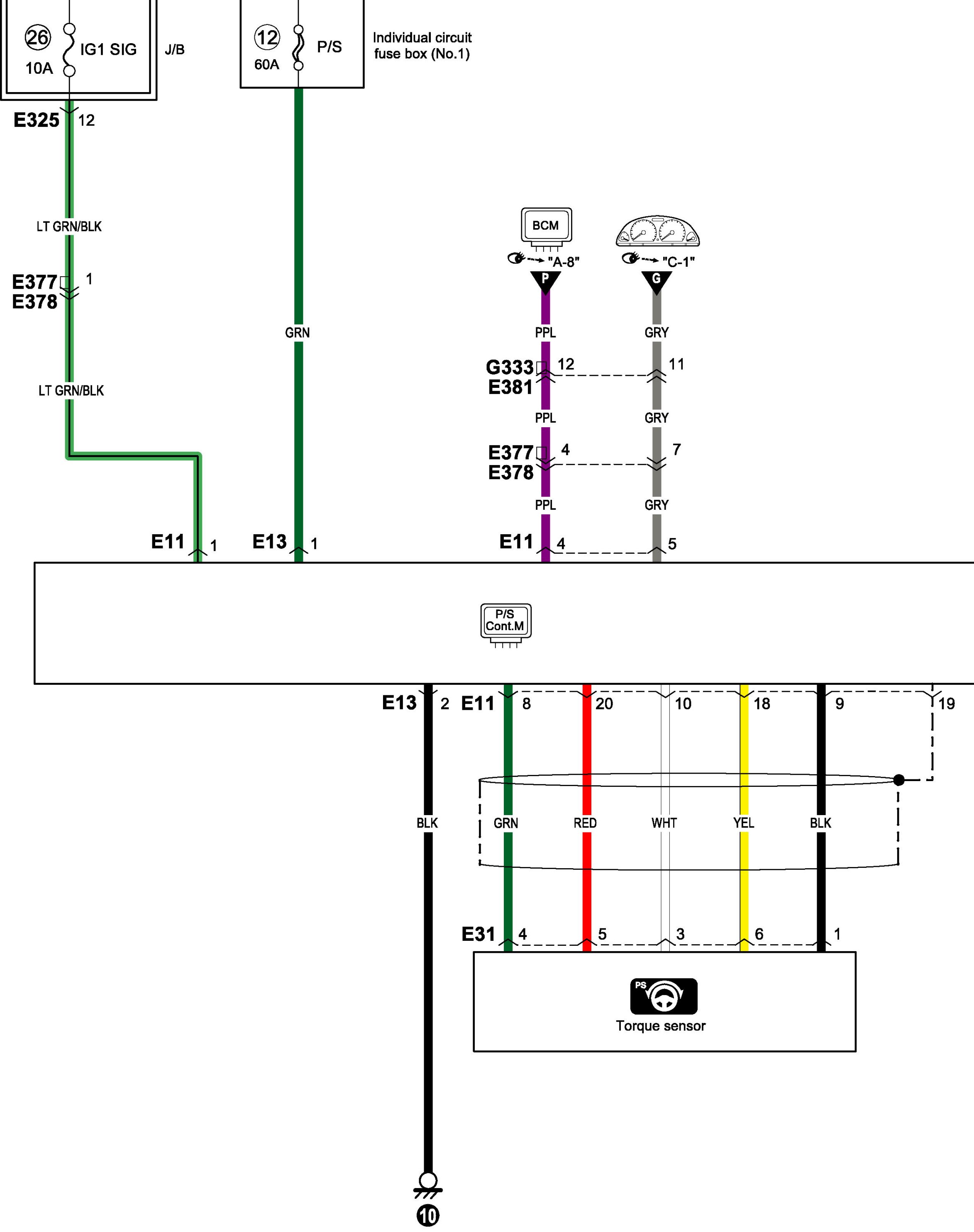

Power Steering System Circuit Diagram 2 (Mexico Model):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
