L Connectors
L Connector

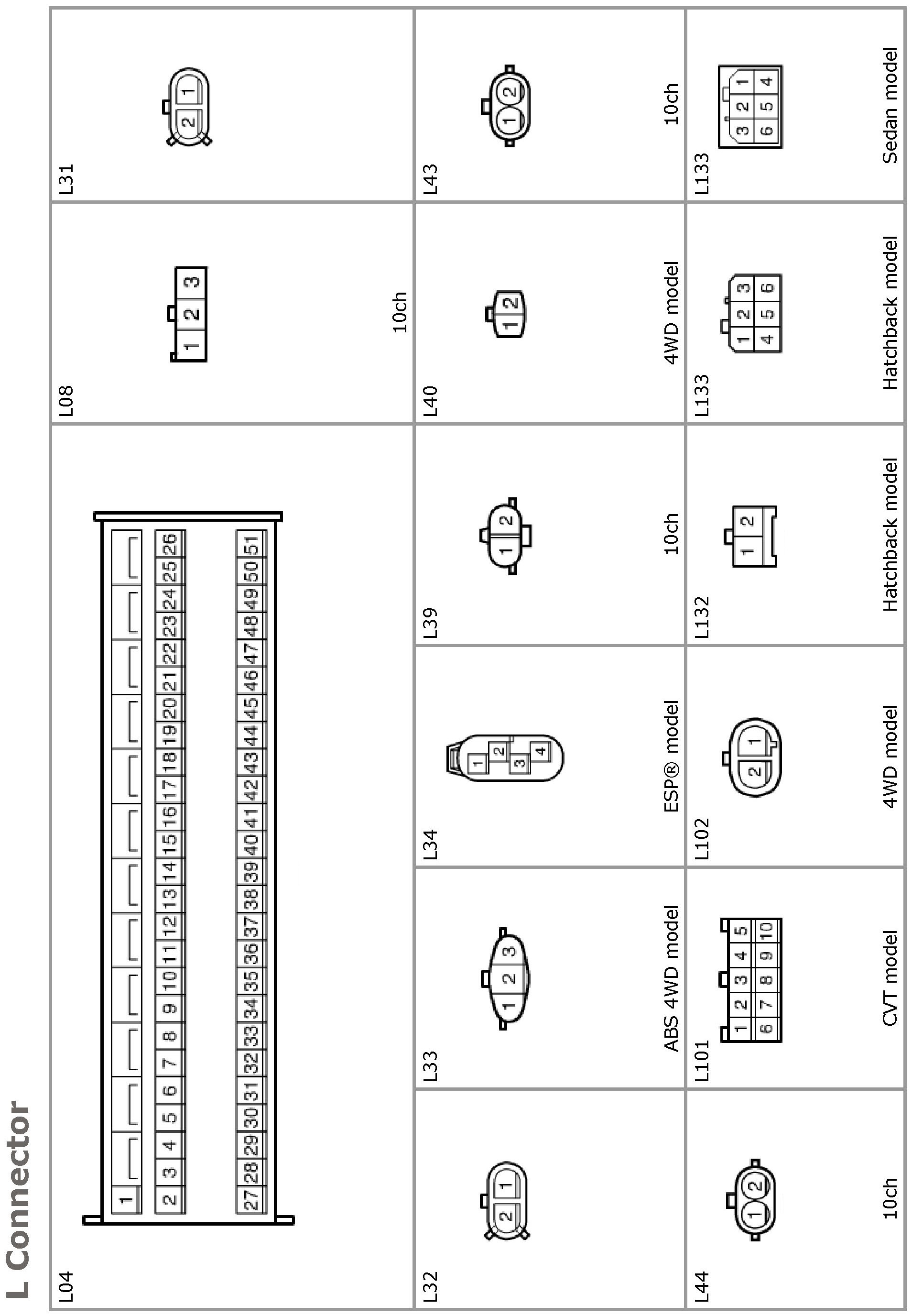

L04 - L133:

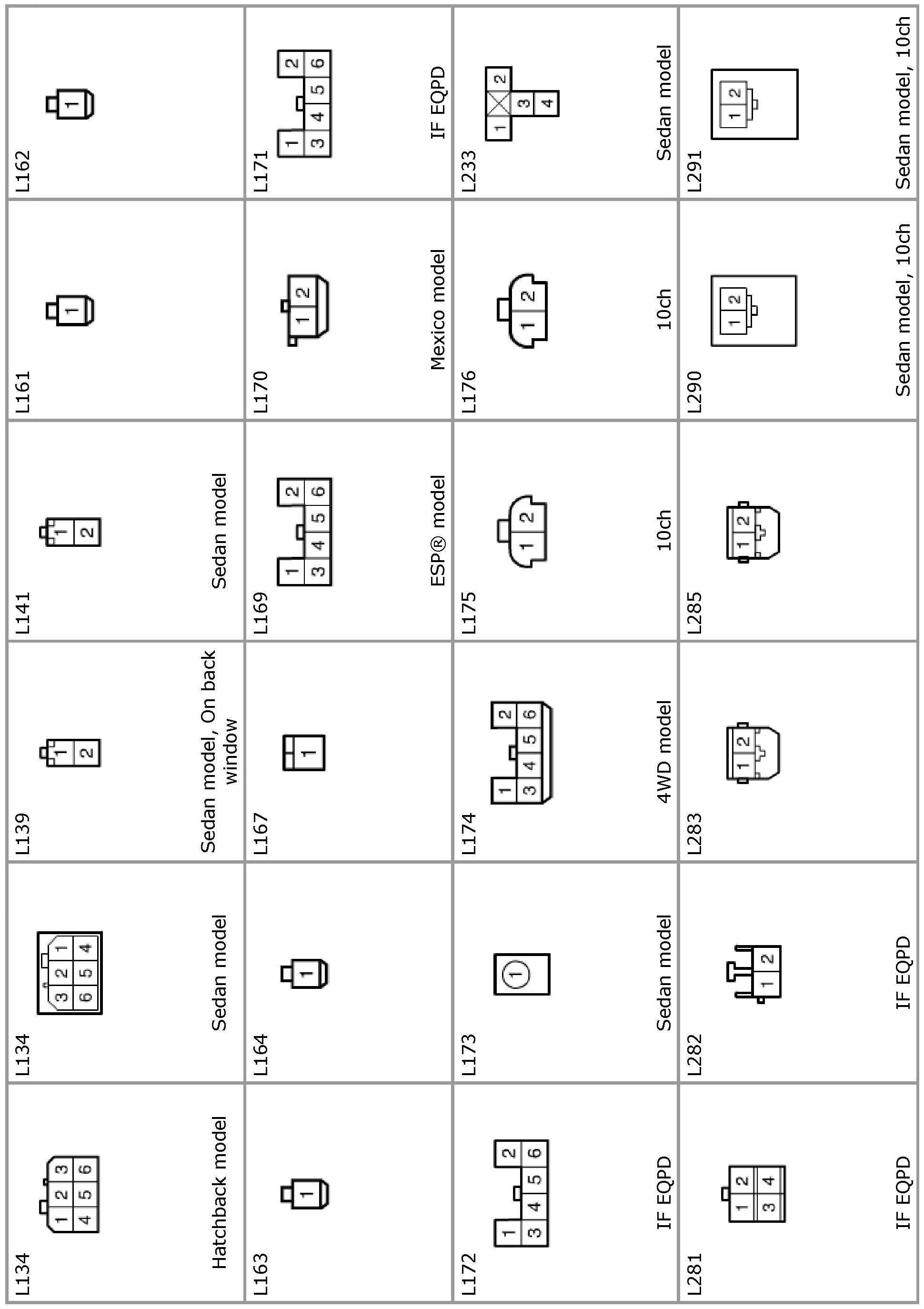

L134 - L291:

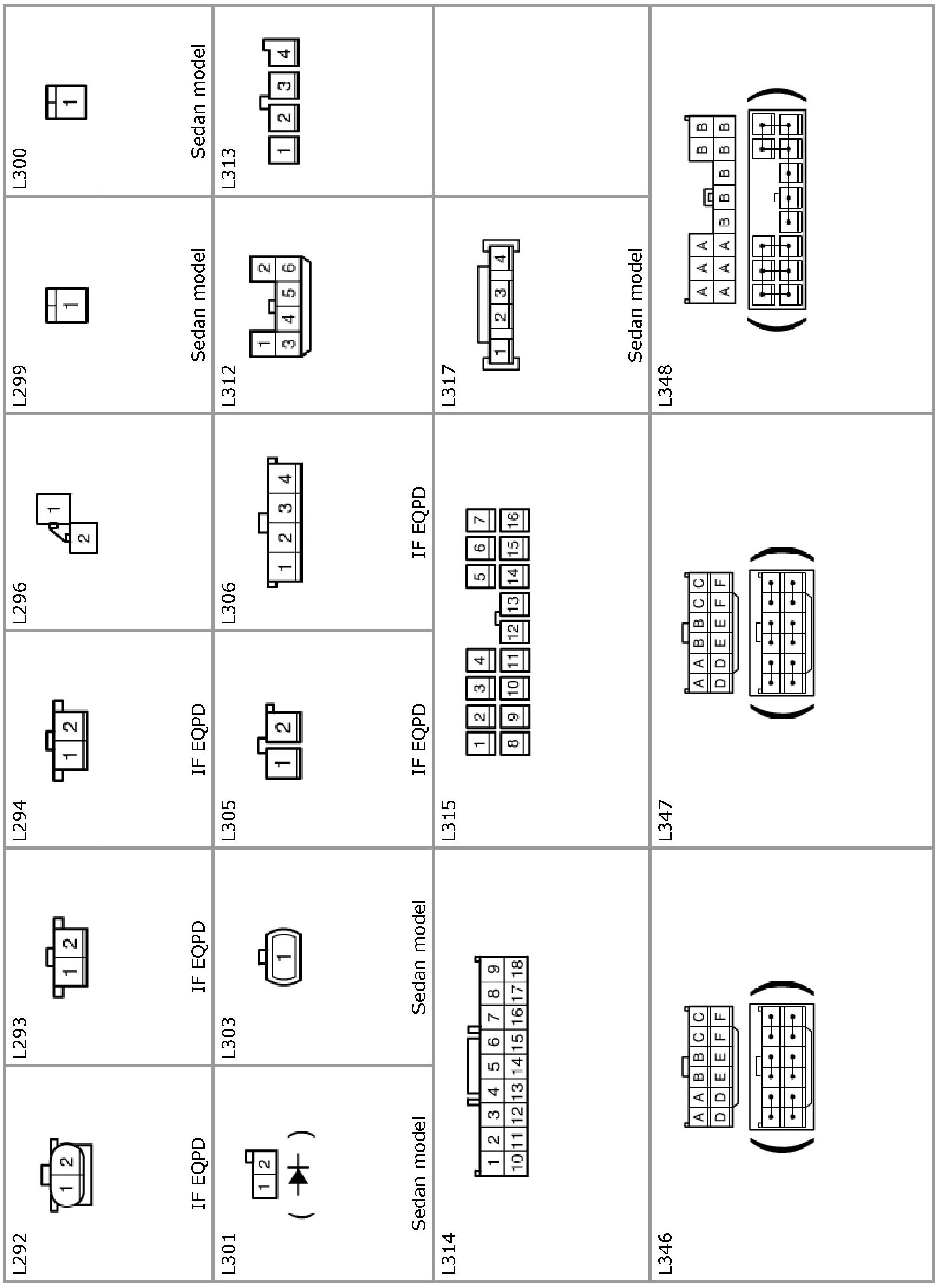

L292 - L348:

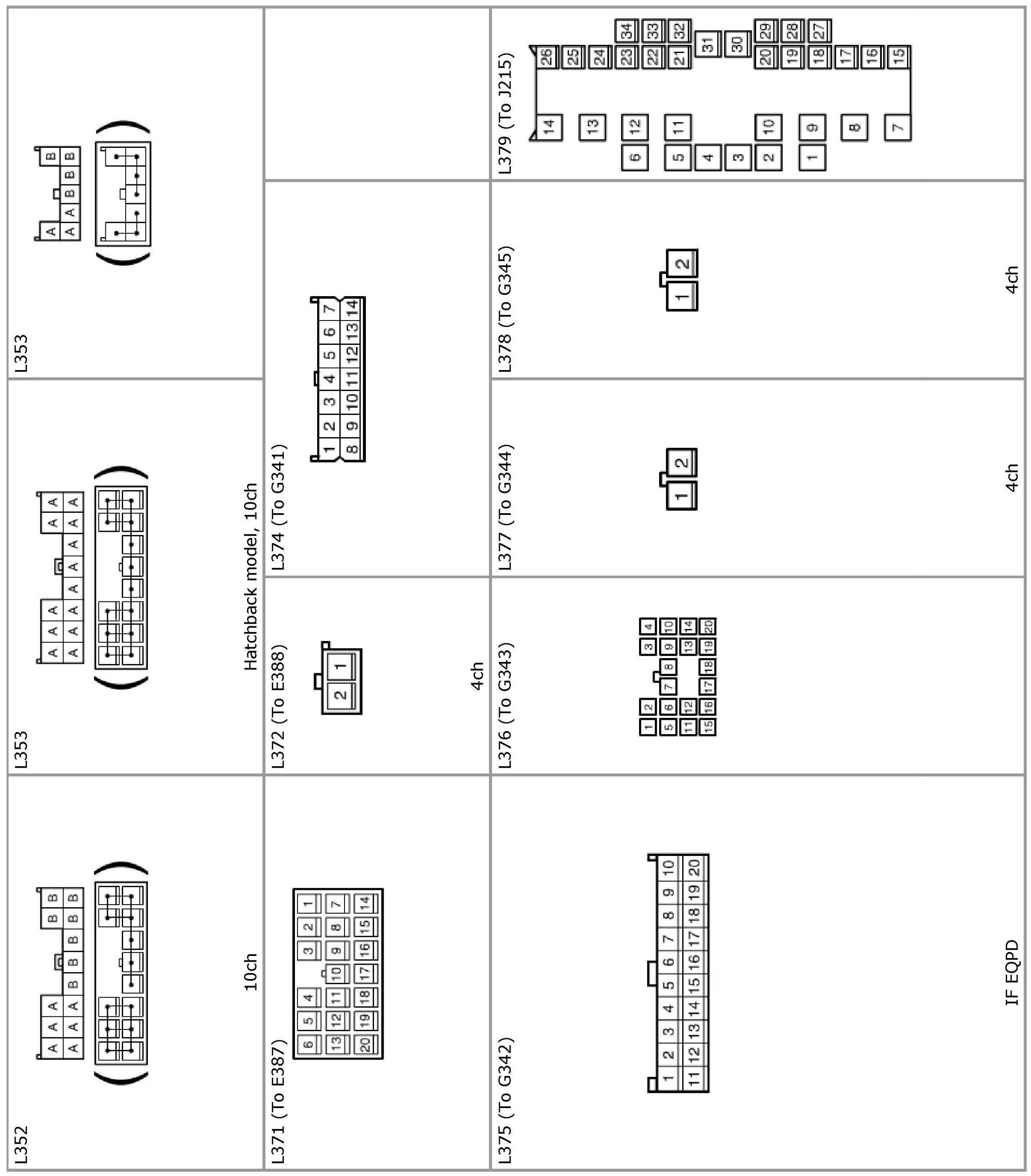

L352 - L379:

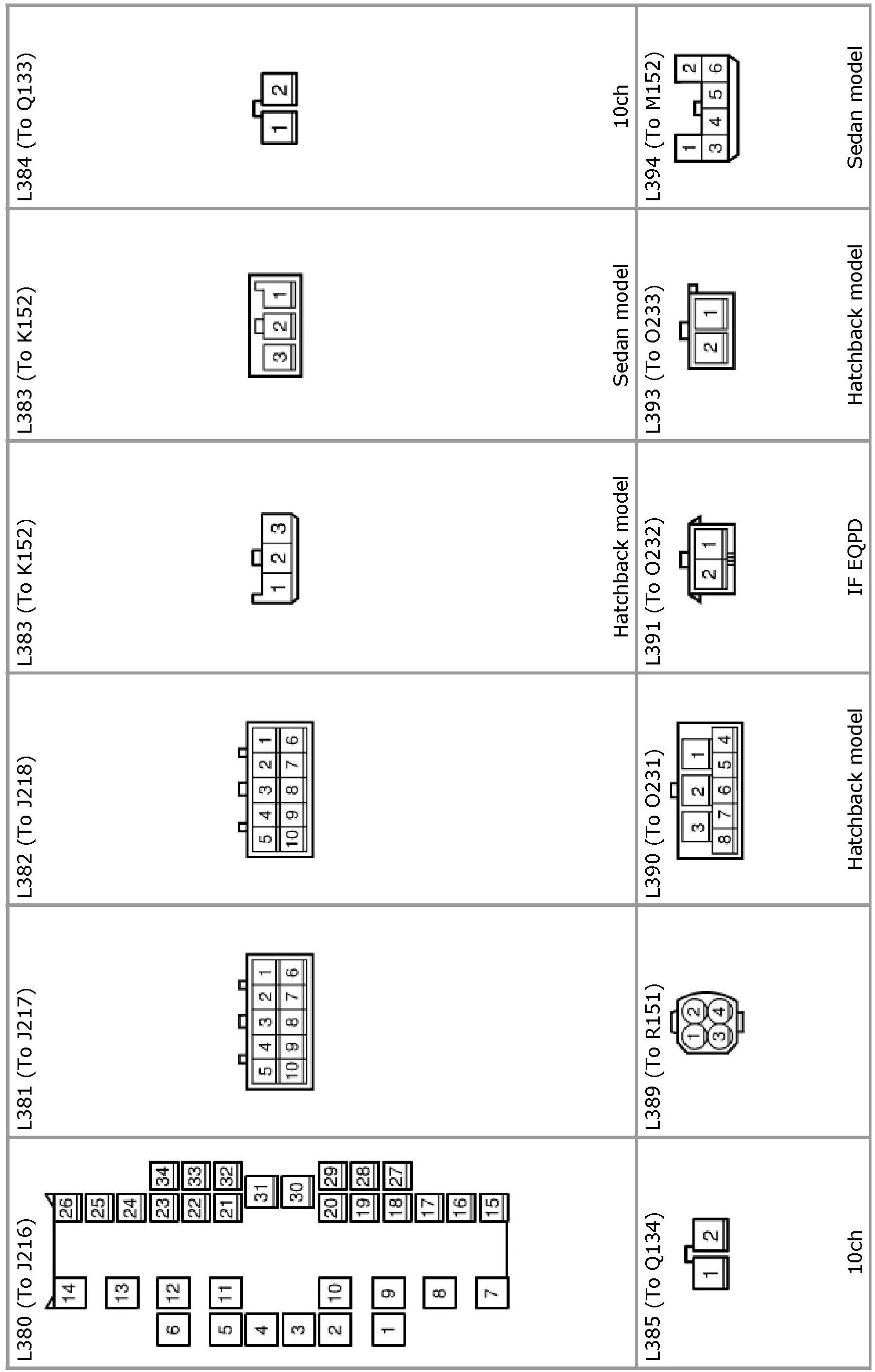

L380 - L394:

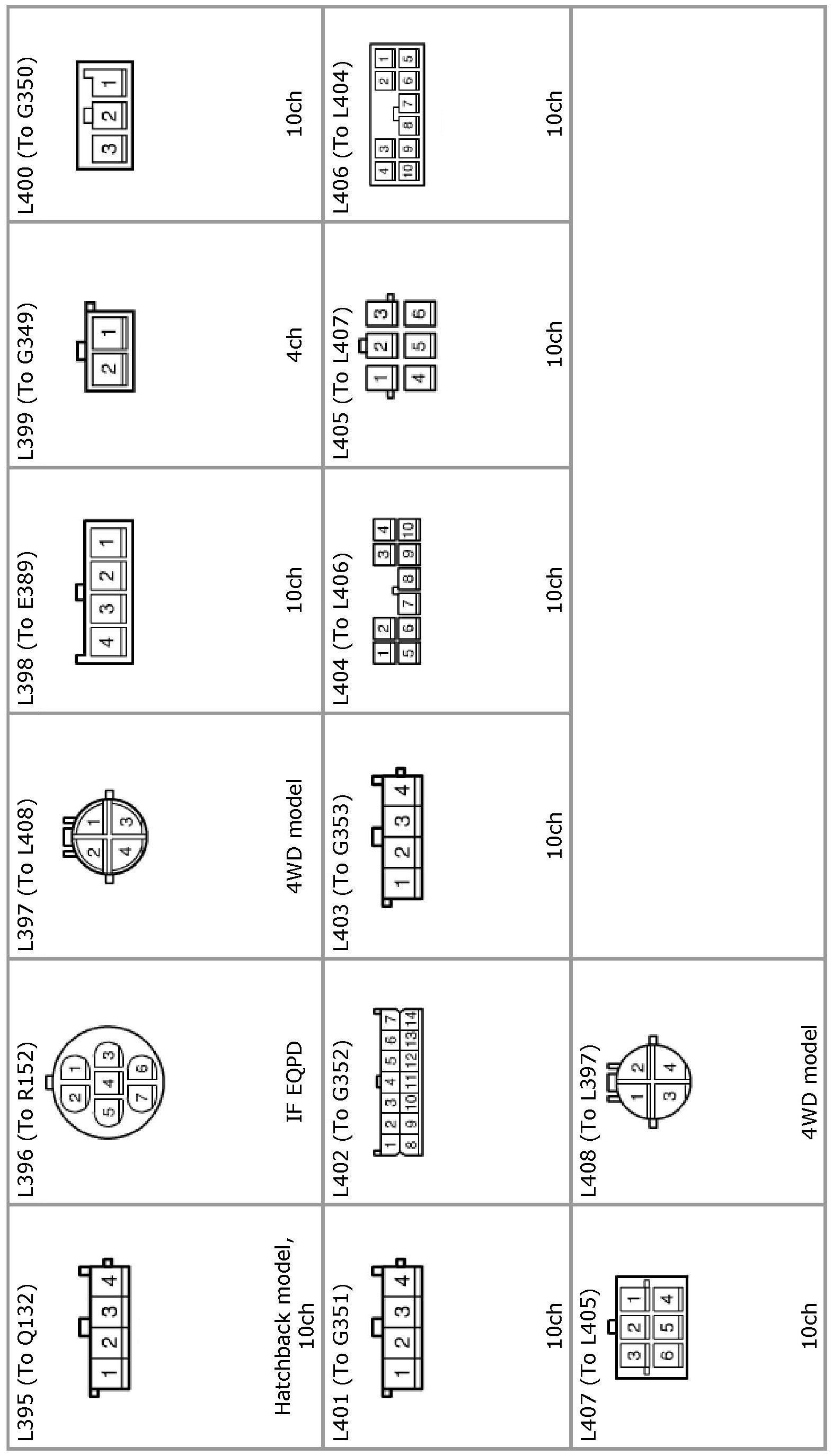

L395 - L408:
