Rear Disc Brake Caliper Check
Rear Disc Brake Caliper CheckNOTE:
Perform this check in the following case.
^ When replacing the brake pad with new one.
^ When checking the thickness of brake pad.
^ Before disassembling the brake caliper.
Caliper (body) and Carrier
Check brake caliper (body) and carrier for deformation, crack, damage and rust. If defective, replace brake caliper and carrier.
Cylinder Boot

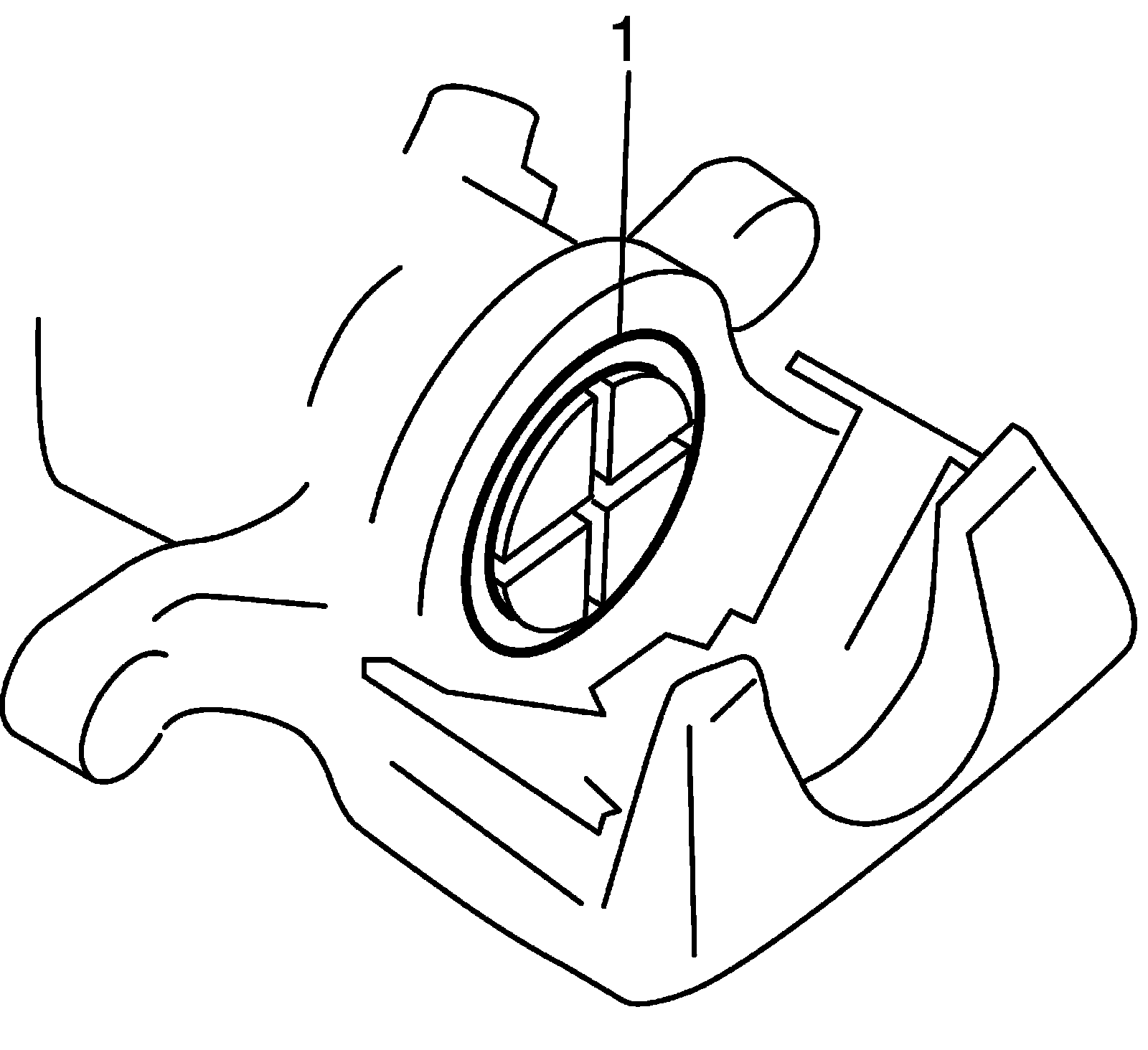

Check cylinder boot (1) for break, chap and brake fluid leak. If defective, overhaul or replace brake caliper.
Slide pin and Boot

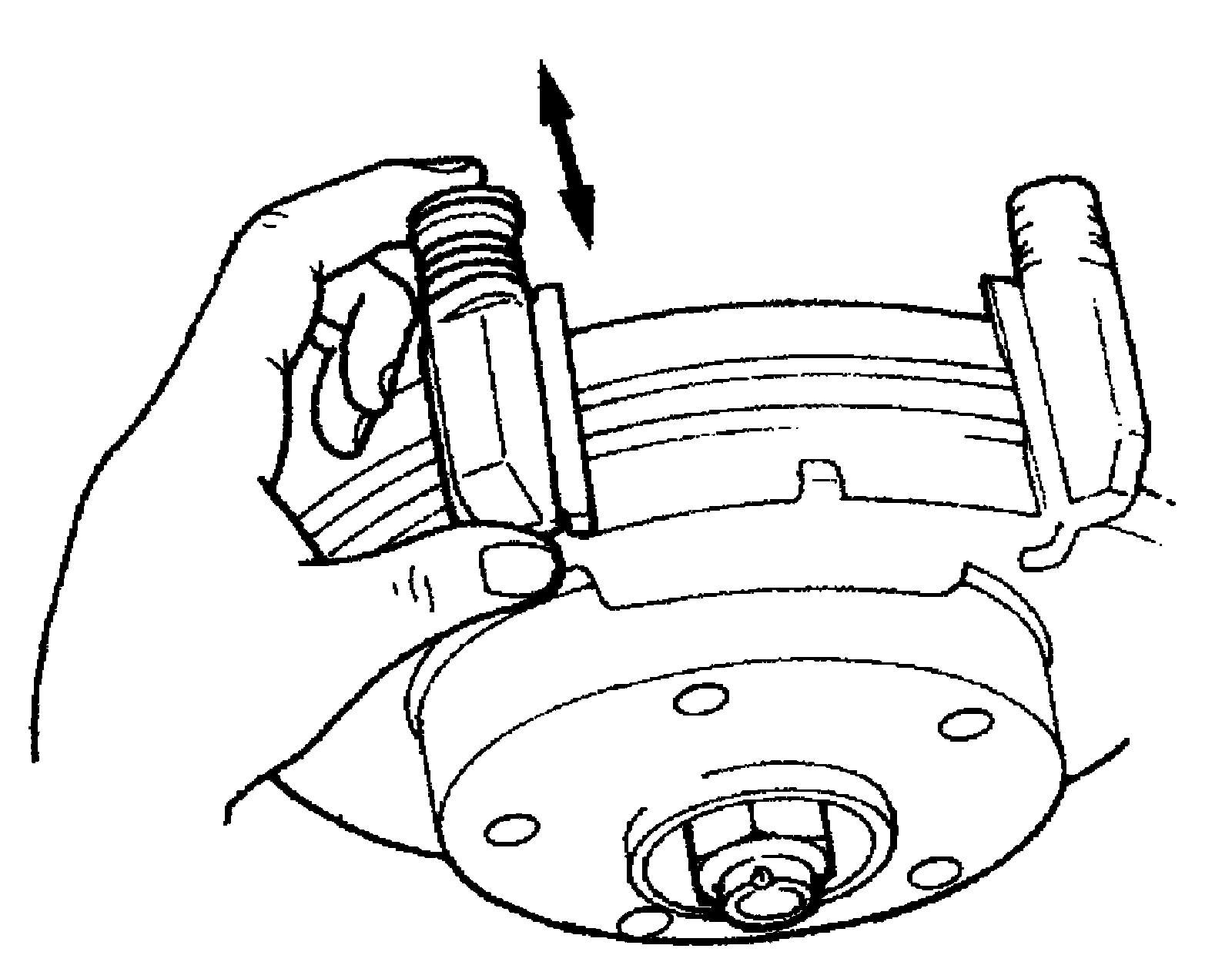

Before installing caliper to carrier, check for its smooth movement in thrust direction. If defective, replace slide pin and boot.
