Serial Data Link Circuit Check
Serial Data Link Circuit Check

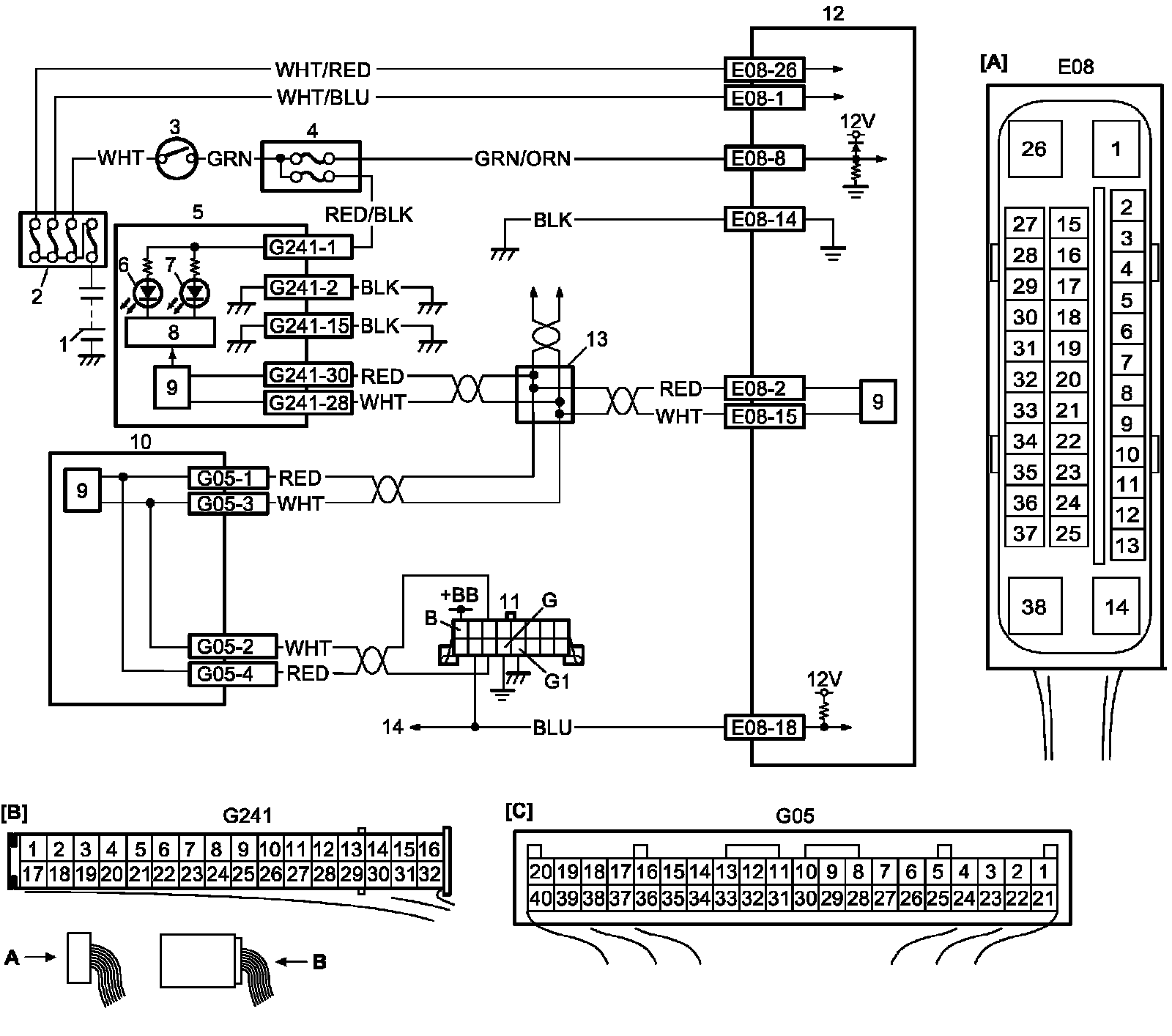

Wiring Diagram
Trouble shooting

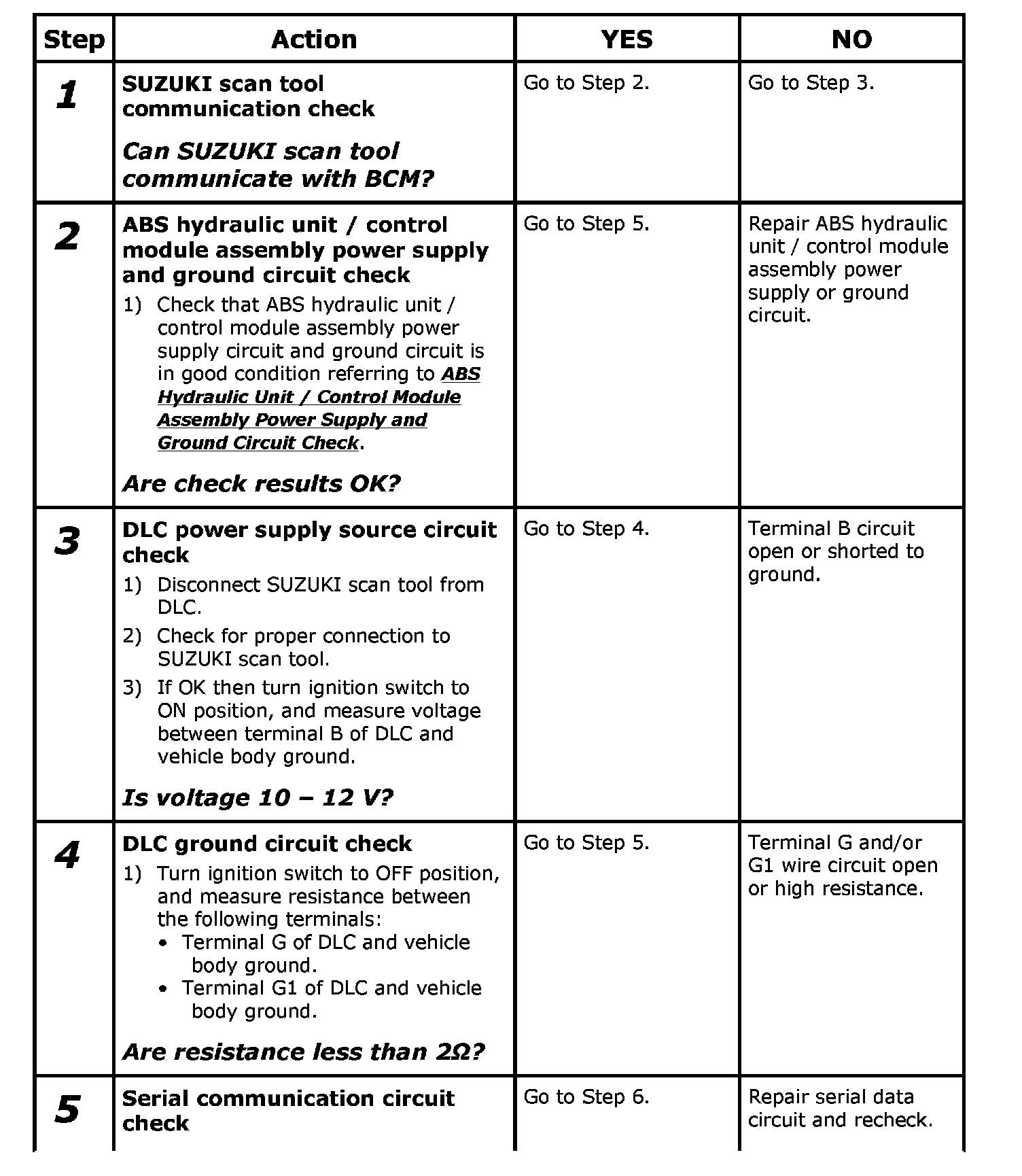

Step 1-5:

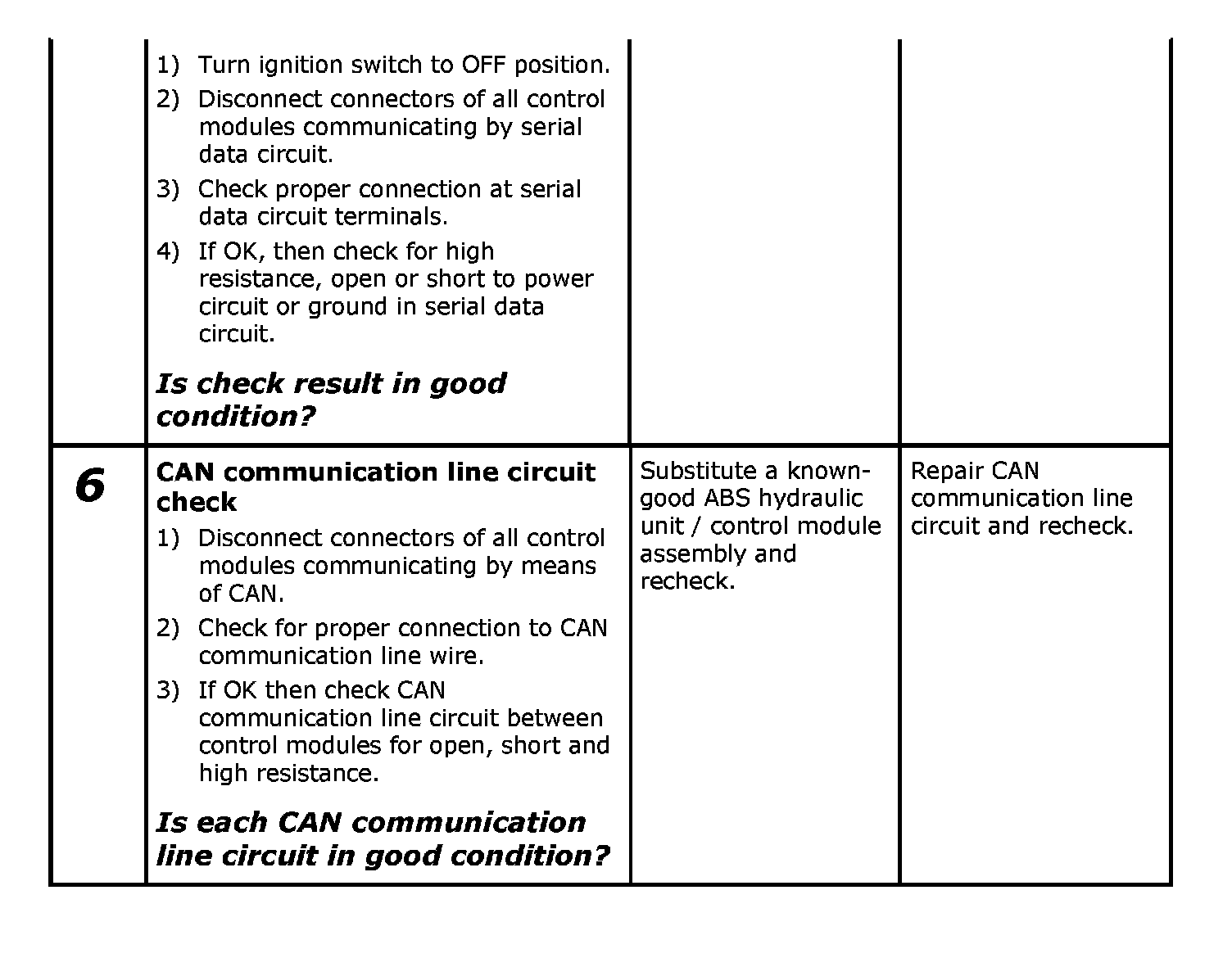

Step 5-6:
