DTC Check

DTC Check
1) Turn ignition switch to OFF position.

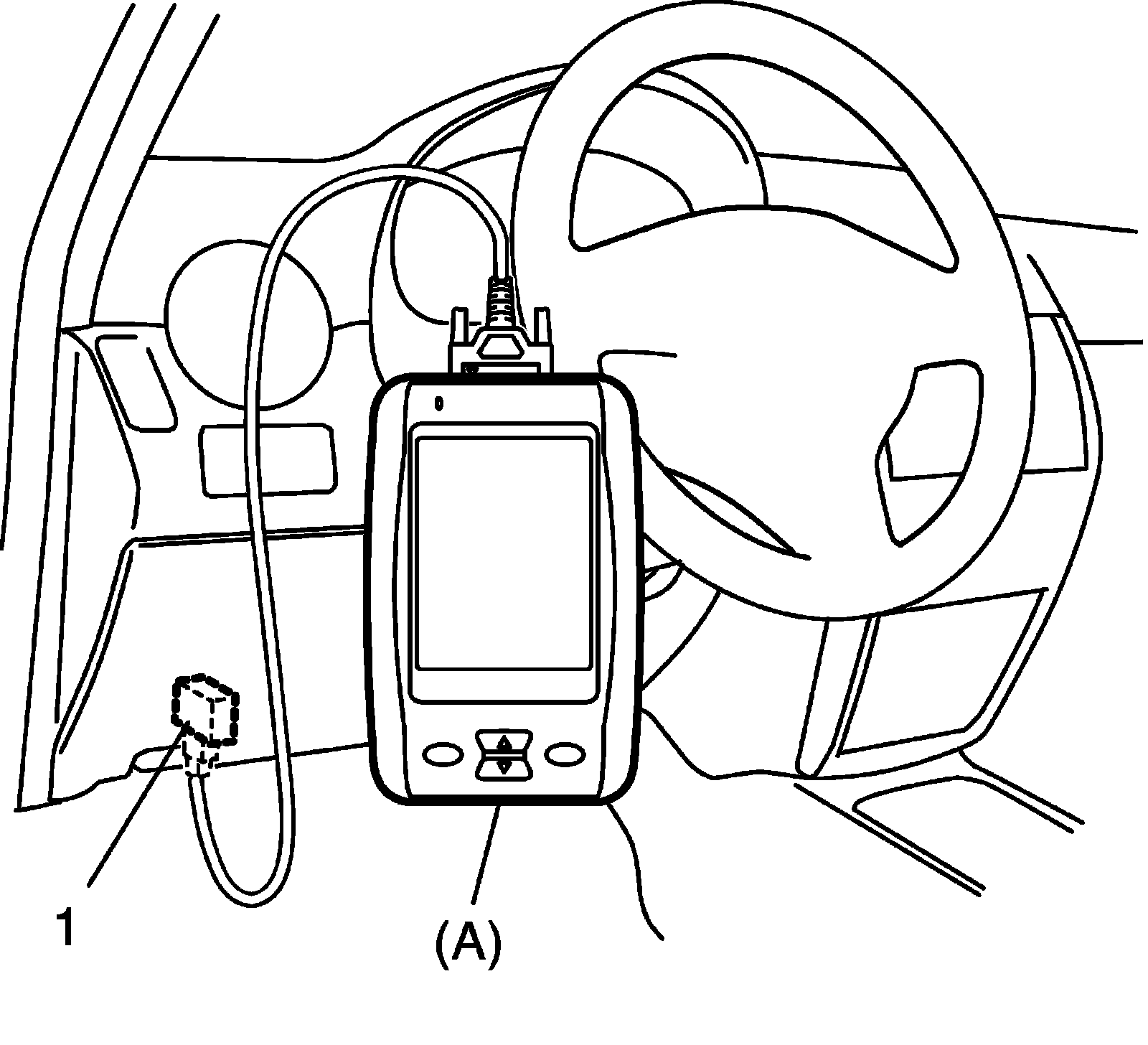

2) Connect SUZUKI scan tool to DLC (1).
Special Tool
(A): SUZUKI scan tool (SUZUKI-SDT)





3) Turn ignition switch to ON position.
4) Read DTC according to instructions displayed on SUZUKI scan tool and print it or write it down.

NOTE:
If SUZUKI scan tool can not communicate ABS hydraulic unit / control module, perform Serial Data Link Circuit Check.

5) After completing the check, turn ignition switch off and disconnect SUZUKI scan tool from DLC.
